R&S Technical Information R&S CMU-B17
1100.4903.12 TI.2 E-3
Contents
BLOCK DIAGRAM.................................................................................................................................... 2
FUNCTIONALITY...................................................................................................................................... 3
APPLICATIONS ........................................................................................................................................ 6
ORDERING INFORMATION..................................................................................................................... 8
ANNEX 1: SIGNAL PATHS R&S CMU200 INCL. R&S CMU-B17 .......................................................... 9
ANNEX 2: ASSIGNMENT OF IQ / IF CONNECTORS ON R&S CMU REAR PANEL........................... 10
ANNEX 3: LOCATION OF R&S CMU-B17 CONNECTORS ON REAR PANEL ................................... 11
ANNEX 4: SPECIFICATION ................................................................................................................... 12

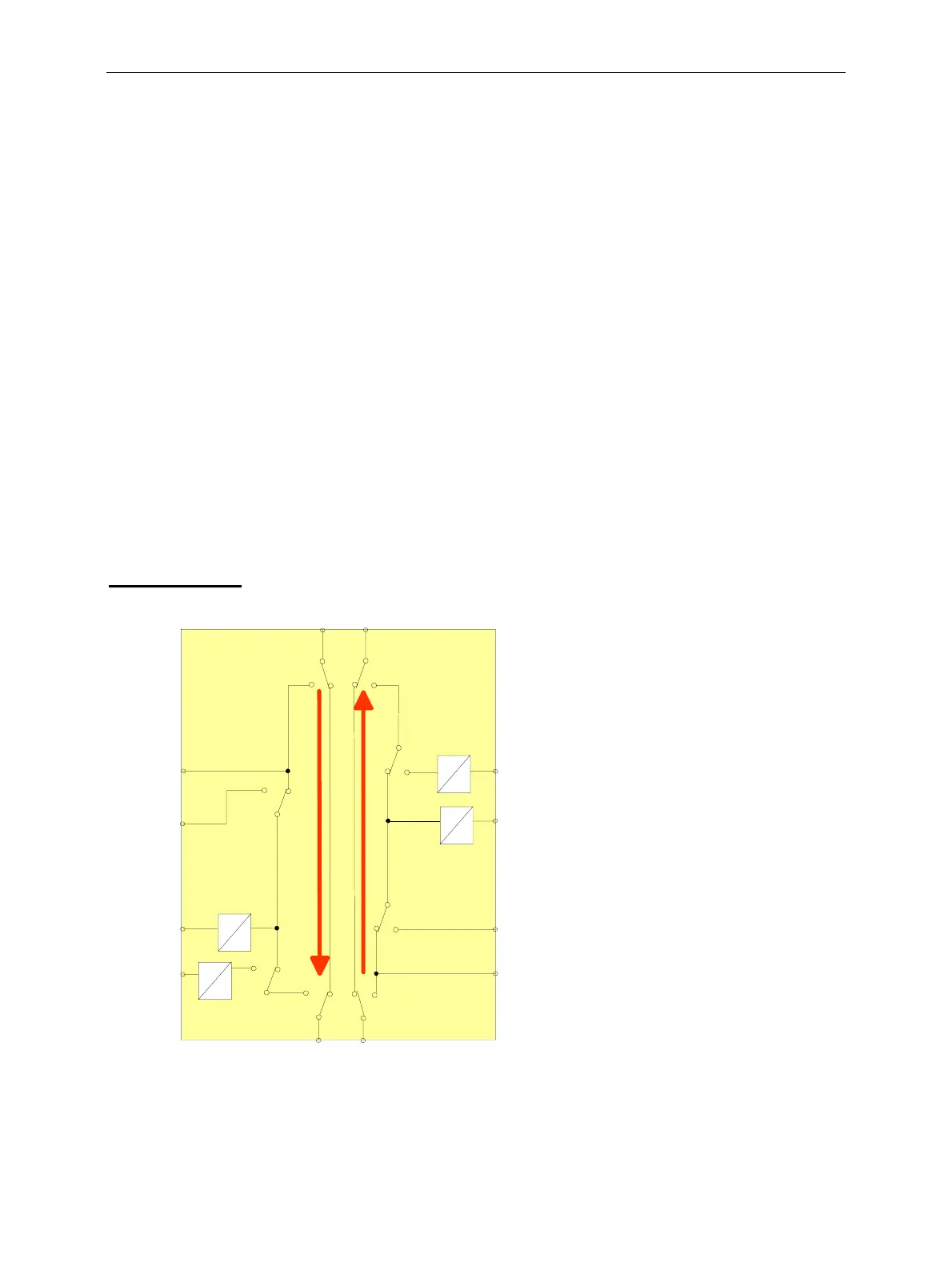

Block diagram
Option R&S CMU-B17 provides
separate access to IF / IQ
signals on R&S CMU200
receiver (RX) and transmitter
(TX) paths (pls. see also annex
1). The functionality is applicable
for Signalling and Non Signalling
measurement modes. The
insertion of option R&S CMU-
B17 in bypass mode does not
cause any influence to signals;
i.e. the additional insertion loss of
R&S CMU-B17 will be
considered during mandatory
calibration procedure after
installation.
IQ
IF
IQ
IF
to RF Unit
to Digital Unit
IQ
IF
IQ OUT
IQ OUT
IQ
IF
IQ IN
IQ IN
IF IN
IF IN
IF OUT
IF OUT
Bypass
RX path
TX path
CMU-B17
IF
IF
(rear panel
I/Q CH1)
(rear panel
I/Q CH1)
(rear panel
IF3 TX CH1 IN)
(rear panel
IF3 TX CH1 OUT)
(rear panel
IF3 RX CH1 IN)
(rear panel
IF3 RX CH1 OUT)
