RF: Analyzer/Generator Menu CMU
1100.4903.12 4.38 E-10
Analyzer/Generator Configuration
The popup menu Analyzer/Generator Configuration configures the RF analyzer measurements. It is
opened by pressing the Analyzer Power measurement control softkey in the Analyzer/Generator menu
twice.
In the Control tab of the Analyzer/Generator Configuration menu both power measurement applications
of the Analyzer/Generator menu can be configured independently. The tab defines:
The center Frequency of the RF analyzer
The Repetition mode
The Statistic Count for the measurement (for the Power Meter Freq. Sel. measurement only)
The Resolution Bandwidth of the measurement filter

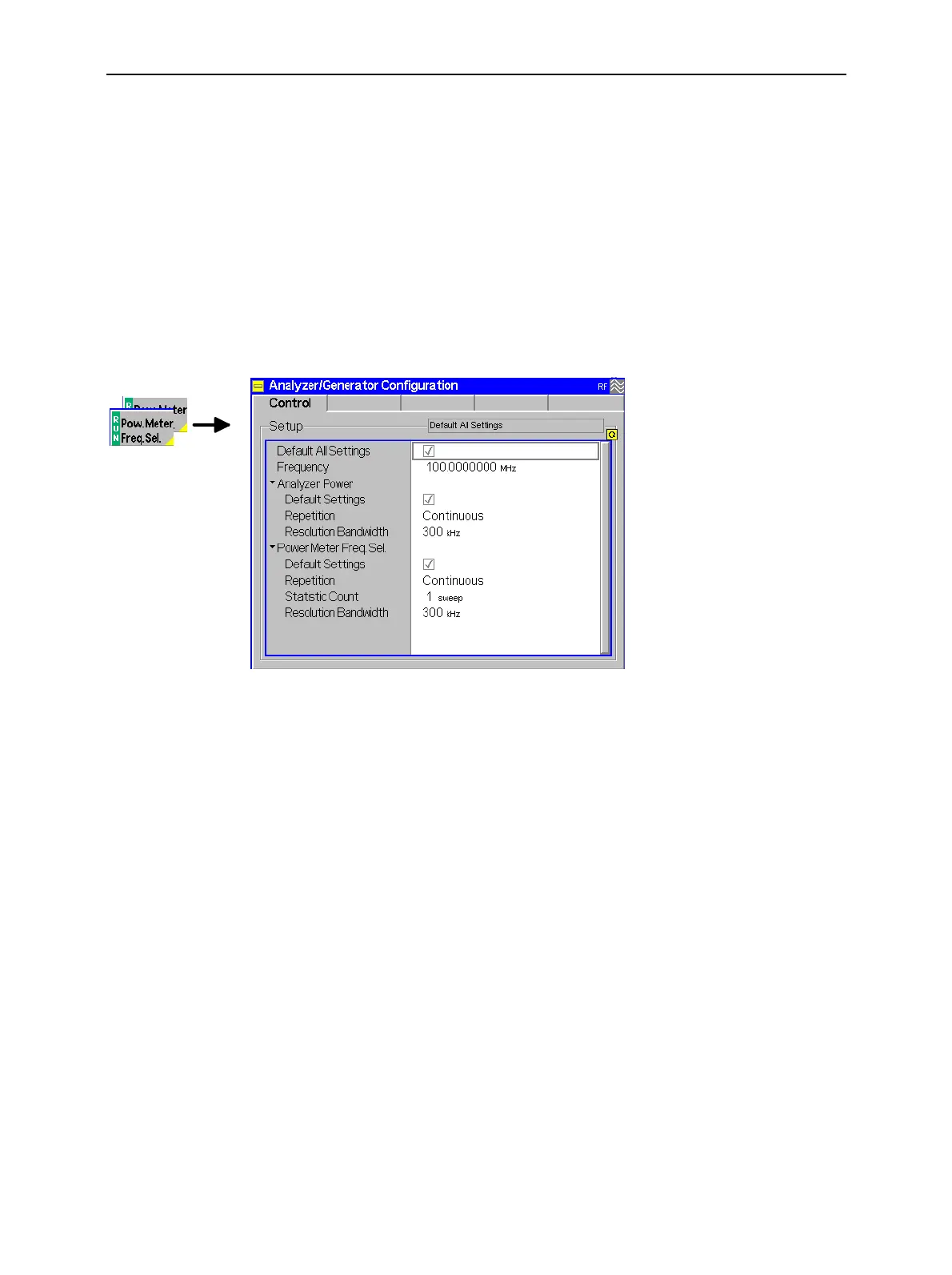

Fig. 4-20 Analyzer/Generator Configuration – Control
Default Settings
The Default All Settings switch assigns default values to all settings in the Control
tab (the default values are quoted in the command description in chapter 6 of this
manual). In addition, default switches for the individual applications are provided.
Remote control
–
Frequency
Frequency defines the center frequency of the RF analyzer. This setting is valid for
both Analyzer/Generator measurement applications.
Remote control
[SENSe:]RFANalyzer:FREQuency <Frequency>
Resolution
Bandwidth
Resolution Bandwidth defines the resolution bandwidth of the analyzer. The nomi-
nal resolution bandwidth is the 3-dB bandwidth of the measurement filter. The
bandwidths available depend on the measurement application:
For both applications, a list of Gaussian filters with discrete bandwidths between
10 Hz and 1 MHz is available. The frequencies in the list are given by 1x10
n
Hz,
2x10
n
Hz, 3x10
n
Hz, 5x10
n
Hz where n=1 to 5. In addition the value 1 MHz is
provided.
To Next Page
