CMU Popup Menu Setup
1100.4903.12 4.13 E-10
COM 2
The COM 2 section defines the transmission parameters for the serial interface
COM 2. The parameters are analogous to the COM 1 parameters.
Remote control
SYSTem:COMMunicate:SERial2:APPLication
SYSTem:COMMunicate:SERial2:TRANsmit:PACE... etc.
Enabling Options (Setup – Options)
The option menu (Setup Options) provides information on the type of instrument and the installed
options, equipment and firmware versions (Software Options, Hardware Options, Hardware Equipment,
Firmware Versions). New software options purchased can be enabled in this menu using a code
number.
SETUP

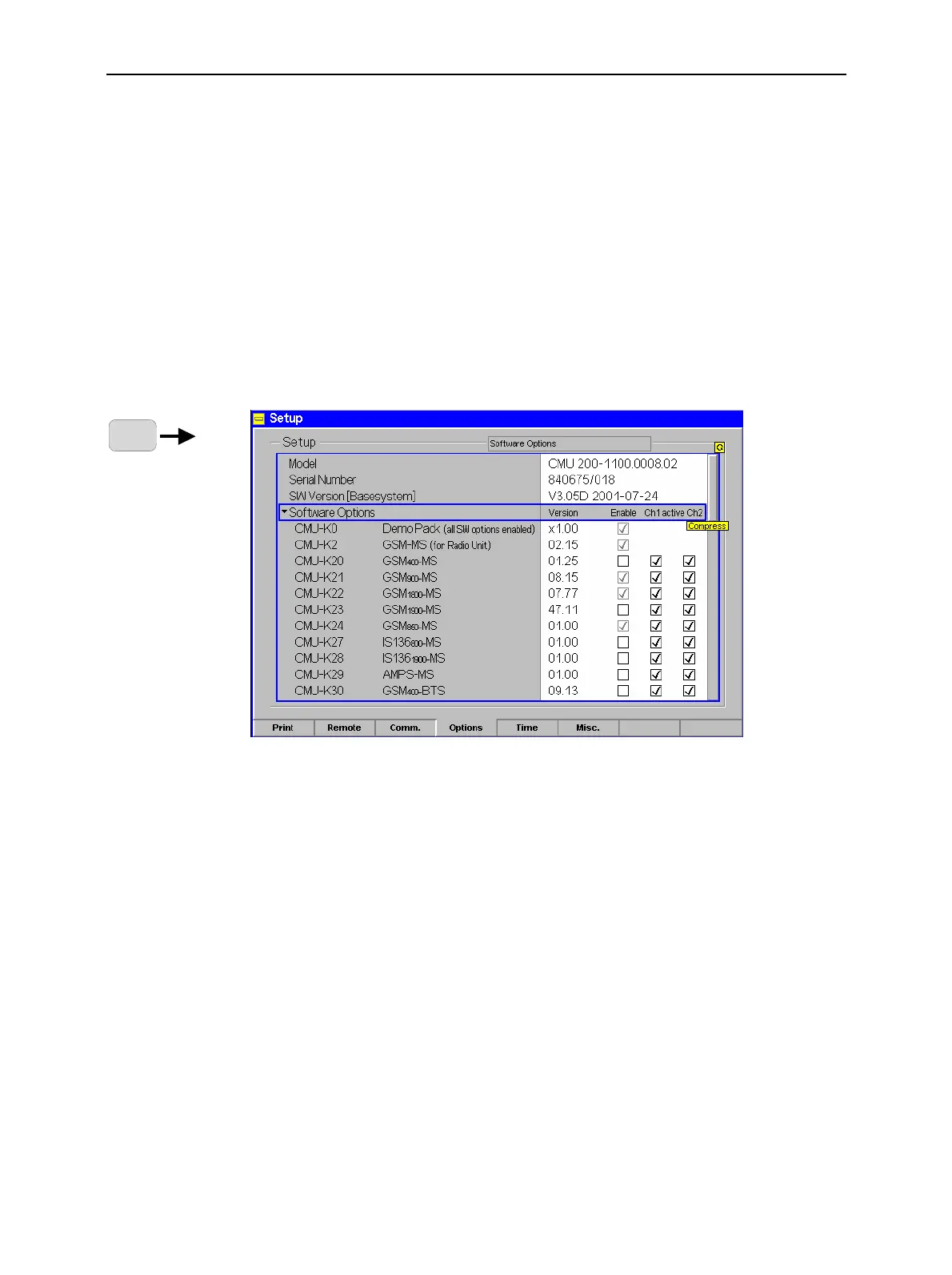

Fig. 4-9 Options menu
Info section:
The three lines above the Software Options section contain the following
information on the instrument.
Model Instrument model
Serial No. Serial number of the instrument
SW Version [Basesystem] Installed base system firmware with date of release
Remote control
SYSTem:OPTions:INFO?
addition information about the installed firmware options can be queried via
SYSTem:OPTions:INFO:CURRent? in all function groups and test modes.
