Selftest (Maintenance) CMU
1100.4903.12 4.20 E-10
Selftest (Maintenance)
The Maintenance popup menu, which is accessible via the BASE function group in the Menu Select
menu, complements the Info menu (see p. 4.18 above) in providing service information, selftests and
correction procedures that are aimed to improve particular measurements. The selftests are primarily
intended for production and service purposes and therefore not needed during normal operation of the
instrument. The following description serves as a general overview.
Menu SelectMenu Select

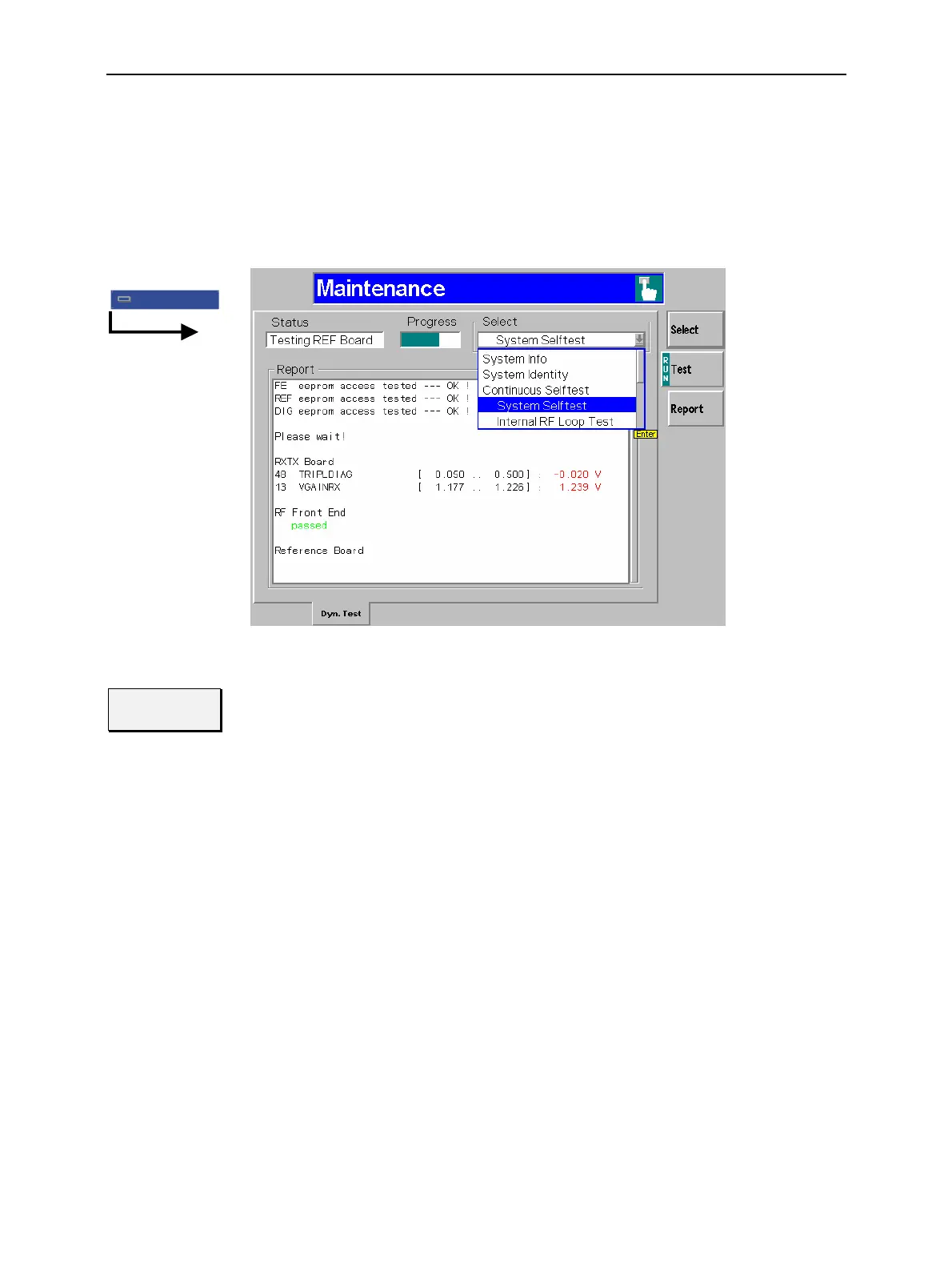

Fig. 4-14 Selftest – Maintenance menu
Select
The Select softkey selects the type of selftest or correction procedure to be
performed.
Note: The Select drop-down list always contains all entries listed below. If
the selftest is started for a board that is not available in the unit, a
message “<Board_Name> board is not available” is displayed.
System Info Provides information on the system memory and the
hardware and software configuration. If System Info is
selected and the Test activated (see below), the CMU lists
all deliverable hardware and software options in the report
table and indicates whether they are available on your
CMU.
System Identity Scans all modules and stores the part numbers and
production data to file c:\identity.dat. In addition the
available software versions are written to the log file
C:\INTERNAL\LOG\VERSION.LOG.
