CMU RF: Connection Control
1100.4903.12 4.59 E-10
Table-Oriented Version
The table-oriented version of the Analyzer tab determines:
The maximum expected input level (RF Max. Level) and the way it is defined (RF Mode)
An external input attenuation or gain (RF Attenuation)
The Frequency and the resolution Bandwidth of the RF analyzer (Analyzer Settings)
The RF Path for the analyzed signal

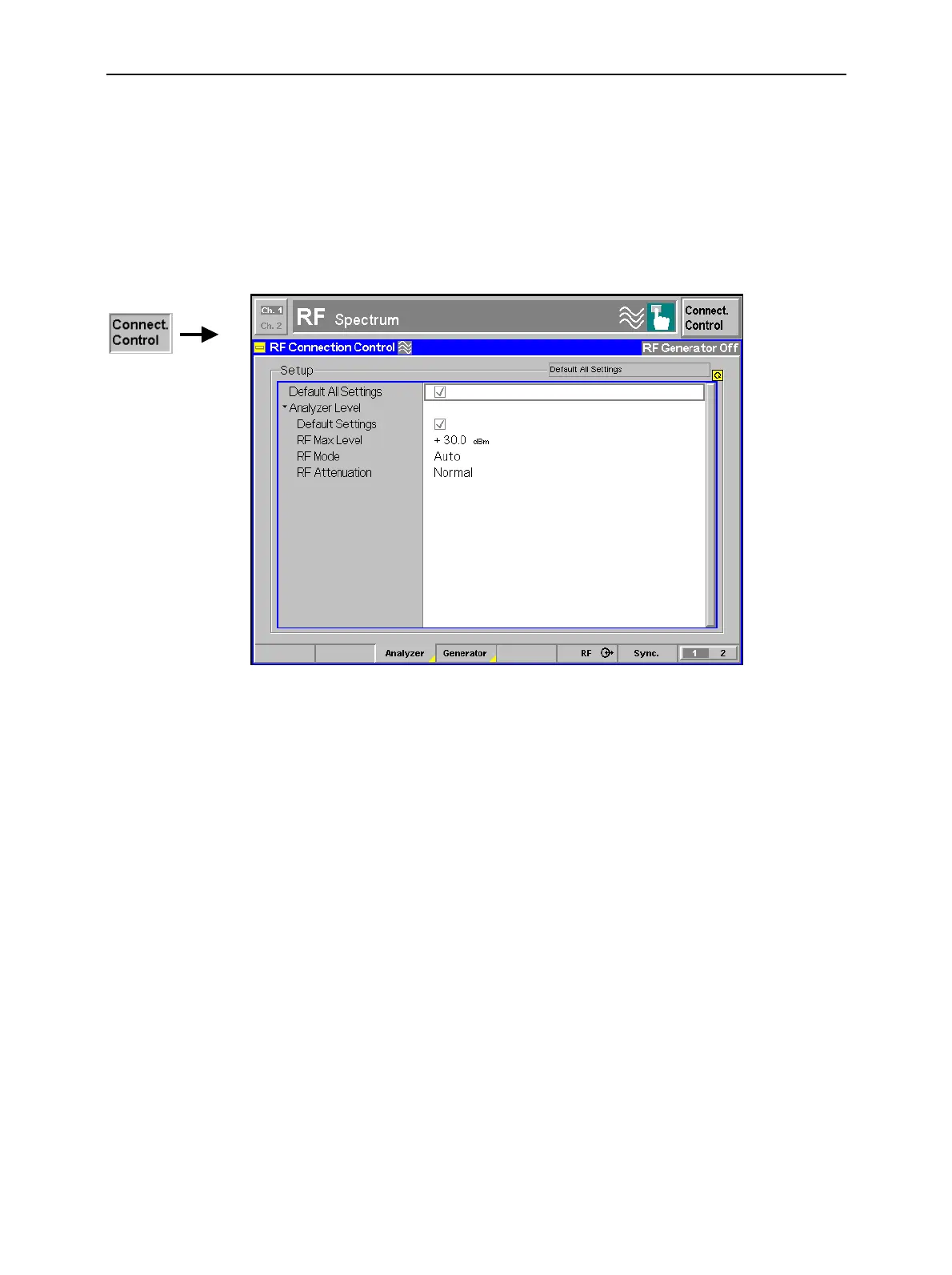

Fig. 4-28 Connection Control – RF analyzer settings (table)
Default Settings
Default All Settings assigns default values to all settings in the Analyzer tab (the
default values are quoted in the command description in chapter 6 of this manual).
Additional default switches are provided for the Analyzer Level and Analyzer Set-
tings table sections.
Remote Control
[SENSe:]LEVel:DEFault
RF Max. Level
RF Max. Level determines the maximum permissible input level (overload level).
The maximum input level determines the upper edge of the diagram in the graphi-
cal menu Power and is also displayed next to the softkey RF Max. Level in the
main menu Analyzer/Generator (see page 4.33). The upper edge of the Spectrum
diagram is set independently via the Reference hotkey, see section Test settings
on page 4.49.
RF Mode
RF Mode determines how the maximum input level is set:
Manual Manual input of maximum input level
Auto Automatic setting of maximum input level (autoranging) accord-
ing to the power of the applied signal.
Remote control
[SENSe:]LEVel:MODE MANual | AUTomatic
