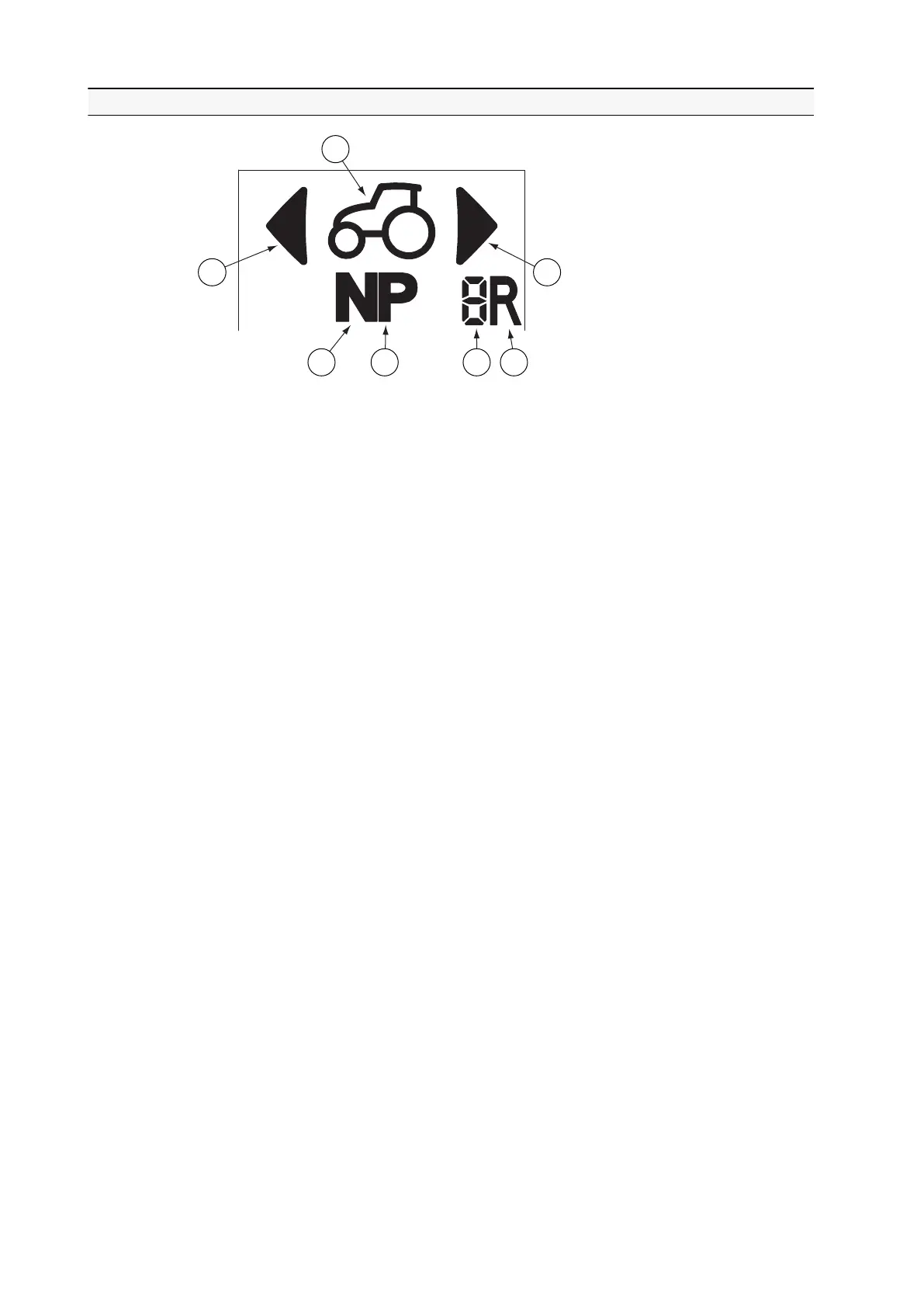

3.11.1 Power shuttle section
GUID-DFD2DDCA-F1BA-4712-81DC-9B359F3D1536
1. Tractor symbol
2. Forward direction arrow
3. Reverse direction arrow
4. Transmission neutral symbol
5. Parking brake symbol
6. Preprogrammed Powershift gear symbol
7. Preprogrammed driving direction symbol
Tractor symbol
The tractor symbol is shown continuously when the power is on.
Forward direction arrow
The forward driving direction arrow is shown when forward driving direction is
engaged. The arrow flashes if the power shuttle has been operated at a driving
speed over 10 km/h.
Reverse direction arrow
The backward driving direction arrow is shown when reverse driving direction is
engaged. The arrow flashes if the power shuttle has been operated at a driving
speed over 10 km/h.
Transmission neutral symbol
The neutral (N) symbol is shown when the power shuttle lever is in the centre
position (N).
Parking brake symbol
The parking brake (P) symbol is shown when the parking brake is on.
Preprogrammed range gear symbol
The preprogrammed range gear symbol (A, B, C or D) flashes if there is
preprogrammed range gears and the power shuttle lever is in P or N position.
When the forward driving direction is selected the preprogrammed range gear
symbol for reverse driving direction (A, B, C or D) is shown.
When the reverse driving direction is selected the preprogrammed range gear
symbol for forward driving direction (A, B, C or D) is shown.
3. Operation
- 152 -
