4.8.1.1 Setting the tyre parameter
You can adjust the tyre parameter according to your preferences through the A-
pillar display settings.
The index determines the instrument calibration of the tyres. The value range is
between 700…1000.
NOTE: If tyres of different dimensions are fitted to the tractor after delivery, the
tyre parameter must be reset. For Agroline, the instrument calibration must be
done also when changing the tyres.
1. Stop the engine and turn the ignition switch off.
2. Engage the parking brake.
3. Press the pre-programming push button, depress the clutch pedal and turn
the ignition on at the same time.
GUID-A50D523E-B207-4B9A-A6C0-5A2F20FFB750

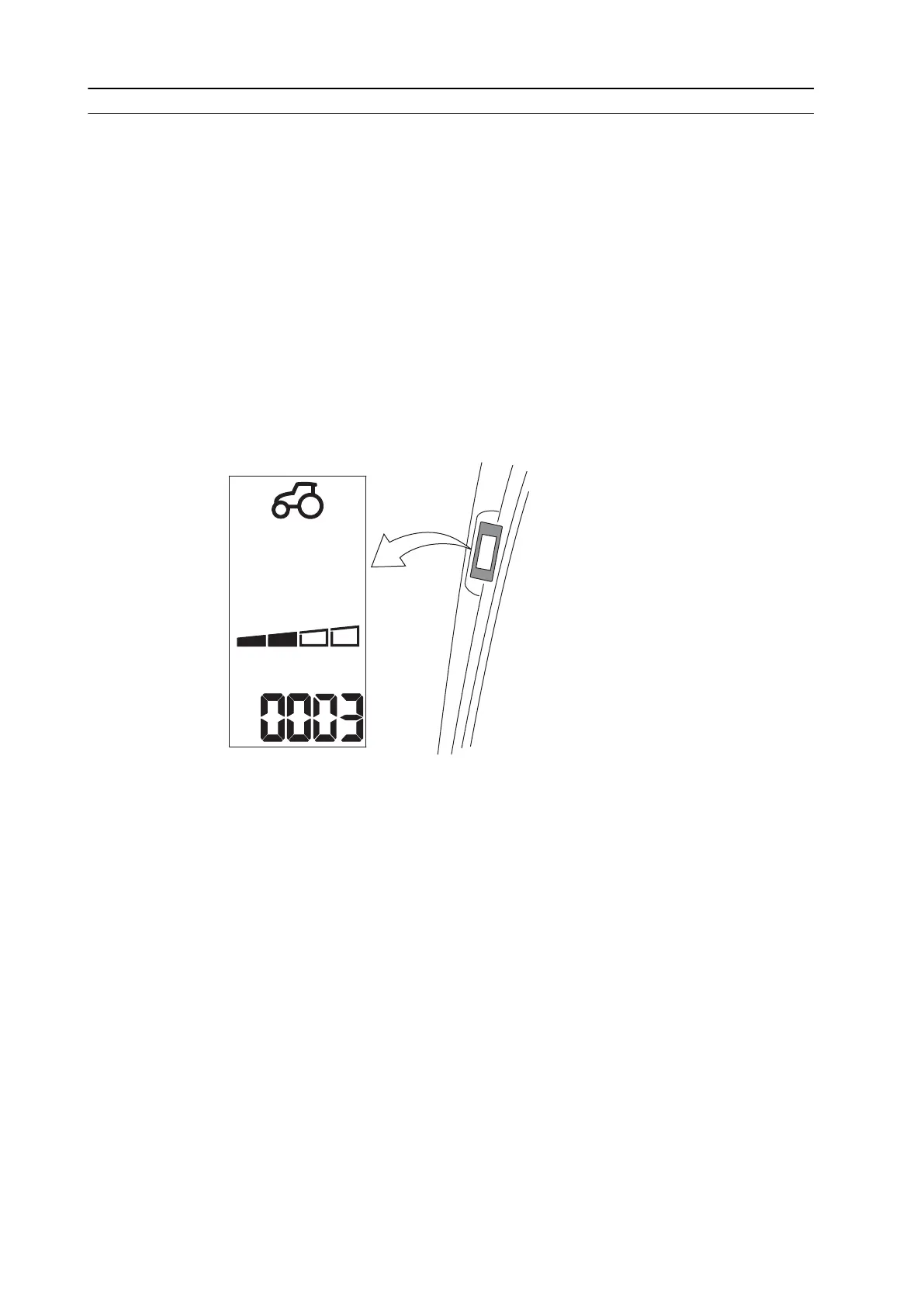

The setting menu symbols (D) appear on the display. The first two bars are lit
to indicate that the parameter number is shown on the bottom row.
4. Maintenance
- 302 -
