1. Reverse the tractor up to the trailer/implement.
2. Align the pick-up hitch hook or drawbar pin to the eye of the trailer/implement
beam.
3. Press the symbol side of the lift/lower switch to raise the linkage fully up until
the hitch latches.
You can hear a click.
4. Lower the linkage slightly.
WARNING: When using a trailer, make sure that the hitch latch is
locked.
Press the side opposite to the symbol of the lift/lower switch to lower the
linkage slightly.Ensure that the hitch is supported by the latch and does not
lower with the linkage.
5. Check the linkage position.
IMPORTANT: Adjust the linkage so that it does not hit the towed device or
power take-off shaft at any circumstance.

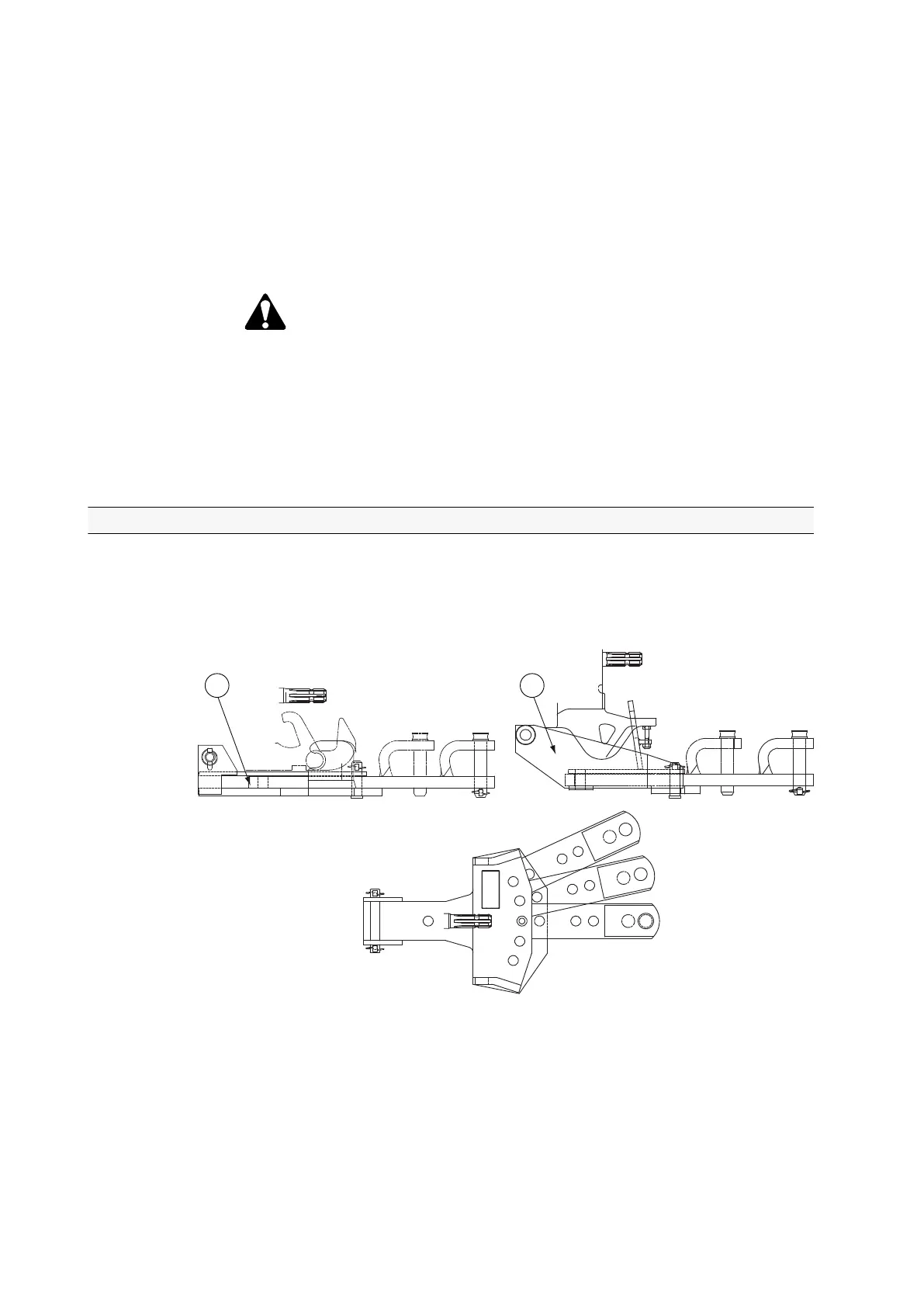

3.20.2 Agricultural drawbar devices
An agricultural drawbar is extra equipment. There are two different agricultural
drawbar devices available: one model used together with pick-up hitch (mounted
below pick-up hitch frame) and another model which is used without the pick-up
hitch (mounted directly to transmission).
GUID-4A36BA4E-C0E4-4DFD-B9F8-2E4B80E1A38F
1. Agricultural drawbar device with pick-up hitch
2. Agricultural drawbar device without pick-up hitch
The agricultural drawbar is used for towing implements where only part of the
implement weight is on the drawbar, for example balers. The maximum weight of
a drawbar implement is 10 000 kg.
Agricultural towing device:
3. Operation
- 216 -
