5. Push the auxiliary hydraulic valve lever for valve 2 to retract the hydraulic
extension.
The hydraulic extension locks, you can hear a click when the hitch latches in
longitudinal direction.
6. Ensure that the towing device extension is locked.
Push and pull the auxiliary hydraulic valve lever for valve 2 several times to
ensure that the hydraulic extension is fully locked and does not extend.
7. Ensure that the towing device is fully locked.
GUID-2524B4CE-74AB-4B70-8203-1B6107C0DFDE

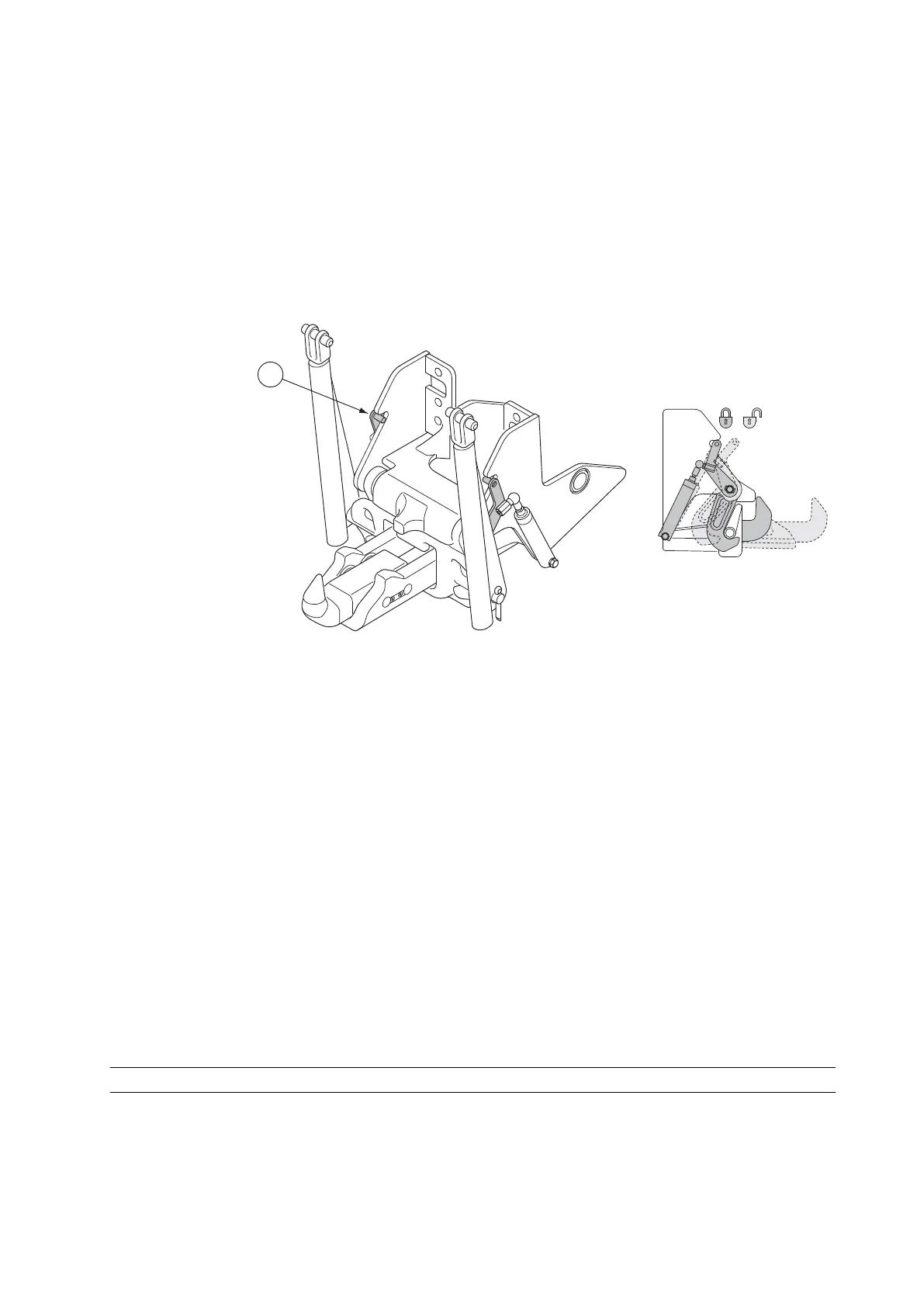

1. Locking indicator
The towing device is fully locked when the following conditions are fulfilled
simultaneously.
• The towing device is in the upmost position and supported by the latch
• The locking indicator is hidden inside the grooves of the side plate of the
pick-up hitch.
• The locking position of the pick-up hitch in longitudinal direction has been
checked by attempting to move the extension back and forth.
NOTE: The locking indicator is hidden inside the grooves of the side
plate of the pick-up hitch.also when the towing device is down.
8. Keep the switch for releasing the trailer hitch latch pressed down and lower
the towing device by pressing the symbol side of the inner switch
9. Check the linkage position.
IMPORTANT: Adjust the linkage so that it does not hit the towed device or
power take-off shaft at any circumstance.
3.20.5.4 Changing the pick-up hitch or drawbar
You can change the pick-up hitch or drawbar. When the hook or drawbar is not in
use, you can fasten it to the bracket on the rear side.
3. Operation
- 227 -
