4.7.4.11 Checking the oil level in the front axle differential

Check the oil level in the front axle differential periodically.

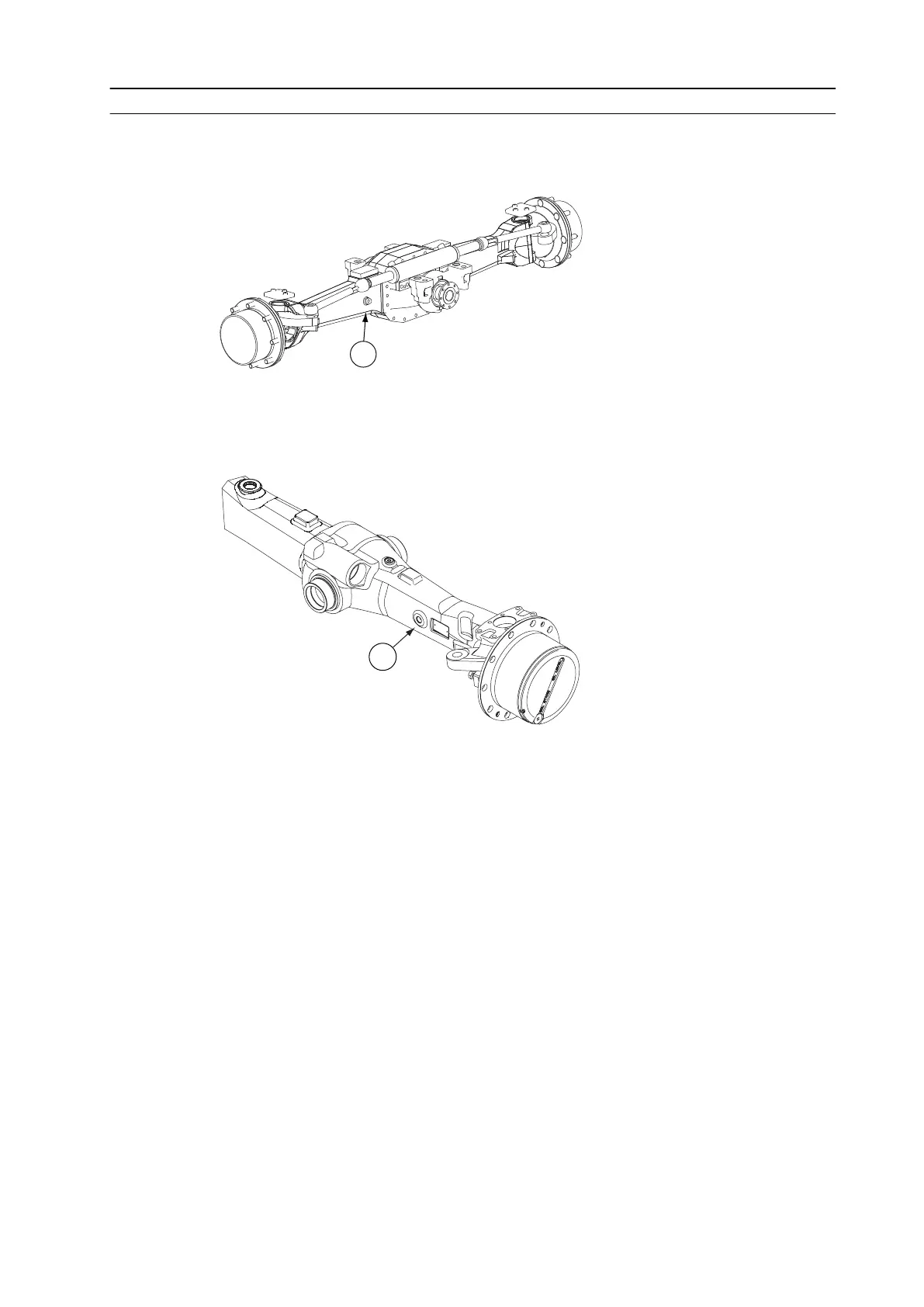

Agricultural front axle:

GUID-1E1BFB91-91C6-41CE-95BB-CE5CE00E6AFE

1. Inspection hole

Industrial front axle:

GUID-4753D85A-F9BB-49C3-9BCE-DAD0300F66BC

1. Inspection hole

1. Check that the oil is in level with the inspection hole.

2. Add more oil if necessary.

4. Maintenance
