3.20.3.1 Adjusting the jaw height
The height of mechanical and automatic jaws is adjusted in the same way.
WARNING: You cannot change the jaw height if the lever is broken or
dirty. The jaw must be locked and secured every time the height is
changed.
GUID-4CFBD8ED-2045-422B-866B-03BACD4973B1

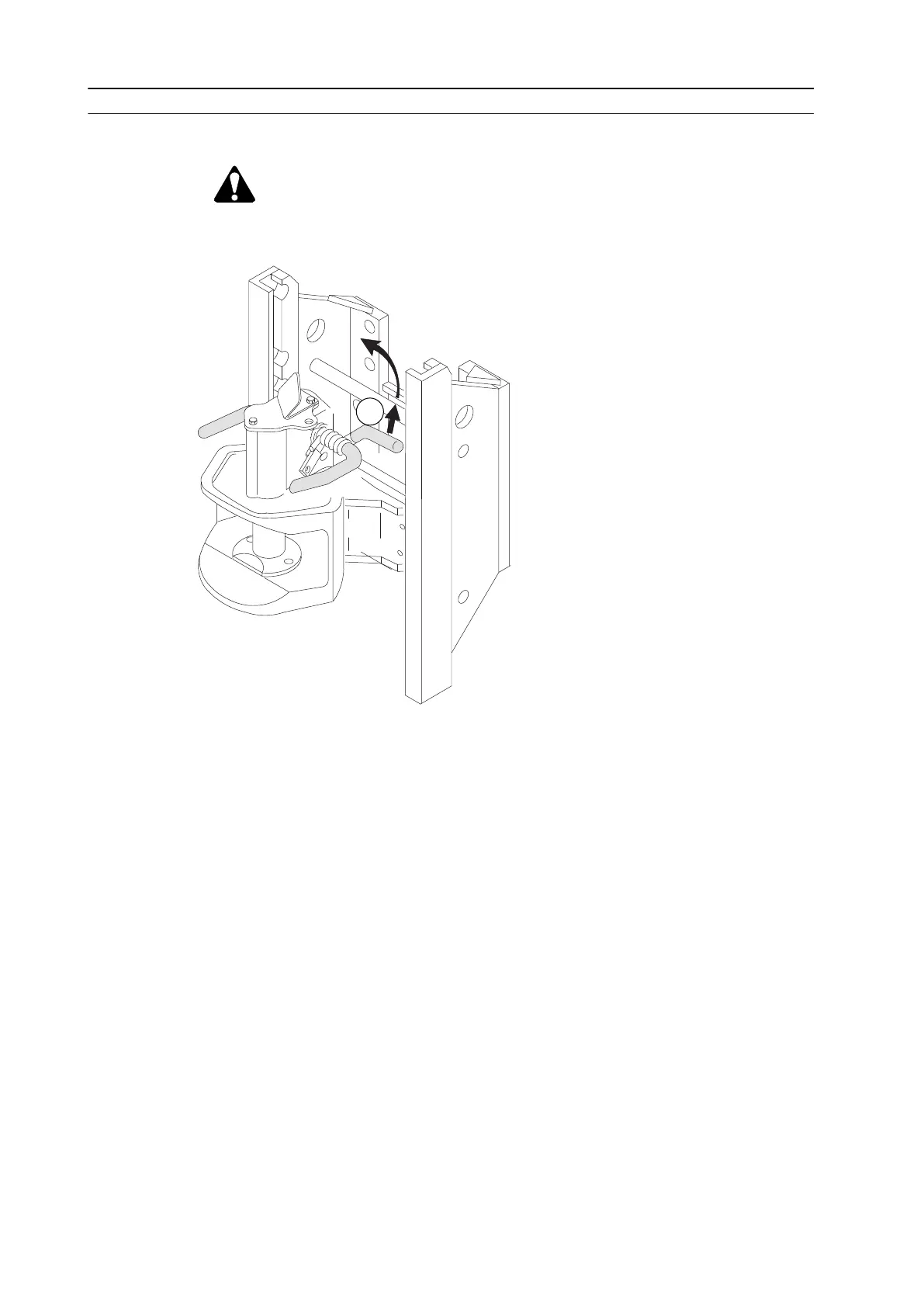

1. Lever
1. Pull the lever upwards and turn it to the left.
2. Move the jaw into the wanted height.
3. Release the lever.
The locking pins lock the lever into the correct position with the help of the
returning springs.
You can also lift the jaw away from the frame by using the same lever.
