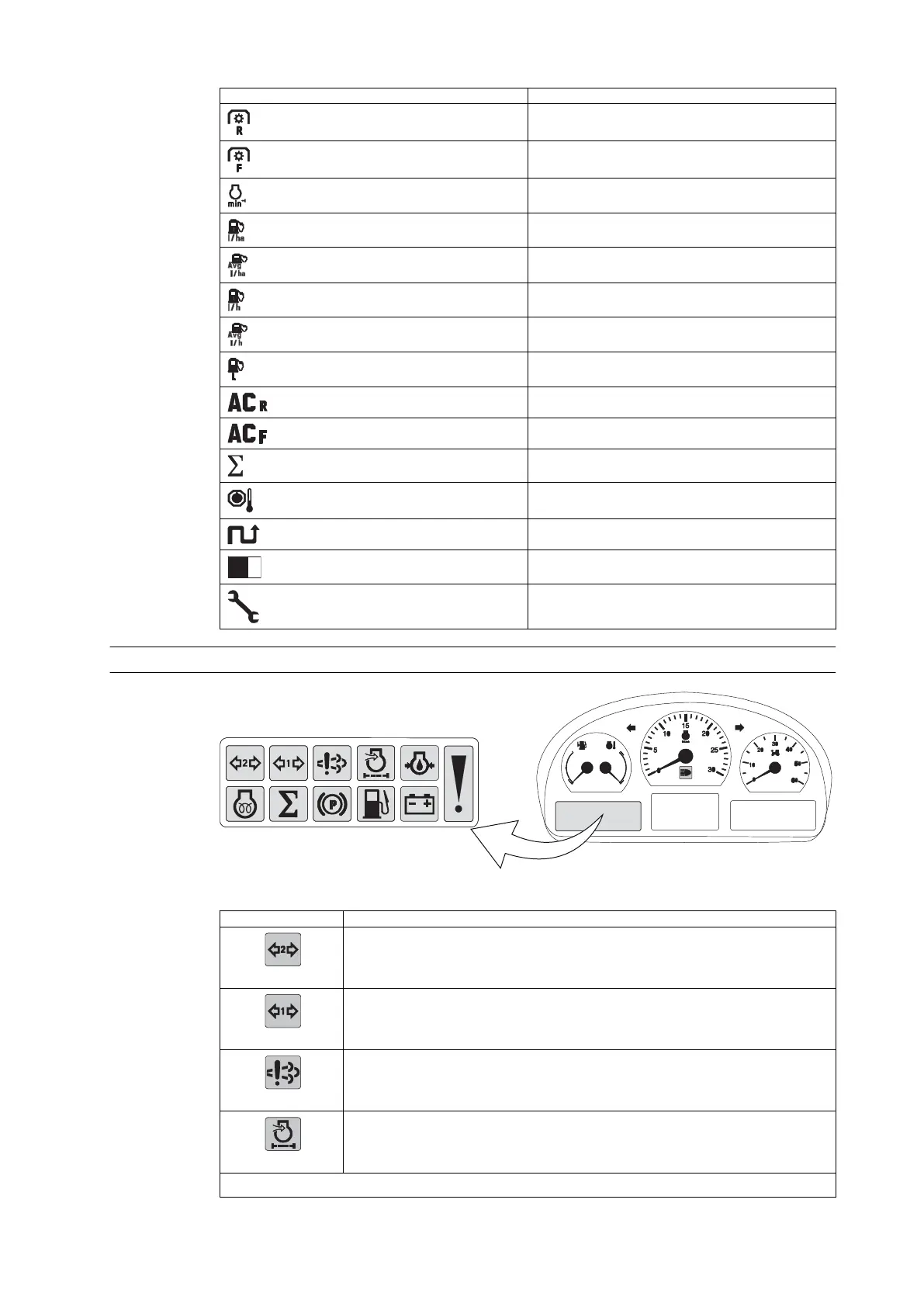

Symbol Function
Rear power take-off (PTO) speed (rpm)
Front power take-off (PTO) speed (rpm)
Engine speed (rpm)
Immediate fuel consumption (ha, acre)
Average fuel consumption (ha, acre)
Immediate fuel consumption
Average fuel consumption
Fuel consumption
Lower link position (%, 0-100)
Lifting link position of front linkage (%, 0-100)
Sigma power (%, 0–100)
Gearbox temperature (C/F)
Travel distance (m/km/miles)
Square area (ha)
Periodical maintenance
2.3.1.2 Indicator lights on the left side of the display
GUID-2E7BADD2-E500-4B99-84AB-7D46D7B01D69
Indicator light
Indication
GUID-32CAE5D4-C71C-4D8B-
A41F-2E1DE50F1ED4
Direction indicator light for second trailer (green).
If one of the bulbs on the combination has failed, this light is not lit.
GUID-16CF17A4-
D96E-4592-8DF3-1D4A100F090E
Direction indicator light for first trailer (green).
If one of the bulbs on the combination has failed, this light is not lit.
GUID-734ABCE0-5000-491A-9961-
AC15633FFC6C
Engine emission system failure or malfunction indicator light.
GUID-06E4C986-88C7-44BA-9897-211
781955328
Engine air cleaner clogging indicator light.
Table continued on next page
2. Instruments and controls
- 31 -
