A
U
T
O
AUTO
M
I
N
M
A
X
P
1
2
2
GUID-C1F3A3A5-C9B2-40D5-B43A-70589B7D6027

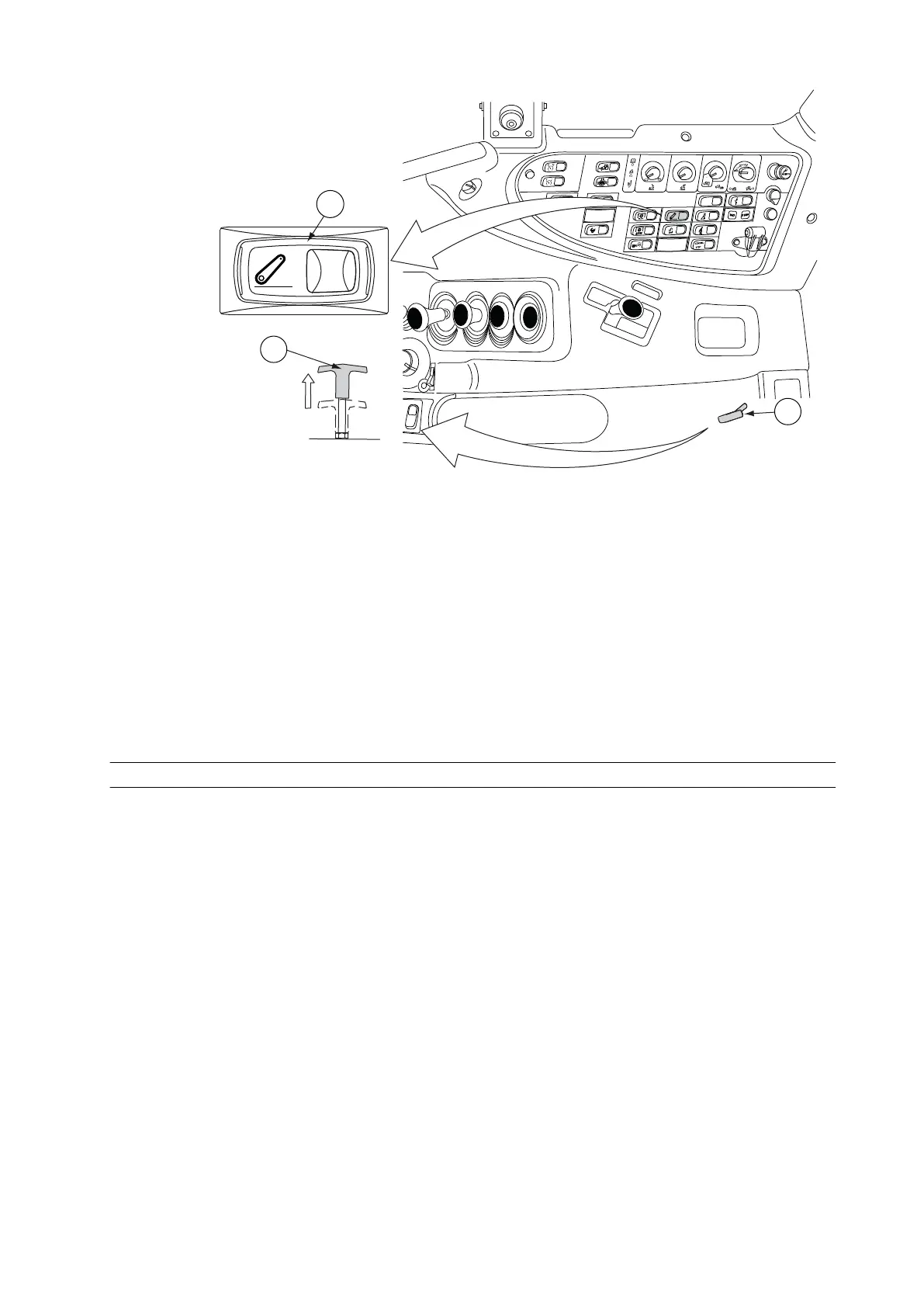

1. Lift/lower switch
2. Hitch latch lever
1. Press the symbol side of the lift/lower switch to fully raise the linkage.
2. Pull the hitch latch lever to unlatch the hitch.
Keep the lever pulled up.
3. Press the switch side opposite to the symbol side of the lift/lower switch to
lower the linkage.
4. Release the hitch latch lever.
3.20.1.2 Unlatching the pick-up hitch equipped with hydraulic unlatching system
The hydraulic pick-up hitch unlatching system is extra equipment.
These instructions apply to both the Nordic pick-up hitch (extra equipment) and
the Euro pick-up hitch (extra equipment) but not to the hydraulically extended
Euro pick-up hitch (extra equipment).
3. Operation
- 213 -
