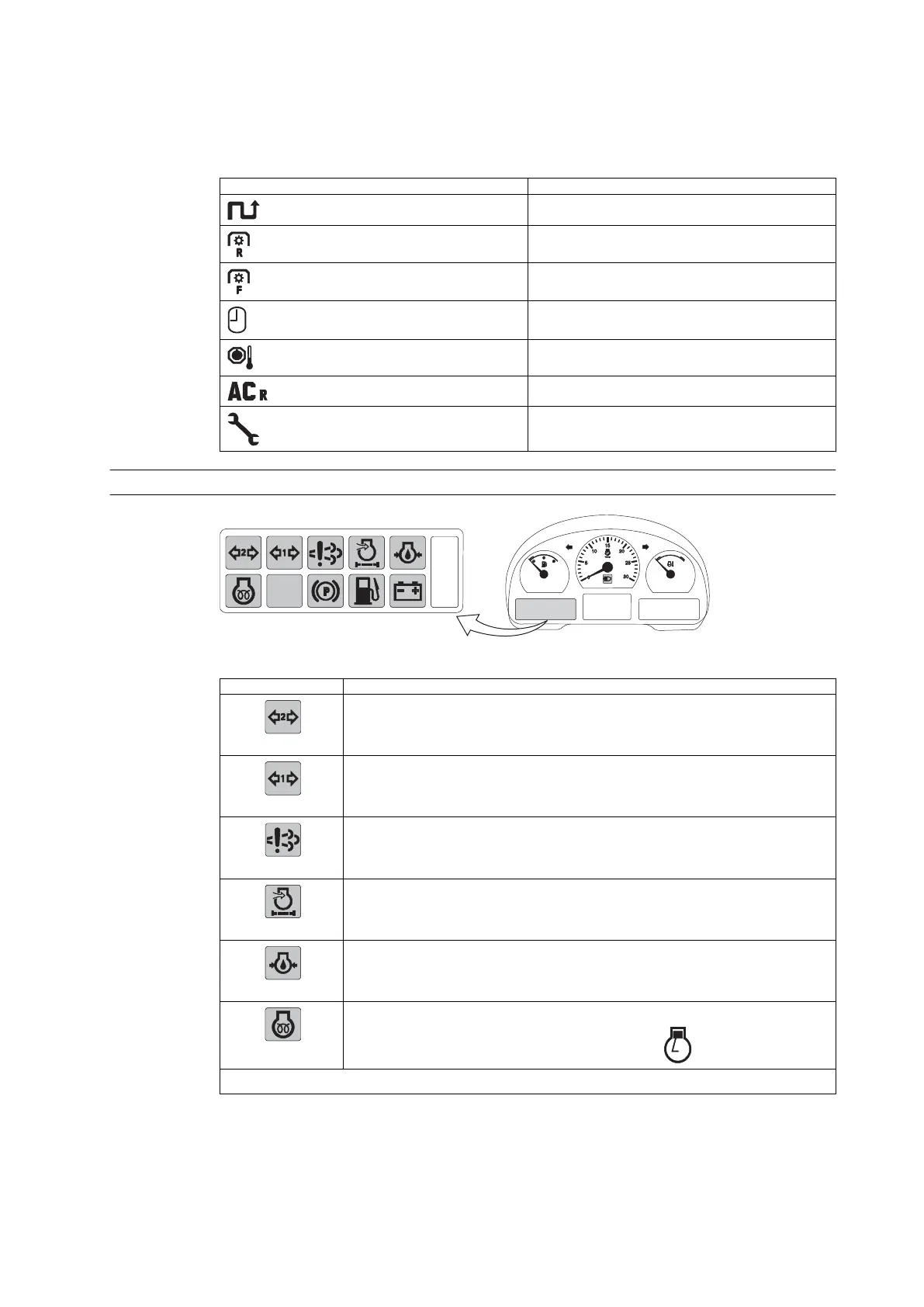

Selectable view symbols
The selectable views are the following functions shown on the top and bottom
row of the display:
Symbol Function
Driving trip (m, km/miles)
Rear PTO rotating speed (r/min)
Front PTO rotating speed (r/min, extra equipment)
Clock
Transmission temperature
Position of lower links (%, 0-100 Ac)
Maintenance schedule
2.2.1.2 Indicator lights on the left side of the display
GUID-947FA1AB-4198-42D2-8DE7-6B503089E7BE
Indicator light
Indication
GUID-32CAE5D4-C71C-4D8B-
A41F-2E1DE50F1ED4
Direction indicator light for second trailer (green)
If one of the bulbs on the combination has failed, this light is not lit.
GUID-16CF17A4-
D96E-4592-8DF3-1D4A100F090E
Direction indicator light for first trailer (green)
If one of the bulbs on the combination has failed, this light is not lit.
GUID-734ABCE0-5000-491A-9961-
AC15633FFC6C
Engine emission system failure or malfunction indicator light
GUID-06E4C986-88C7-44BA-9897-211
781955328
Engine air cleaner clogging indicator light
GUID-A1E9566C-86CE-4AD3-A512-
D772AE266E1E
Engine oil pressure light
GUID-9DD75249-0CC3-461D-84EC-
C9937C947DB9
Glow indicator light
The light (yellow) is lit when the ignition key is in position
and the engine is cold.
Table continued on next page
2. Instruments and controls
- 27 -
