3.20.4 Euro pick-up hitch
The Euro pick-up hitch can be mounted instead of the standard pick-up hitch.
The Euro pick-up hitch is extra equipment.
WARNING: Do not exceed the maximum tyre loadings when attaching
towing devices.Check axle tyre loadings given in technical
specifications in this manual.
WARNING: Make sure that the maximum permissible towable mass is
not exceeded.Check tractor identification plate for permissible towable
mass. Follow valid laws and regulations.
IMPORTANT: When attaching a trailer or implement, be sure not to exceed the
maximum weight of the rear axle. See the technical specifications in this manual
for the maximum permissible axle loading.

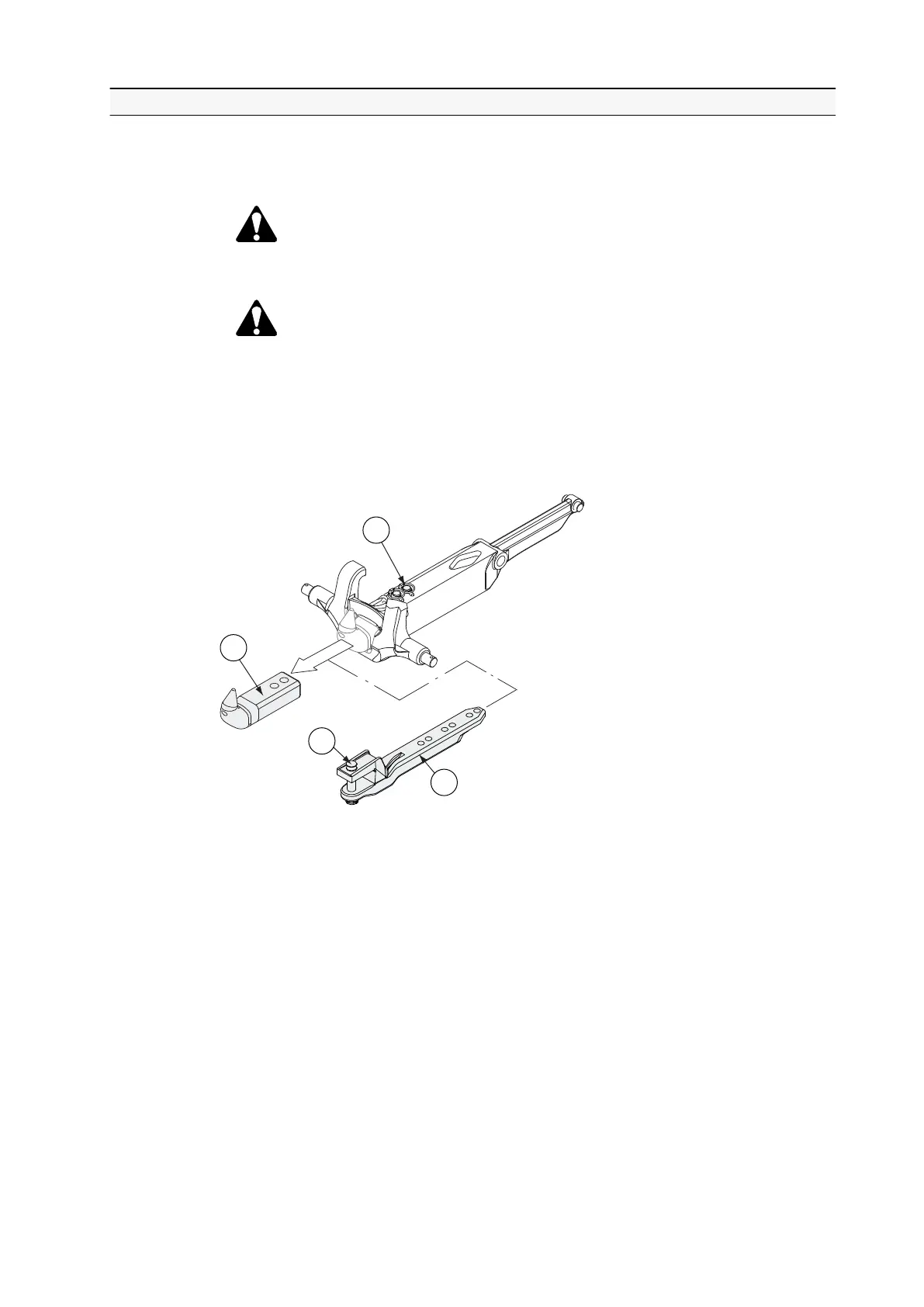

GUID-5FB38332-E579-4B6E-BC52-4C811B27B6C0
1. Fastening pins
2. Tow hook
3. Implement attachment pin
4. drawbar, extra equipment
The tow hook can be changed to the drawbar (extra equipment) by removing the
fastening pins.
IMPORTANT: Always secure the fastening pins with the locking pins on the top
side of the pick-up hitch. This prevents the locking pins from getting stuck to any
objects such as tree branches on the ground that might open them accidentally.
When the tow hook or drawbar is not in use, it can be fastened to the bracket.
