3.13 Three-point linkage
STOP
5
6
1
2
3
4
4
2

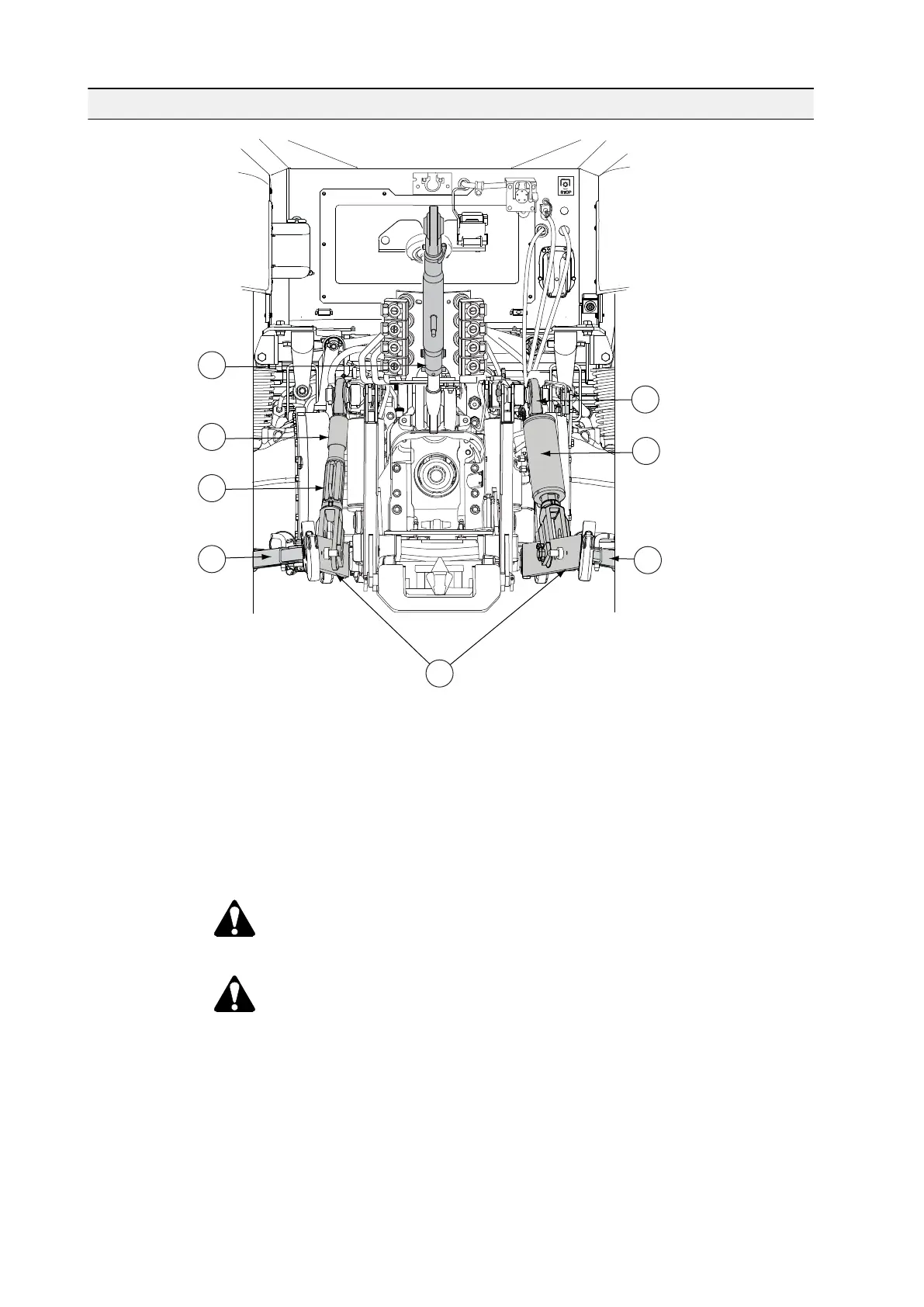

GUID-36CA3C97-D005-47B2-A8E9-575EBE5D3D14
1. Top link
2. Lifting link
3. Levelling gear
4. Check links
5. Hydraulic levelling ram (extra equipment)
6. Lower links
The tractors are supplied with category 3 ball hitch lower links.
WARNING: Ensure that the telescopic lower links lock correctly when
implement is fitted.
WARNING: Ensure that the ball hitch lower link hooks latch correctly.
The top link has three different attaching holes on the tractor. Thus, it is possible
to get different lifting geometry for different implements. When the top link is in
the lowest hole, the implement inclines forward. The uppermost hole gives almost
horizontal lifting movement.
NOTE: Usually it is recommended to use the middle hole.
