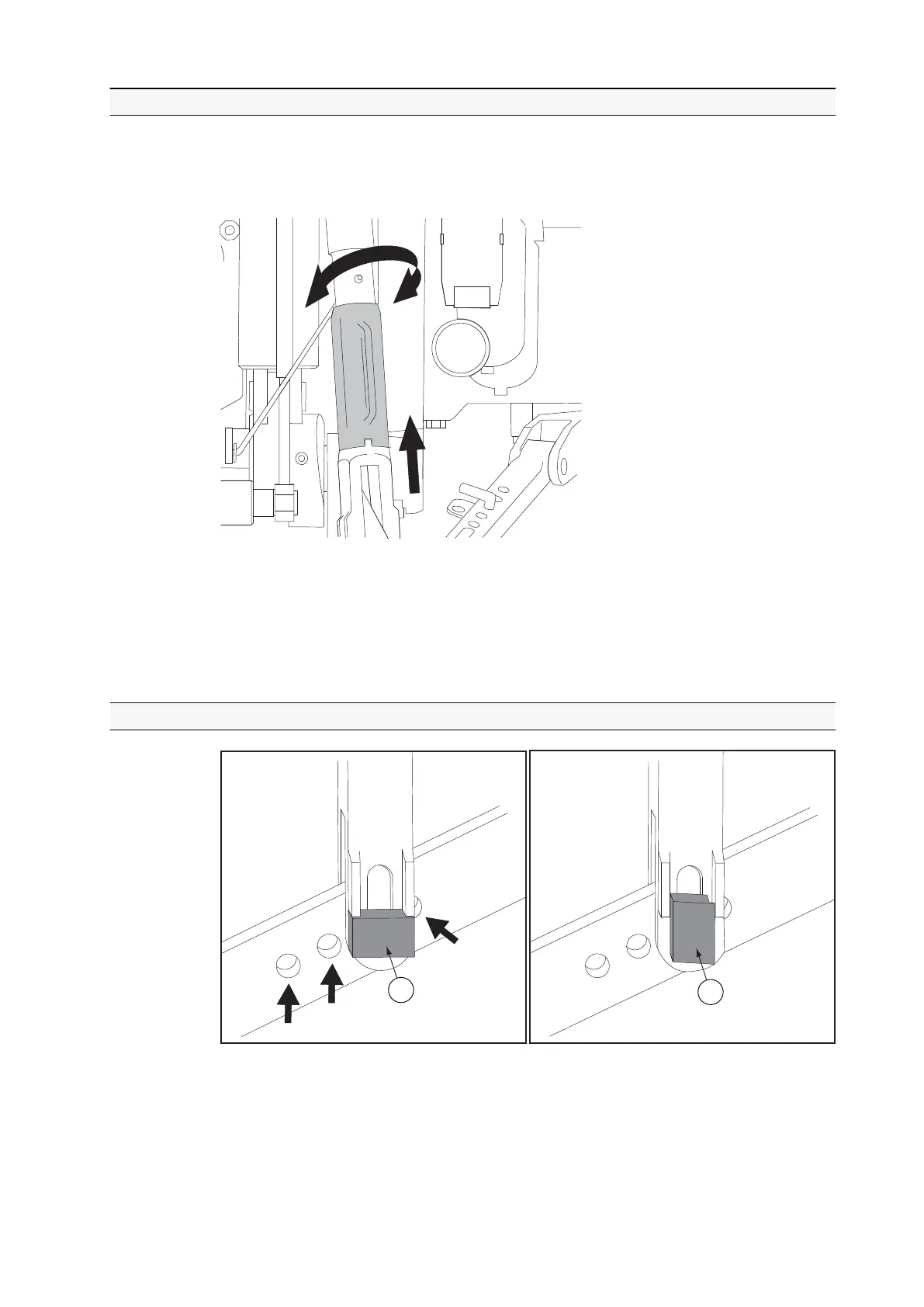

3.13.3 Adjusting lifting links
IMPORTANT: When adjusting the lifting links, make sure that they do not hit the
tractor.
GUID-DDA838C1-6B23-40E7-A263-B6EB1216A494
1. Adjust the linkage in to the position that there is no load on the lifting links.
2. Lift up the levelling screws and turn them in the required direction to adjust
the length of the lifting links.
3. Lower the levelling screws back to the locked position after adjustment.
3.13.4 Adjusting lower links
GUID-D7DB9949-AD41-4137-B710-8AE300E55DAD
1. Carrier pin position providing fixed position of lower links
2. Carrier pin position allowing slight vertical movement of lower links
1. Remove the lock pin and pull out the carrier pin.
3. Operation
- 173 -
