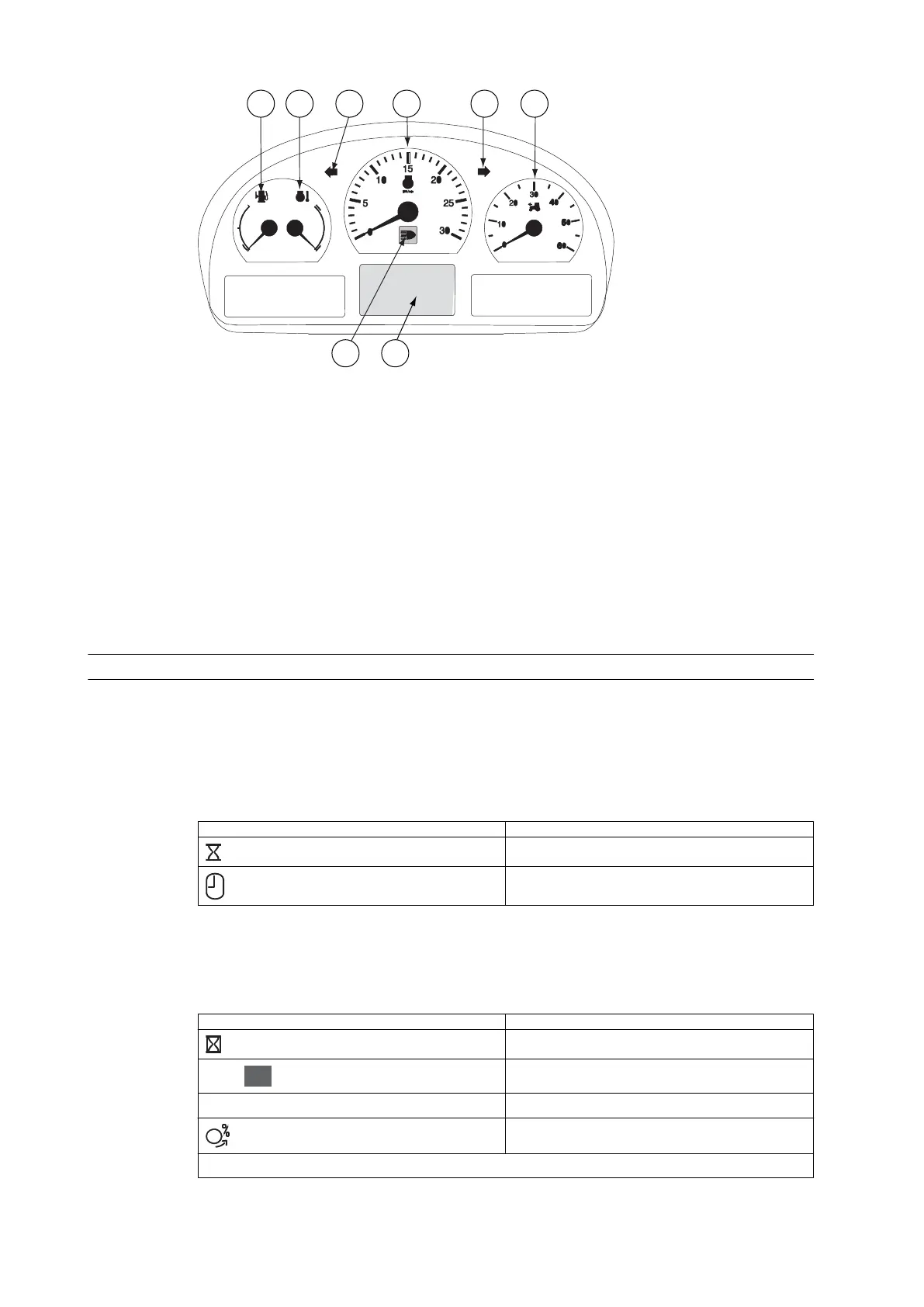

1. Fuel gauge
2. Coolant thermometer
3. Indicator lights for direction indicator
4. Tachometer
5. Speedometer
6. Indicator light for the main beam
7. Proline instrument panel display
The fuel gauge shows the amount of fuel left in the tank.
The coolant thermometer indicates the engine temperature. The zone between
blue (cold) and red (hot) is the normal operating temperature.
2.3.1.1 Symbols on the Proline instrument panel display
The Proline instrument panel display has fixed views and views that can be
selected by the operator.
Fixed view symbols
The fixed views are the two functions shown on the bottom row of the display:
Symbol
Function
Operating hours (hhhh.h)
Clock (hh:mm)
Selectable view symbols
The selectable views are the functions shown on the top and centre row of the
display:
Symbol
Function
Working time (h:mm)
Cruise control
km/h/mph Driving speed (km/h/mph)
Wheel slip (%, 0-100)
Table continued on next page
2. Instruments and controls
- 30 -
To Next Page
