• Adjustable to four different distances from the power take-off (PTO) shaft.
• In all positions, the drawbar can also be adjusted ±12.5° and ±25° laterally.
Light agricultural towing device:
• Only available for the trailer hitch.
• Adjustable to two different distances from the PTO shaft.
• In the three outermost positions, the drawbar can also be adjusted ±12.5°
and ±25° laterally, and to two different positions.
• The maximum permissible vertical load is 10 kN (drawbar in the forward
position) and 7.5 kN (drawbar in the rearmost position).
3.20.3 Towing device frames
The towing device frame options available are: towing device frame (used without
pick-up hitch or agricultural drawbar), short towing device frame (used with pick-
up hitch or agricultural drawbar) and towing device frame with fixed Piton-Fix pin
and with drawbar, and towing device frame with fixed 80 mm ball coupling with
drawbar.
WARNING: According to law, the operator has to ensure that all
relevant precautions are taken (lockings secured etc.).

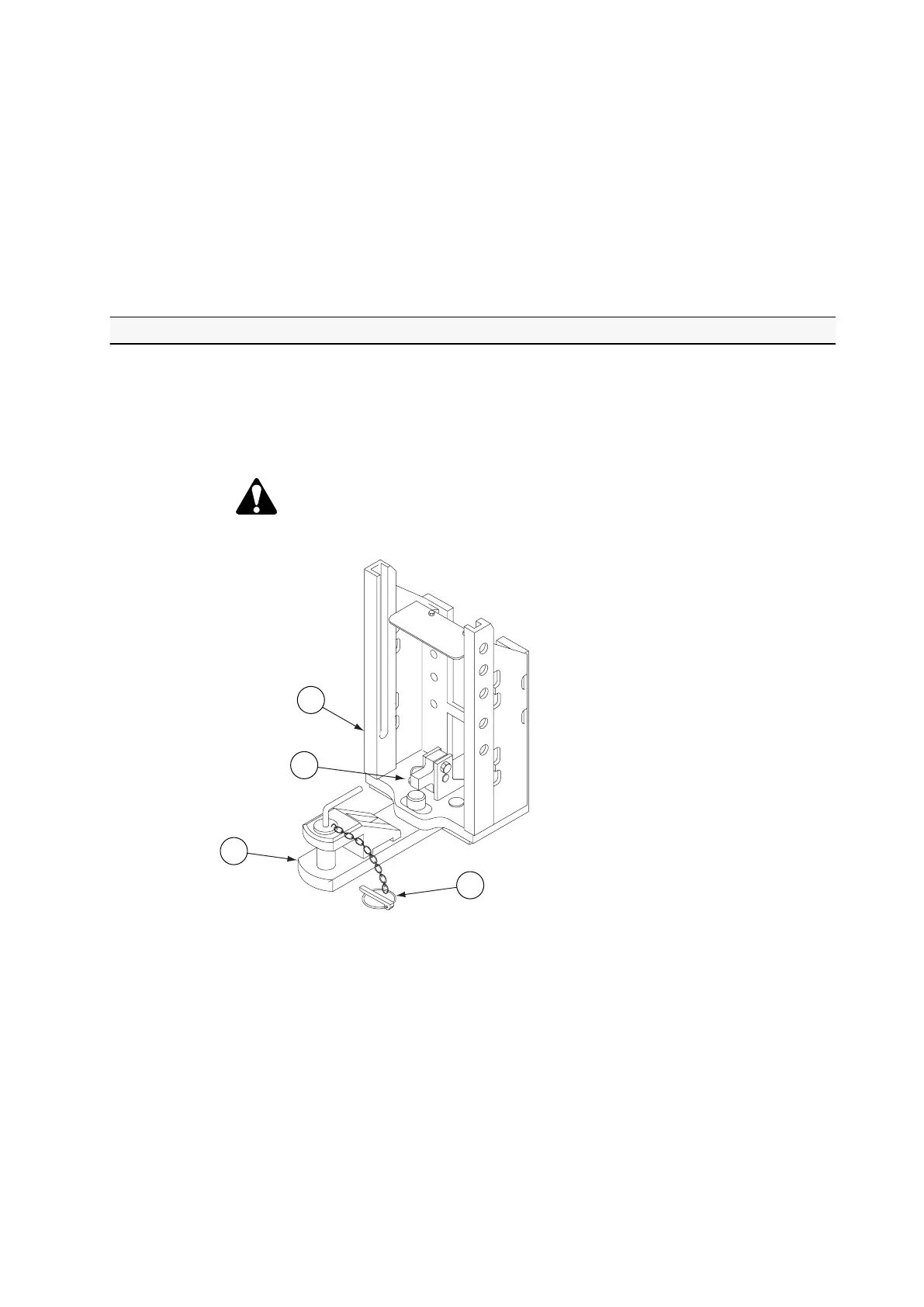

GUID-A9D0874E-0675-4249-BC83-E599175C13F9
1. Towing device frame with a fixed Piton-Fix pin
2. Agricultural drawbar
3. Locking
Locking to the trailer must be secured.
3. Operation
- 217 -
