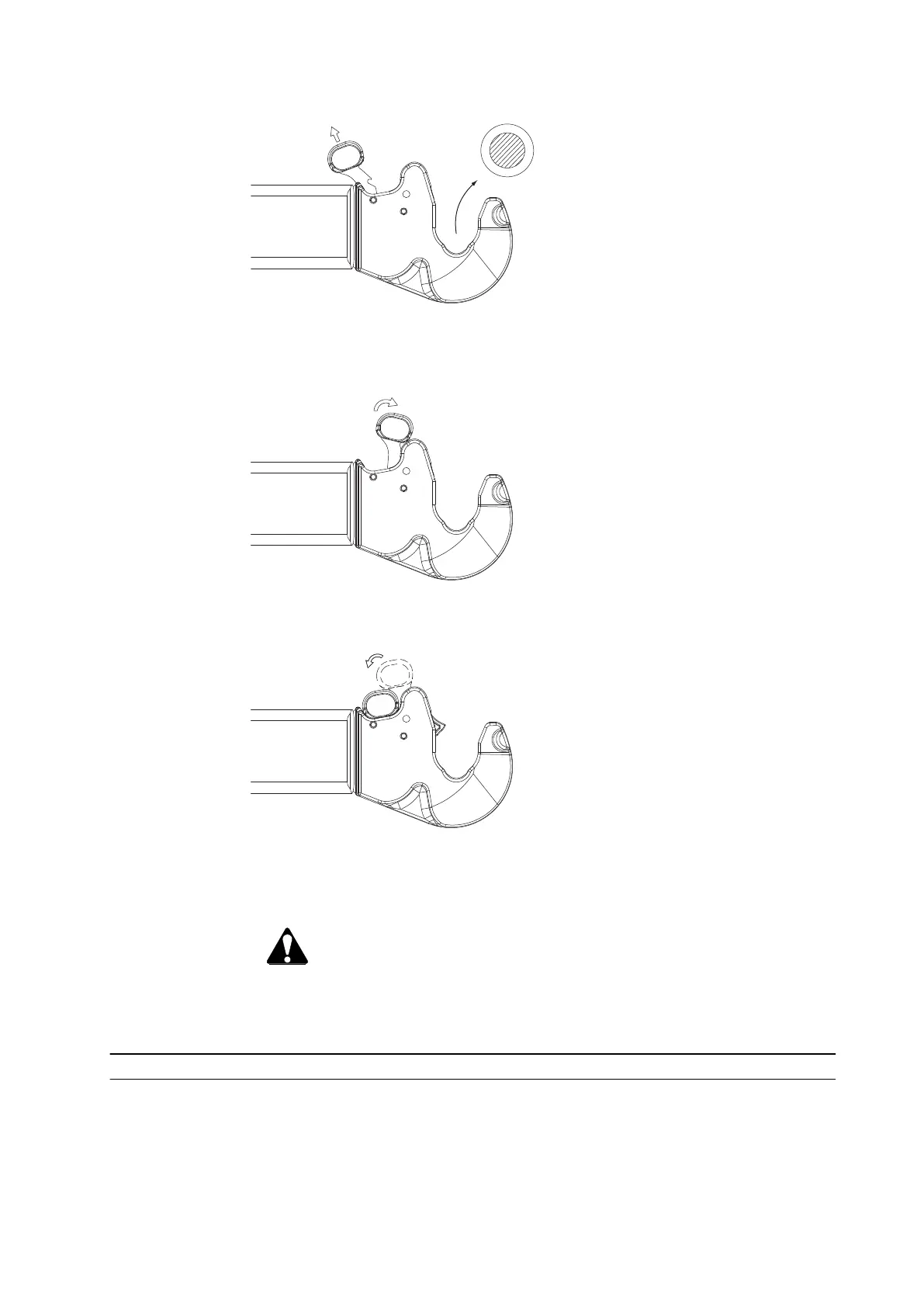

1. Pull the lever to release the implement.
GUID-B34D35B4-E0CE-4463-B721-C6B3DB17C240
2. You can leave the lock open by pulling the lever backwards (for example
when demounting an implement).
GUID-56C9DF34-89D5-4D27-9623-1EDC391238A8
3. Release the lock by pulling the lever forward.
GUID-6BE1B613-7FB8-4BED-8071-6BBBAEFF057C
The ball joints lock automatically when attaching the implement.
In the locked position the clamp is in view and the lever is in the lower
position.
DANGER: Clean the quick couplings and ball joints before
attaching an implement. There is risk that the implement is not
attached properly.
The quick couplings can be controlled in the cab using a release cable (extra
equipment).
3.13.2.1 Setting the release cable for lower link quick couplings
Release cable for lower link quick couplings is extra equipment. To be able to
unlatch the hook type ends from the cab, the release cable must be attached via
the holes on the three-point linkage unit.
3. Operation
- 171 -
