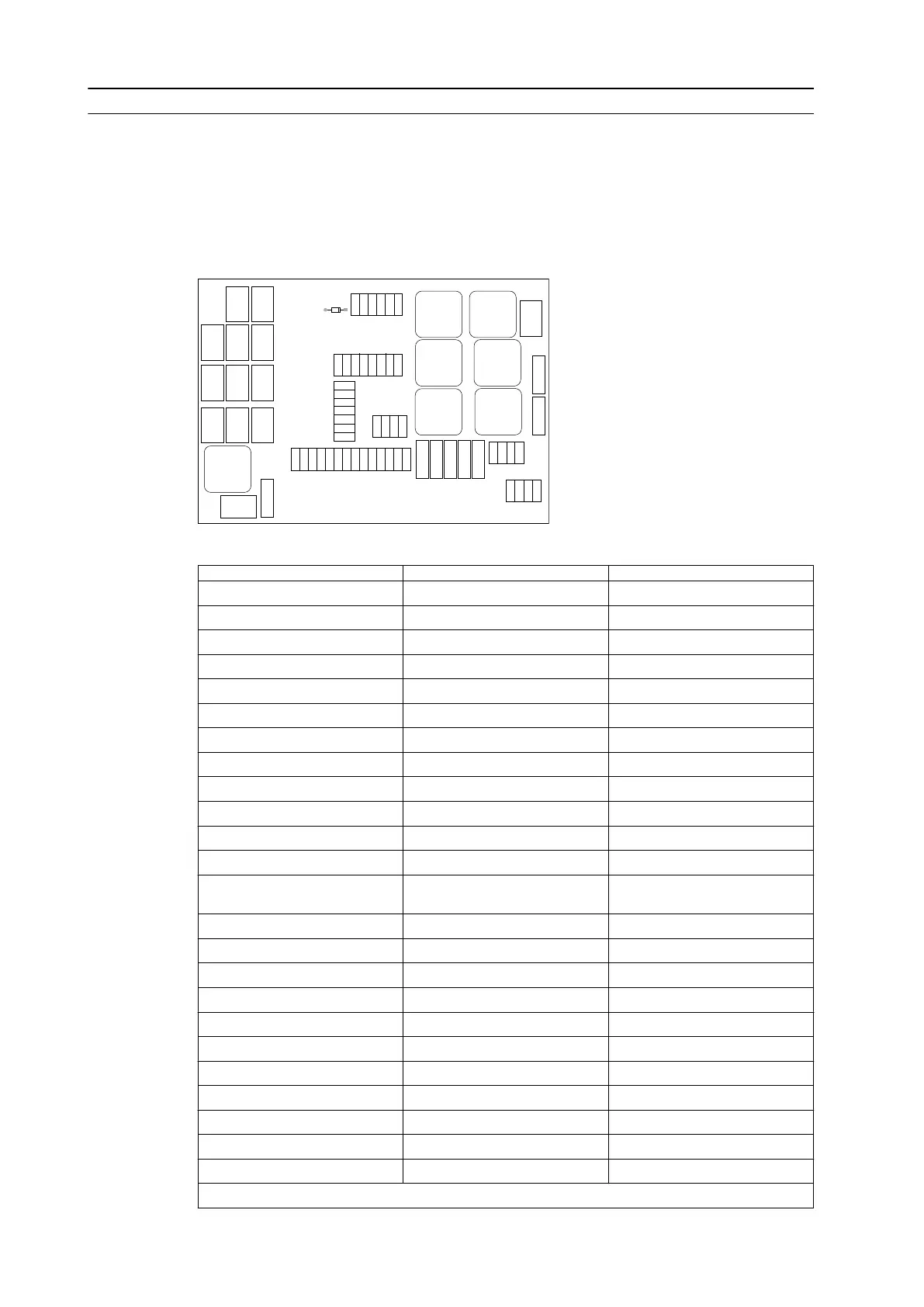

4.8.6.6 Fuses and relays in the electric centre
The fuses and relays in the electric centre in the lower part of the dashboard are
listed in the following tables.
The fuse diagram is placed inside the fuse box. There is space for spare fuses.
The electric centre in the lower part of the dashboard contains 49 fuses and the
nominal current rating of these fuses is 5-30 A. The relays K22 and K23 are
located near the electric centre.
K1 K2
F1
Spare-Fuse
F7 F8 F9
F10 F11
F12
F13 F14
F15
F16
F17
F18
F19
F20
F21
F22 F23 F24 F25
F26 F27 F28
F29
F30
F31
F32 F33
F34 F35
F36 F37 F38
F39
F40
F41 F42
F43 F44
F46 F47
F48
F49
F45
F2
F3
F4 F5
F6
K5K4K3
K6 K7
K8
K9 K10
K11
K12
K13
K14
K17
K18
K20
K19
K15
K16
D1
GUID-64380A27-090B-4AC7-9420-EA02EE07838F
Fuse
Nominal current Description
F1 10A Brake lights
F2 10A Ignition switch
F3 15A Hazard
F4 10A Beacon, cab light
F5 10A Seat, diagnostics, Auto-Guide
F6 10A 2-pole current sockets
F7 15A High beam
F8 15A Low beam
F9 15A Trailer socket
F10 10A Lighter, SVC wiper
F11 10A Trailer hitch (light), Isoadapter
F12 10A Direction indicators
F13 10A Windscreen wiper and washer,
horn
F14 10A Floor fan
F15 10A Reserve
F16 10A Reserve
F17 10A Air condition compressor
F18 10A Reserve
F19 10A Reserve
F20 10A Fuel pump
F21 15A Reserve
F22 15A Low beam (hood)
F23 10A Main switch
F24 10A Memory
Table continued on next page
4. Maintenance
- 314 -
