1. Lower down and extend the towing device.
2. Raise the towing device to the locking position.
3. Unscrew the lock washer screws.
4. Remove the lock washer.

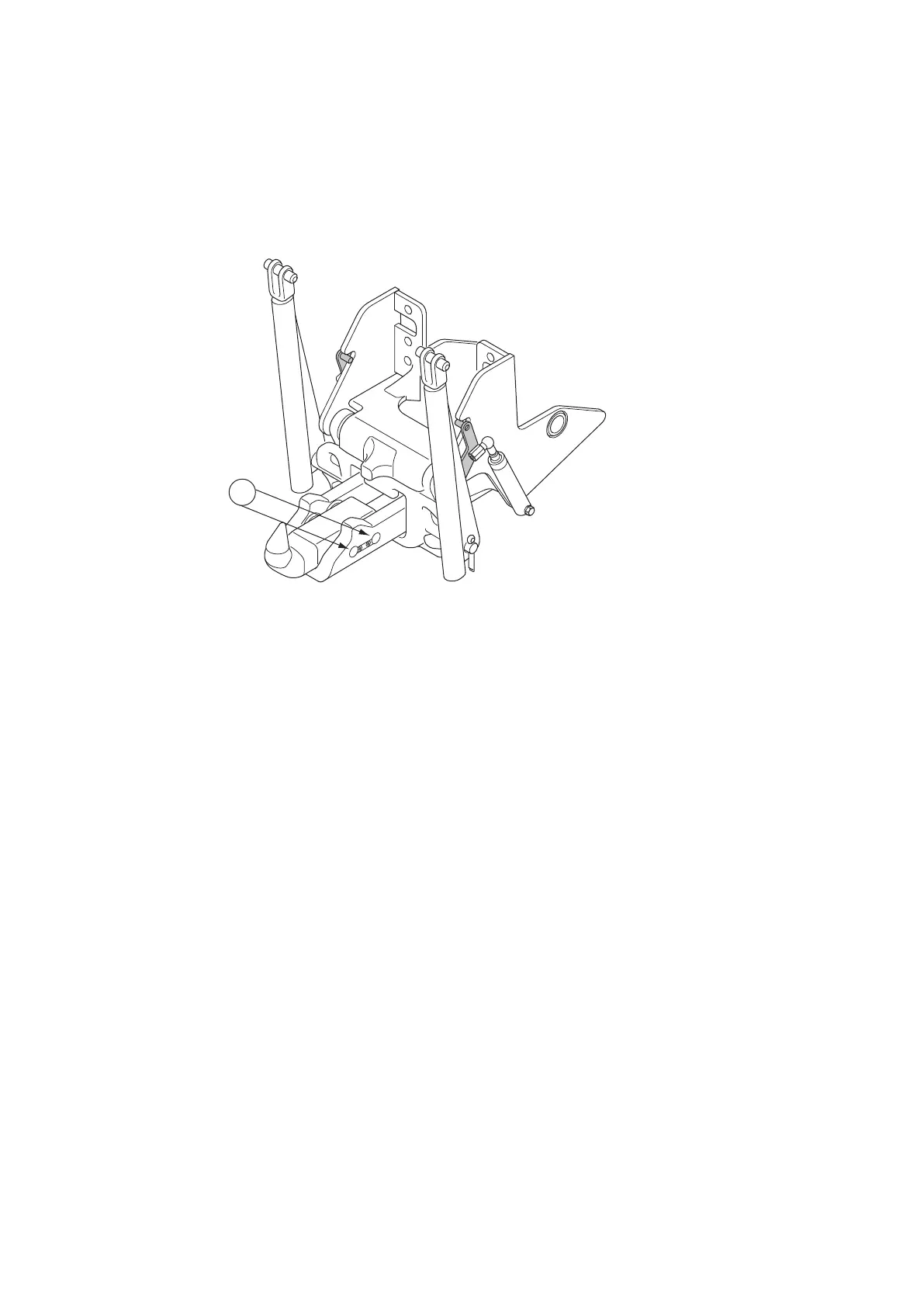

5. Remove the rearmost locking pin by pushing.
GUID-7F4E8D3B-EDE7-4BF6-B601-720A5E6C65CC
1. Locking pins
6. Support the pick-up hitch hook or drawbar with your hand and remove the
other locking pin.
The foremost locking pin also supports the hydraulic extension. Make sure
that the pick-up hitch is horizontally adjusted to prevent the extension from
falling.
7. Attach the pick-up hitch and drawbar in reverse order.
The foremost locking pin must also go through the hydraulics cylinder ring
that operates the extension.
8. Attach the lock washer.
Attach the lock washer to the grooves of the locking pins and lock the
fastening screws to 10 NM.
3. Operation
- 228 -
