WAGO PFC100 User Manual

WAGO-I/O-SYSTEM 750 Commissioning 165
750-8100 PFC100; 2ETH; ECO
Manual
Version 1.6.0, valid from FW Version 03.02.02(14)
7.8.2 Configuration via Console-Based-Management-Tool (CBM)
using a Terminal Program
The Console-Based Management Tool (CBM) is basically used for the initial
configuration and startup of the controller via a terminal program.
Therefore, it only provides a subset of the controller parameters. For example,
parameters that cannot be displayed in a terminal window in a reasonable way
and are not necessary for initial startup are not displayed.
1. Connect a PC to ETHERNET interface X1 of the controller using a terminal
program.
2. Start the terminal program.
3. Select “SSH” as the connection type, and enter the IP address of the
controller and port 22 as the connection parameters.
4. Log in to the Linux
®
system as a “super user.”
The user name and the password are provided in the Section “Users and
Passwords” > “Linux
®
User Group.”
5. Start the configuration tool by entering the command “cbm” (case sensitive)
on the command line and then press [Enter].

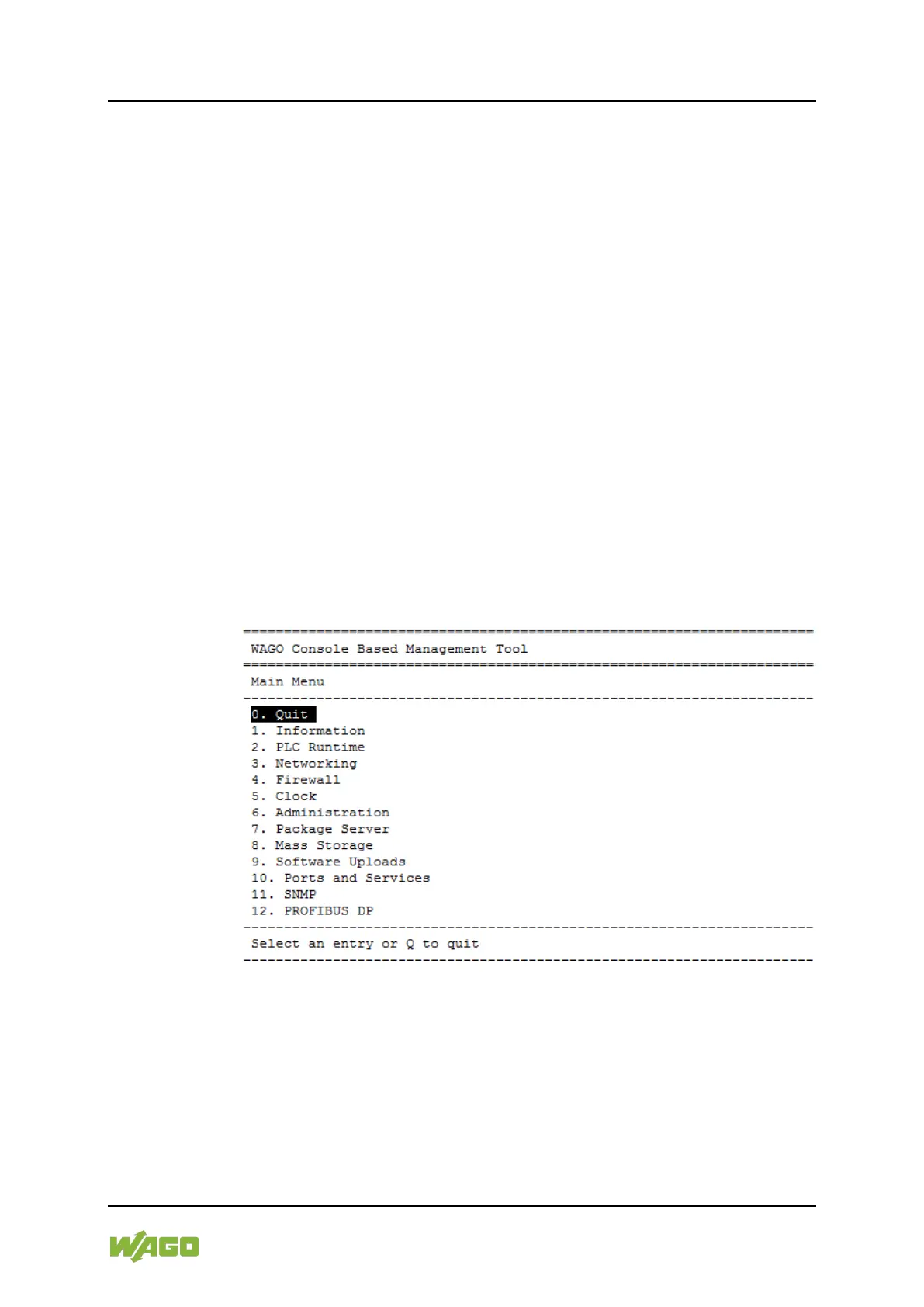

Figure 34: CBM main menu (example)
