A status area with the following elements is displayed on the right:

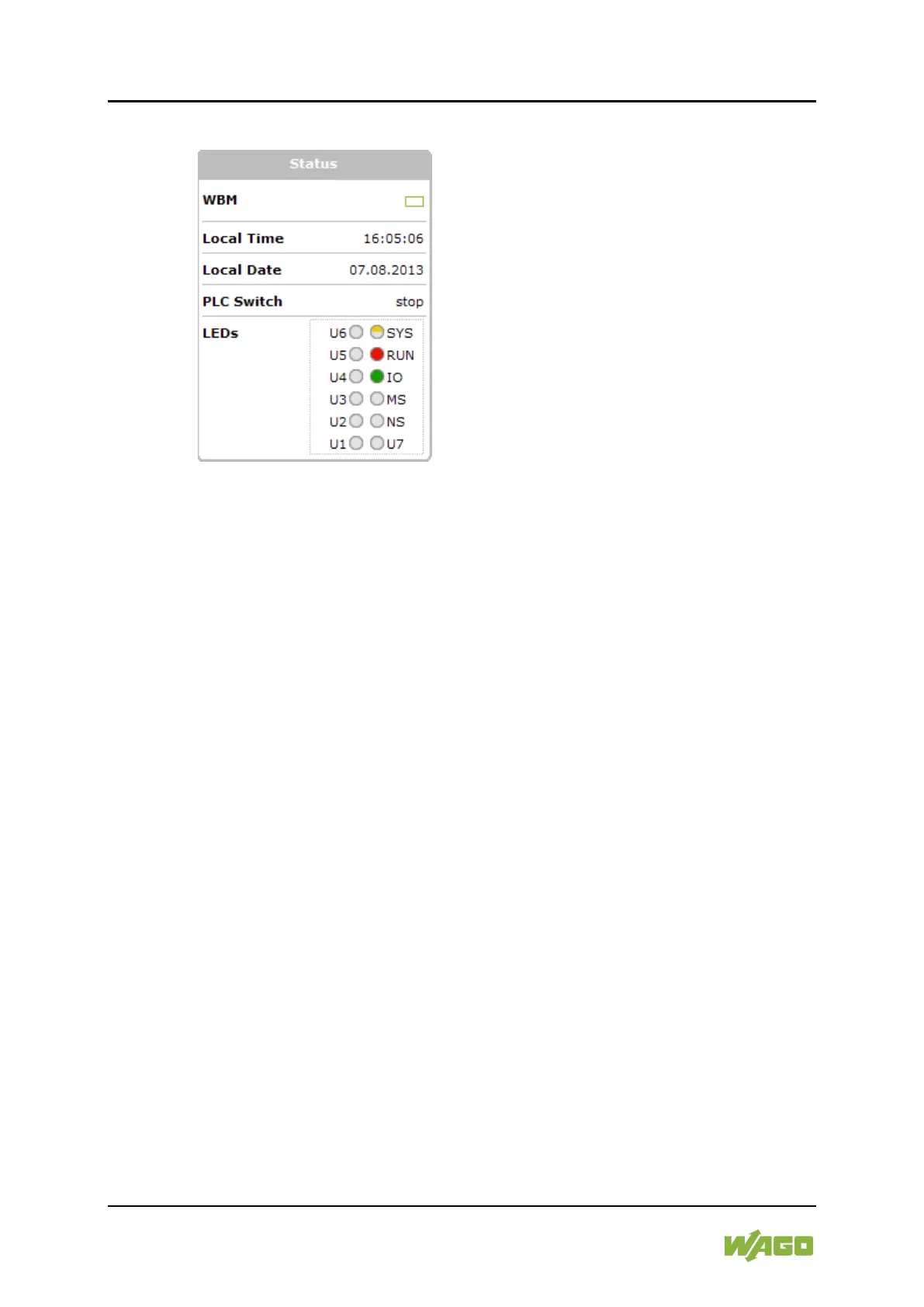

Figure 33: WBM Status Information (Example)
• WBM status:
This indicates whether the WBM is currently communicating with the device
in the background. In other words, one or more requests have been sent
and the browser is waiting for a response. Movement is then visible in the
graphic. This occurs when data is read on initial call-up of the page, when
the user has sent off a change form or when data is reloaded automatically
in cycles, e.g., the contents of the status area.
• Local Time:
Local time on the device
• Local Date:
Local date on the device
• PLC Switch:
Setting of the mode selector switch
• LEDs:
This indicates the status of the device LEDs. All LEDs are graphically
represented and are labeled with their particular designation (e.g., SYS,
RUN, ...). The following colors are possible:
- gray:
LED is off.
- full color (green, red, yellow, orange):
The LED is activated in the particular color.
- half color:
The LED is flashing in the corresponding color. The other half of the
surface is then either gray or also colored. The latter case indicates that the
LED is flashing sequentially in different colors.
