WAGO PFC100 - Changing an IP Address Using WAGO Ethernet Settings; Figure 27: WAGO Ethernet Settings - Starting Screen (Example)

WAGO-I/O-SYSTEM 750 Commissioning 85
750-8100 PFC100; 2ETH; ECO
Manual
Version 1.6.0, valid from FW Version 03.02.02(14)
7.3.3 Changing an IP Address using “WAGO Ethernet Settings”
The Microsoft Windows
®
application “WAGO Ethernet Settings” is a software
used to identify the controller and configure network settings.
Observe the software version!
To configure the controller use at least Version 6.4.1.1 dated 2015-06-29 of
“WAGO Ethernet Settings”!
You can use WAGO communication cables or WAGO radio adapters or even the
IP network for data communication.
1. Switch off the power supply to the controller.
2. Connect the 750-920 communication cable to the Service interface on the
controller and to a serial interface of your PC.
3. Switch the power supply to the controller on again.
4. Start the “WAGO Ethernet Settings” program.

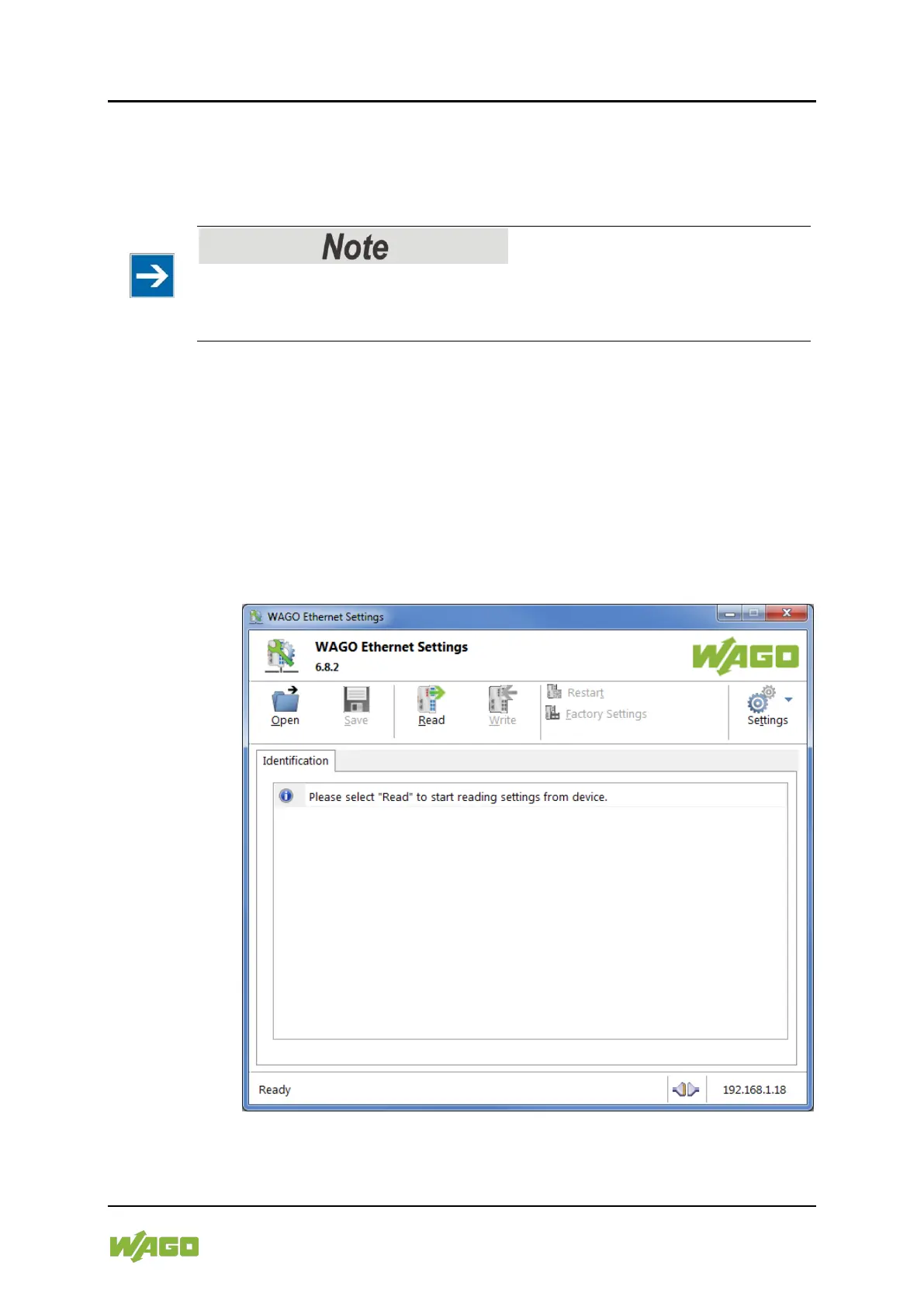

Figure 27: “WAGO Ethernet Settings” – Starting Screen (Example)
5. Click [Read] to read in and identify the connected controller.
