WAGO-I/O-SYSTEM 750 Commissioning 217
750-8100 PFC100; 2ETH; ECO
Manual
Version 1.6.0, valid from FW Version 03.02.02(14)
7.8.3.2 Network Tab
This tab is used to configure network settings.
Values can be changed in the “Input” column, while the parameters in use are
shown in the “Currently in use” column.

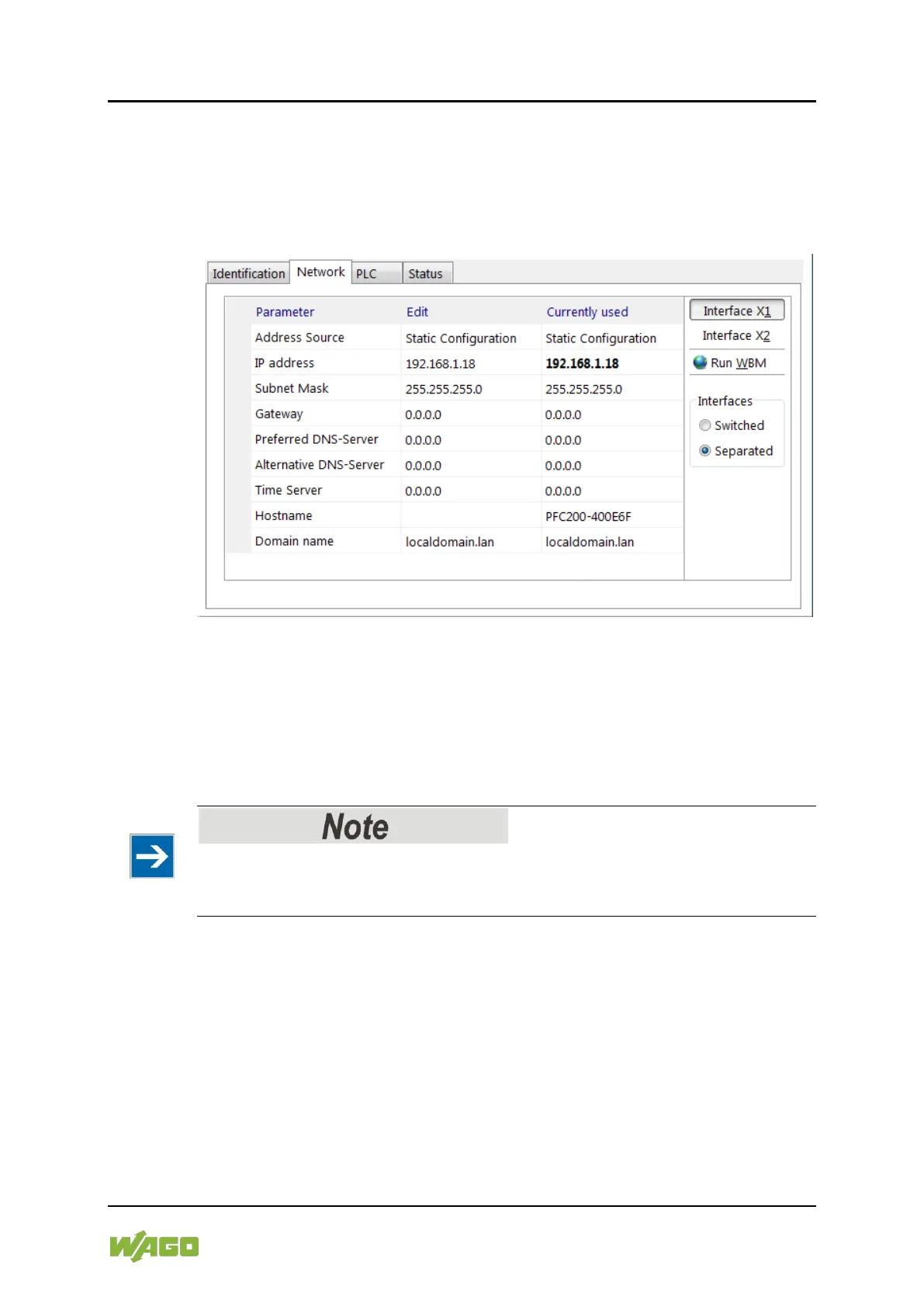

Figure 38: “WAGO Ethernet Settings” – Network Tab
Address Source
Specify how the controller will determine its IP address: Static, via DHCP or via
BootP.
IP address, subnet mask, gateway
Specify the specific network parameters for static configuration.
Restricted setting for default gateways!
Only the default gateway 1 can be set via “WAGO Ethernet Settings.”
The default gateway 2 can only be set in the WBM!
Preferred DNS server, alternative DNS server
Enter the IP address (when required) for an accessible DNS server when
identifying network names.
Time server
Specify the IP address for a time server if setting the controller's system time via
NTP.
Hostname
The host name of the controller is displayed here. In the controller's initial state,
this name is composed of the string “PFCx00” and the last three bytes of the
