WAGO-I/O-SYSTEM 750 Device Description 31
750-8100 PFC100; 2ETH; ECO
Manual
Version 1.6.0, valid from FW Version 03.02.02(14)
3.3.2 Service Interface
The service interface is located behind the flap.
The Service interface is used for communication with WAGO-I/O-CHECK and
“WAGO Ethernet Settings”.

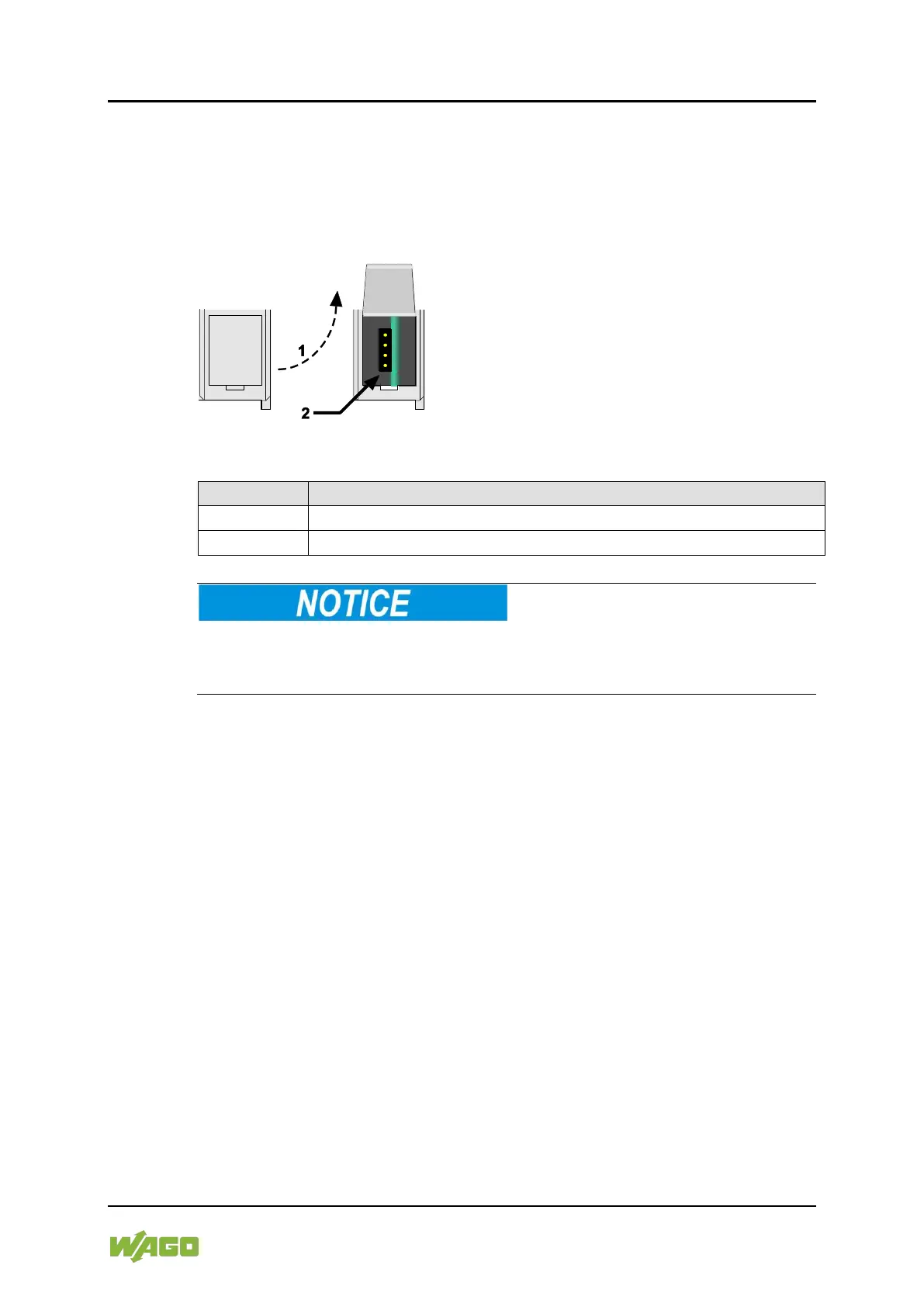

Figure 4: Service Interface (Closed and Open Flap)
Table 4: Service Interface
Number
Description
1
Open flap
2
Service interface
Device must be de-energized!
To prevent damage to the device, unplug and plug in the communication cable
only when the device is de-energized!
The connection to the 4-pin header under the cover flap can be realized via the
communication cables with the item numbers750-920 and 750-923 or via the
WAGO radio adapter with the item number 750-921.
