32 Device Description WAGO-I/O-SYSTEM 750
750-8100 PFC100; 2ETH; ECO
Manual
Version 1.6.0, valid from FW Version 03.02.02(14)
3.3.3 Network Connectors

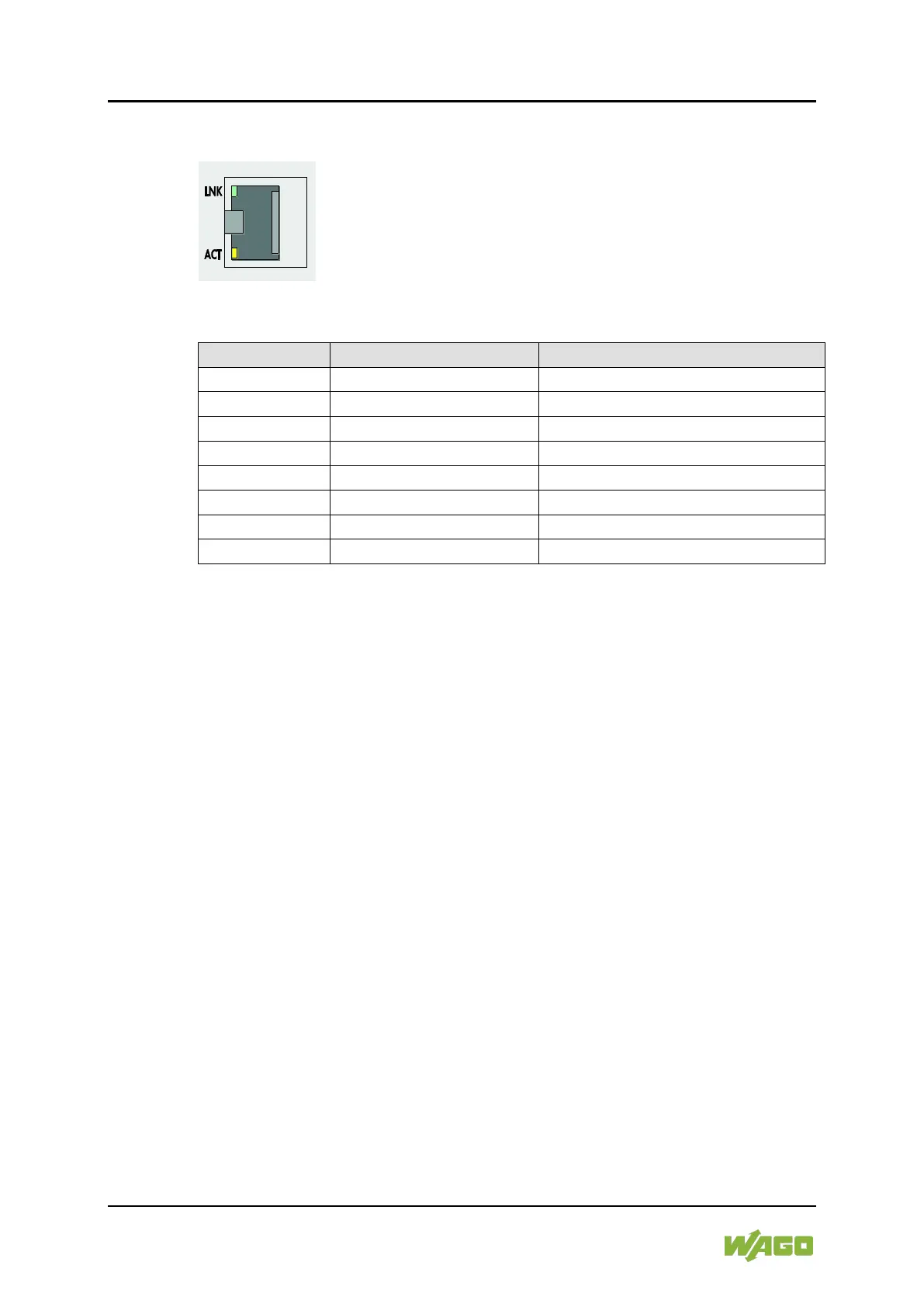

Figure 5: Network Connections – X1, X2
Table 5: Legend for Figure “Network Connections – X1, X2”
Contact
Signal
Description
1
TD +
Transmit Data +
2
TD −
Transmit Data −
3
RD +
Receive Data +
4
NC
Not assigned
5
NC
Not assigned
6
RD −
Receive Data −
7
NC
Not assigned
8
NC
Not assigned
