WAGO-I/O-SYSTEM 750 Commissioning 215

750-8100 PFC100; 2ETH; ECO

Manual

Version 1.6.0, valid from FW Version 03.02.02(14)

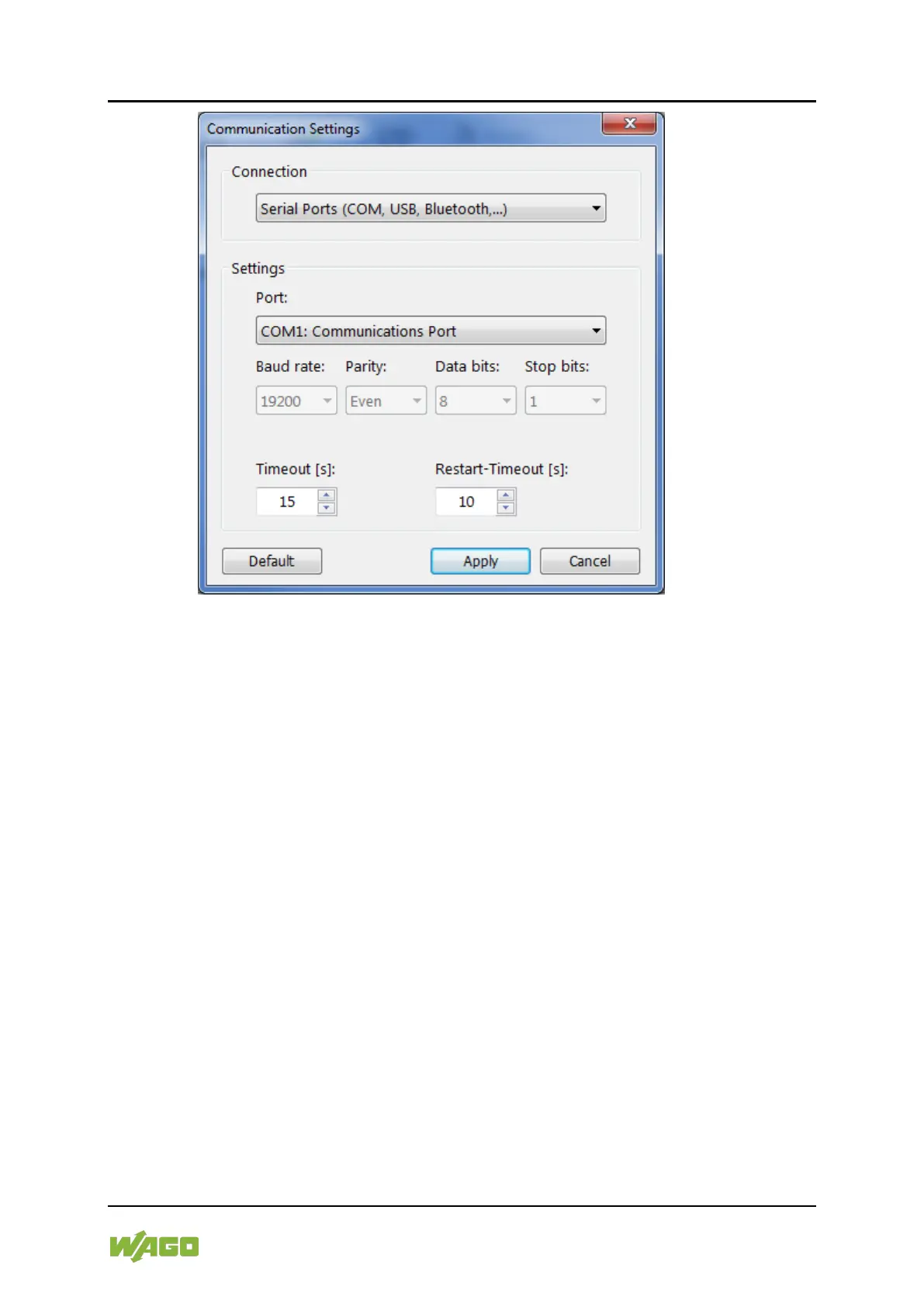

Figure 36: “WAGO Ethernet Settings” – Communication Link

Once you have configured “WAGO Ethernet Settings” and have clicked [Apply],

connection to the controller is established automatically.

If “WAGO Ethernet Settings” has already been started with the correct

parameters, you can establish connection to the controller by clicking [Read].
