WAGO-I/O-SYSTEM 750 Commissioning 99
750-8100 PFC100; 2ETH; ECO
Manual
Version 1.6.0, valid from FW Version 03.02.02(14)
7.8.1.2 General Information about the Page

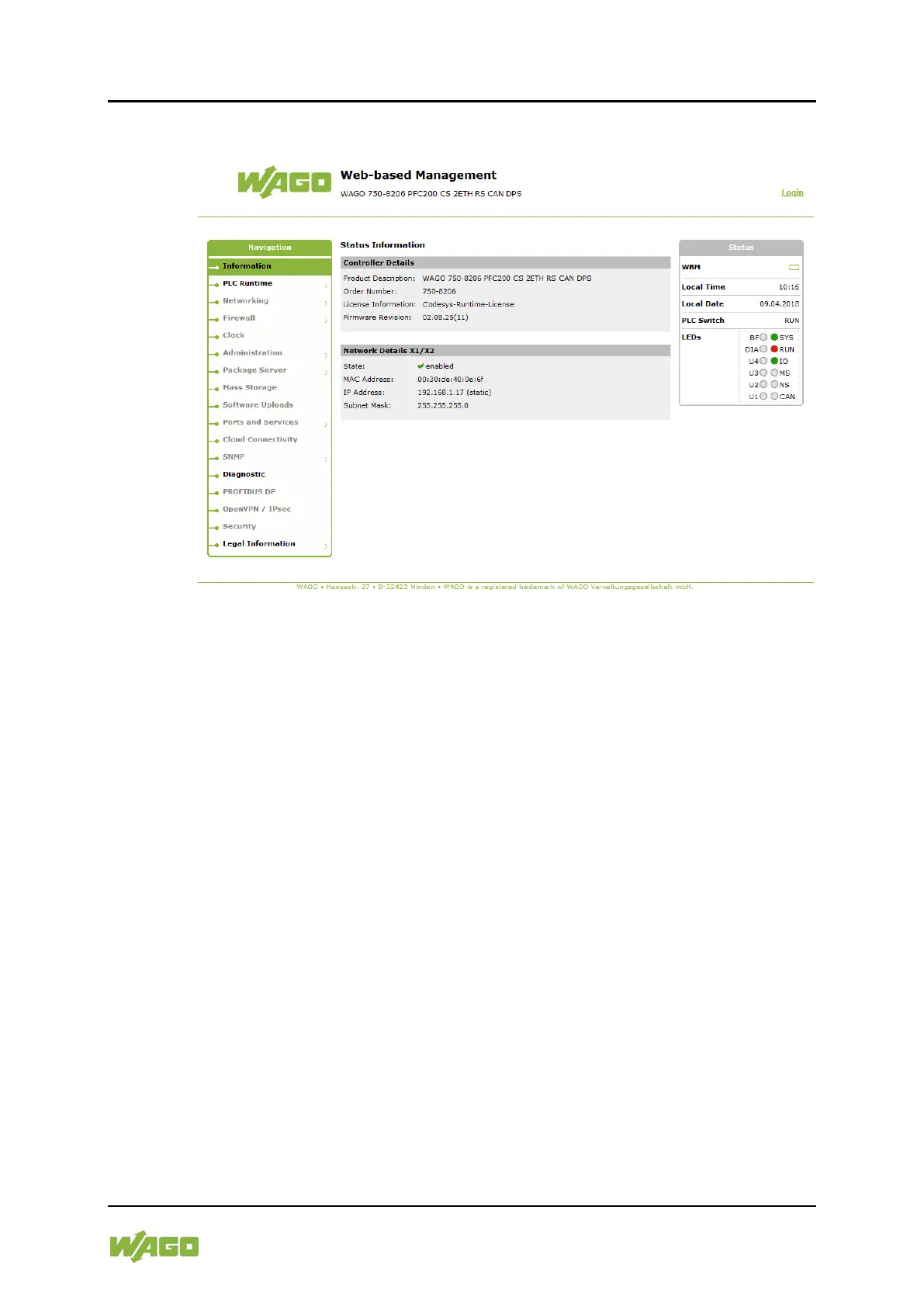

Figure 32: WBM Browser Window (Example)
The device name is displayed in the header of the browser window. When the
user has logged out, a [Login] button is displayed on the right in the header line,
when logged in a [Logout] button is displayed.
The navigation tree is shown on the left of the browser window. You can use this
navigation tree to go to the individual pages and, where provided, subpages
included in these pages. Some pages can only be called after a successful login.
To log in click the [Login] button and enter the user name and password in the
login window.
