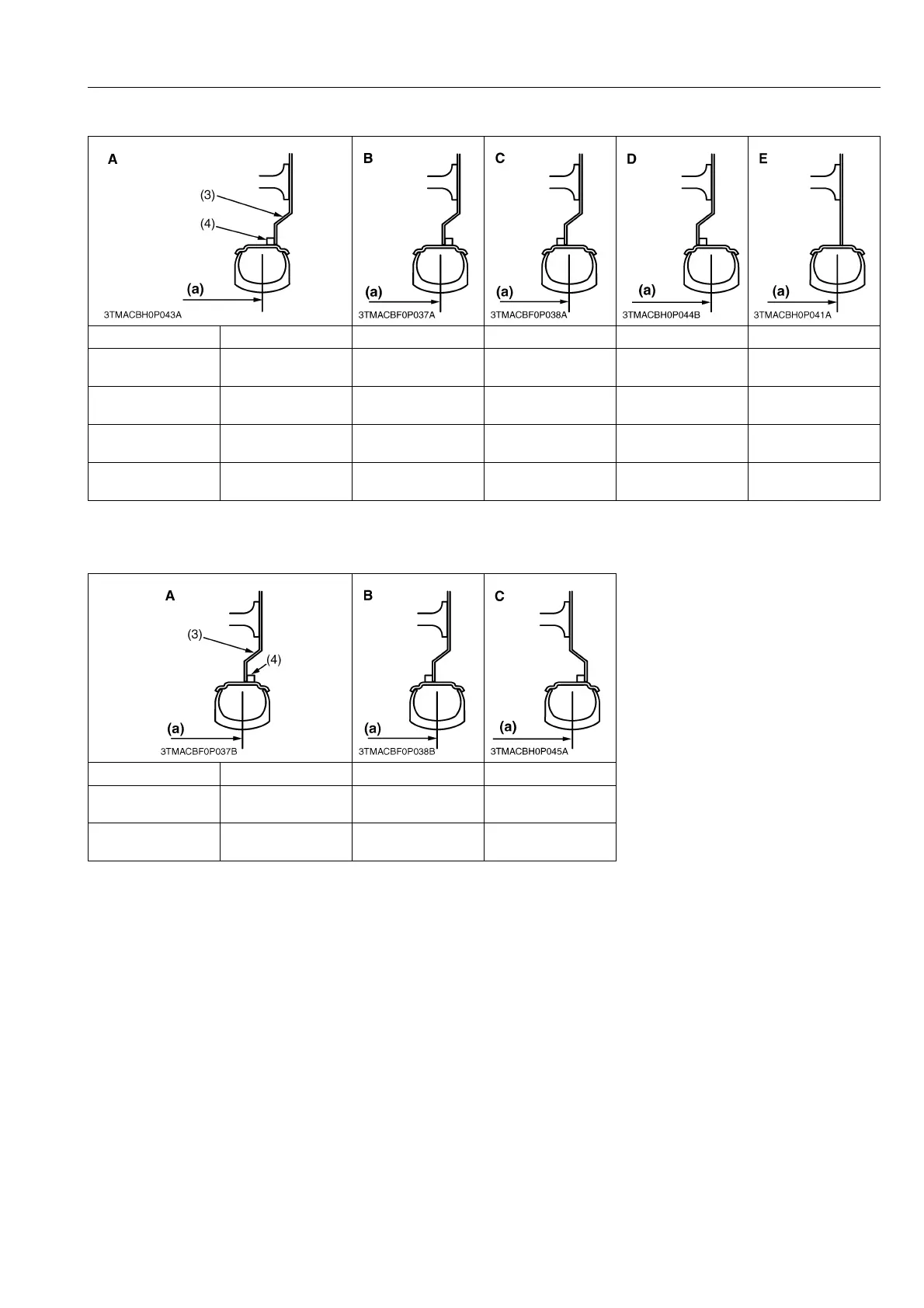

Tread (a) A B C D E
9.5R20
1435 mm
56.50 in.
1545 mm
60.83 in.
–––
12.5/80-18––––
1584 mm
62.36 in.
320/70R20 –
1441 mm
56.73 in.
–
1495 mm
58.86 in.
–
320/85R20
1450 mm
57.09 in.
–
1537 mm
60.51 in.
––
(1) Front Wheel Mounting Nut
(2) Front Disc Mounting Nut
(3) Front Wheel Disc (4) Front Wheel Rim (a) Tread
Tread (a) A B C
9.5R20
1370 mm
53.94 in.
1385 mm
54.53 in.
1395 mm
54.92 in.
320/70R20
1385 mm
54.53 in.
1365 mm
53.74 in.
1414 mm
55.71 in.
(1) Front Wheel Mounting Nut
(2) Front Disc Mounting Nut
(3) Front Wheel Disc (4) Front Wheel Rim (a) Tread
