wsm M7040 - 4 Checking and Adjusting; Traveling Clutch

CLUTCH
M6040, M7040, WSM
2-S4
4. CHECKING AND ADJUSTING
[1] TRAVELING CLUTCH
(1) ROPS Model

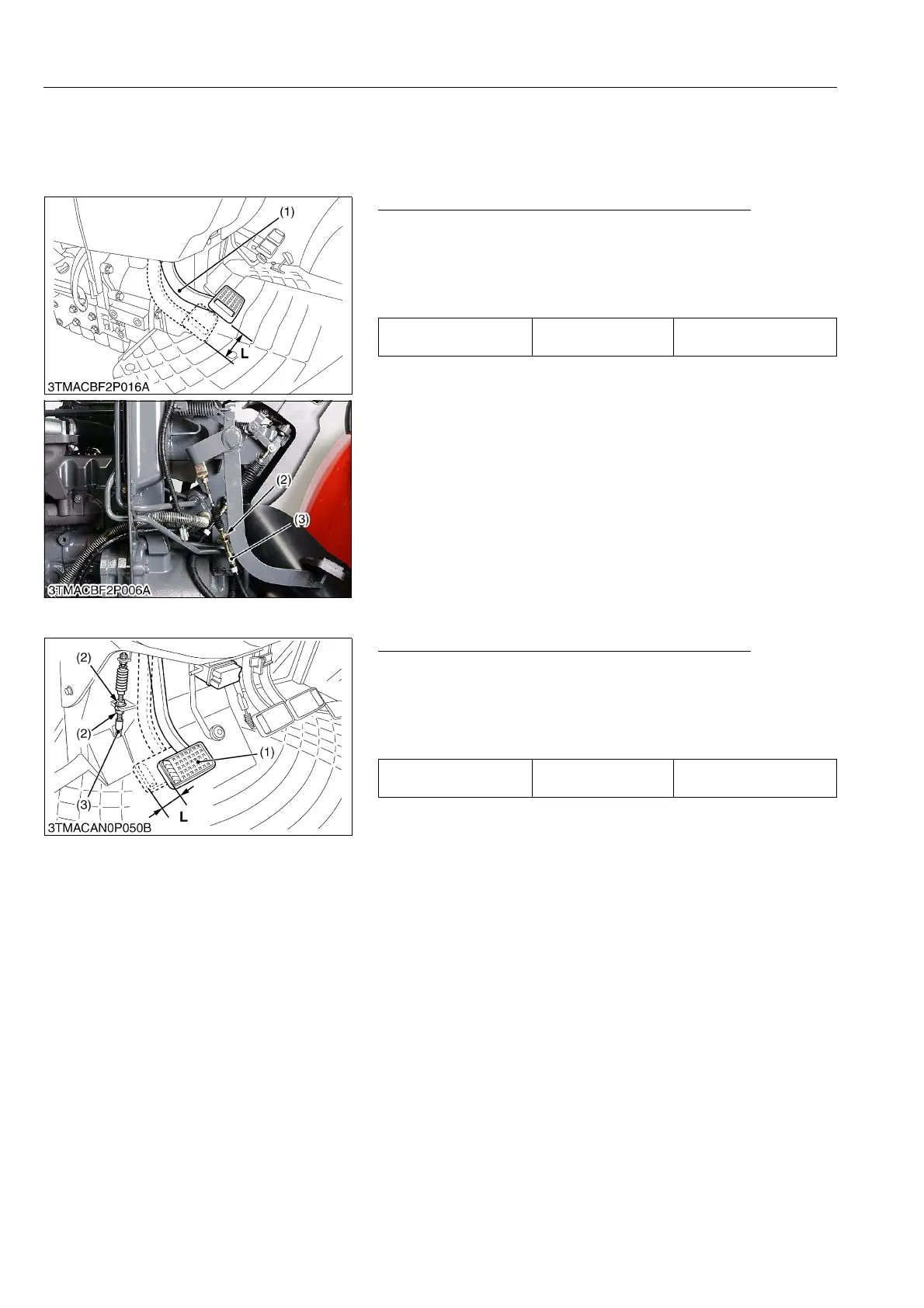

Clutch Pedal Free Travel (Hydraulic Shuttle Model)
1. Measure the clutch pedal free travel "L".
2. If adjustment is needed, change with clutch wire cable (3) lock
nut (2) so that the free travel becomes 15.0 to 25.0 mm (0.59 to
0.98 in.).
3. After adjustment is completed secure the nut.
9Y1210143CLS0004US0
(2) CABIN Model
Clutch Pedal Free Travel (Hydraulic Shuttle Model)
1. Measure the clutch pedal free travel "L".
2. If adjustment is needed, change with clutch wire cable (3)
retaining nut (2) so that the free travel becomes 15.0 to 25.0 mm
(0.59 to 0.98 in.).
3. After adjustment is completed secure the nut.
9Y1210143CLS0005US0
Clutch pedal free travel
"L"
Factory specification
15 to 25 mm
0.59 to 0.98 in.
(1) Clutch Pedal
(2) Lock Nut
(3) Clutch Wire Cable
L: Free Travel
Clutch pedal free travel
"L"
Factory specification
15 to 25 mm
0.59 to 0.98 in.
(1) Clutch Pedal
(2) Nut
(3) Clutch Wire Cable
L: Free Travel
KiSC issued 07, 2012 A
