FRONT AXLE
M6040, M7040, WSM
6-S11

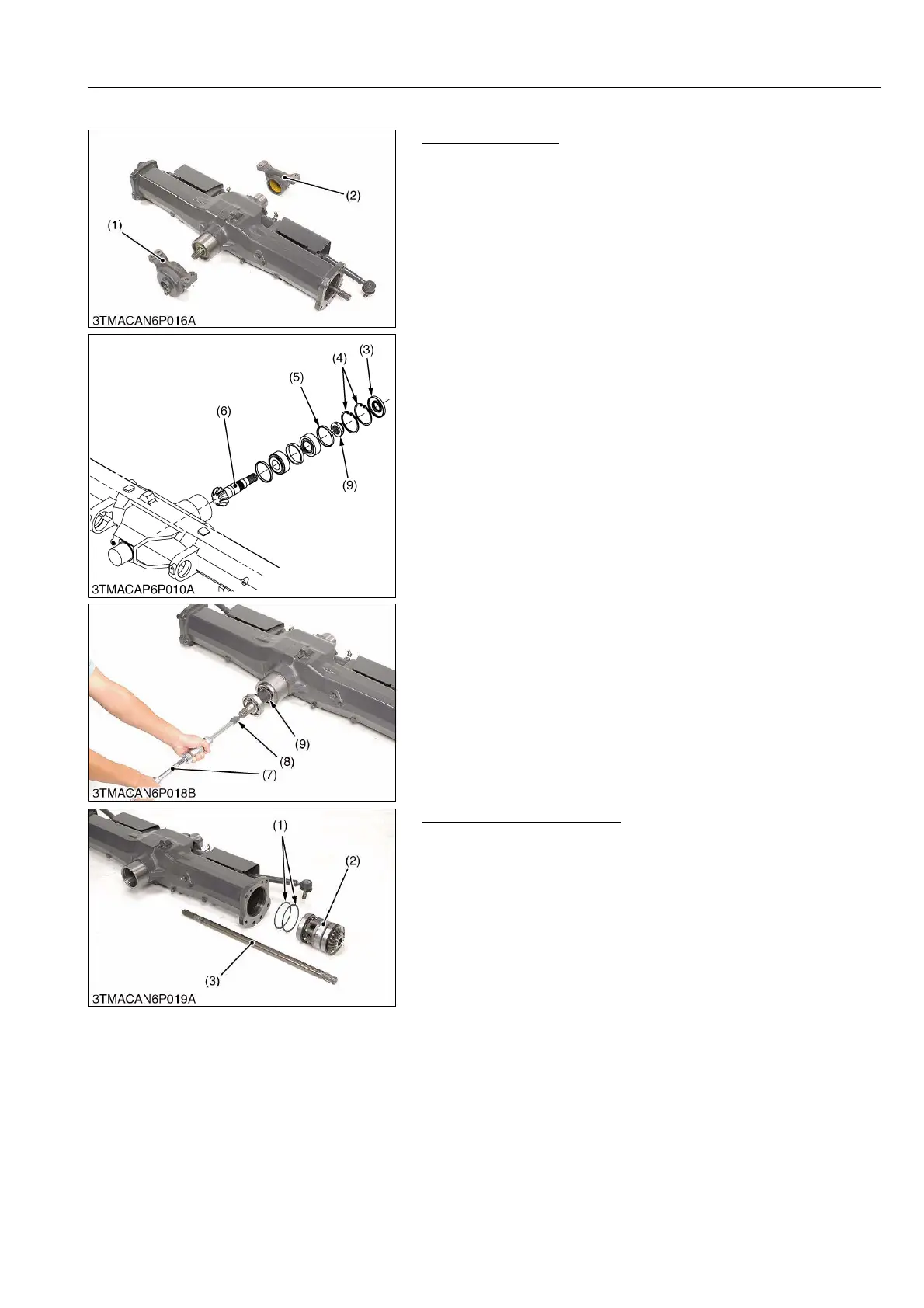

(2) Removing Differential Gear and Bevel Pinion Shaft
Bevel Pinion Shaft
1. Remove the front bracket (2) and rear bracket (1).
2. Remove the oil seal (3), internal circlip (4).
3. Pull the bevel pinion shaft (6) using a slide hammer (8).
(When reassembling)
• Replace oil seal (3) with new one.
• Install the oil seal (3) to the front axle case so that its lip faces
the inward.
• Apply grease to the DX bushing for bracket (1), (2).
• Be sure to adjust the spiral bevel pinion shaft turning torque with
lock nut (9) after assemble the spiral bevel pinion shaft
assembly. (See page 6-S17.)
(Reference)
• Adaptor for slide hammer: M6 pitch 1.0 mm. (See page G-66.)
9Y1210143FAS0019US0
Differential Gear Assembly
1. Draw out the both yoke shafts.
2. Tap out the differential gear assembly (2) and shim (1) to R.H.
side.
9Y1210143FAS0020US0
(1) Rear Bracket
(2) Front Bracket
(3) Oil Seal
(4) Internal Circlip
(5) Collar
(6) Bevel Pinion Shaft
(7) Adaptor for Slide Hummer
(8) Slide Hammer
(9) Lock Nut
(1) Shim
(2) Differential Gear Assembly
(3) Yoke Shaft (R.H.)
To Next Page
