TRANSMISSION
M6040, M7040, WSM
3-S6
4. CHECKING AND ADJUSTING
[1] SHUTTLE LEVER
CAUTION
• Park the machine on a firm, flat and level surface, set the parking brake and place the gear shift in neutral.
• Stop the engine and remove the key before checking and adjusting.

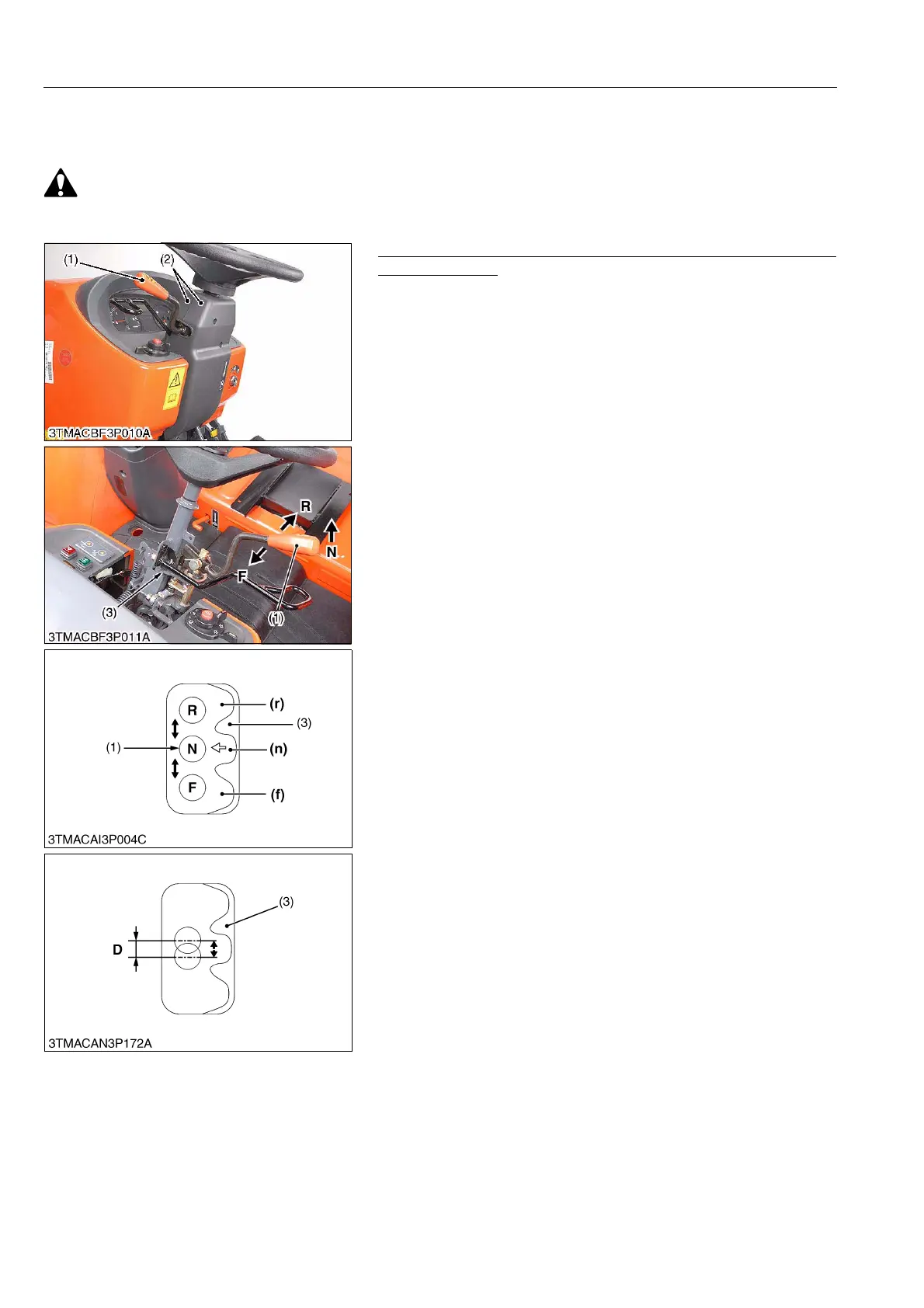

Adjusting Shuttle Valve Neutral Position and Lever Guide
Neutral Position
1. Remove the steering post cover (2).
2. The shuttle valve spool is provided with F, N and R ball detents.
(Lift the shuttle lever (1) and slowly move it to the F and R
directions until you feel the lever clicking at the ball detents.)
3. The shuttle lever guide (3) also has the f, n and r grooves for the
shuttle lever.
4. In this adjustment procedure, make alignment between the
shuttle valve neutral detent position and shuttle lever guide
groove N.
5. Place the shuttle lever to the neutral position.
6. Lift the shuttle lever (1) then move it reverse and forward, and
confirm the free play "D" of the shuttle lever (1) at neutral
position.
(To be continued)
(1) Shuttle Lever
(2) Steering Post Cover
(3) Shuttle Lever Guide
F: Forward
R: Reverse
N: Neutral
D: Free Play
(f) Groove F
(n) Groove N
(r) Groove R
