wsm M7040 - Disassembling and Assembling; Removing Master Cylinder (ROPS Model)

BRAKES
M6040, M7040, WSM
5-S8

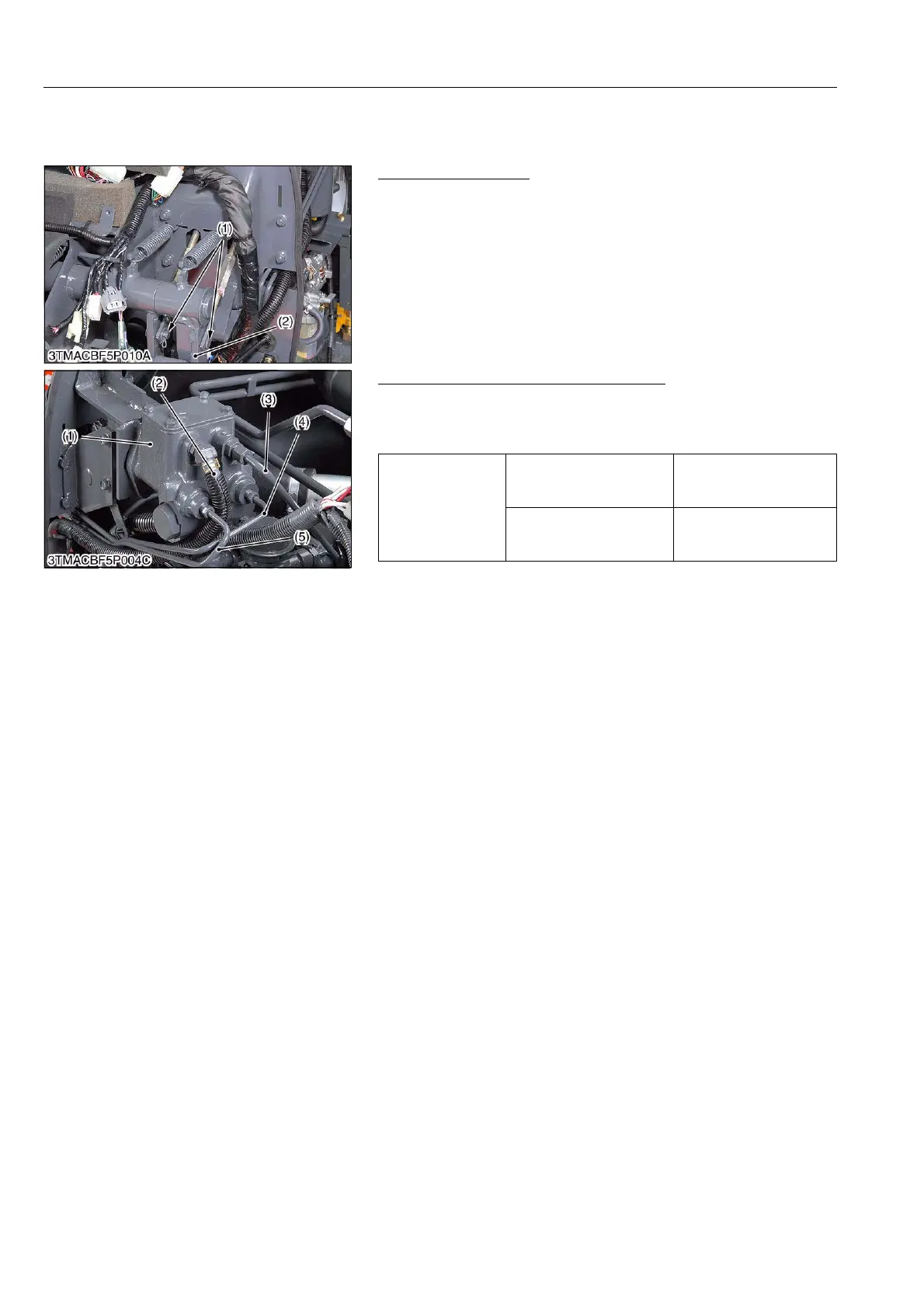

[2] DISASSEMBLING AND ASSEMBLING
(1) Removing Master Cylinder (ROPS Model)
Master Cylinder Rod
1. Remove the rear bonnet.
2. Remove the master cylinder rod pin (1) from brake pedal (2).
9Y1210143BRS0011US0
Brake Pipes and Master Cylinder Pipes
1. Remove the master cylinder pipe (3) and master cylinder return
hose (2) from the master cylinder assembly (1).
2. Remove the brake pipe L.H. (5) and R.H. (4).
9Y1210143BRS0012US0
(1) Pin (2) Brake Pedal
Tightening torque
Brake pipe retaining nut
16.0 to 24.0 N·m
1.6 to 2.5 kgf·m
11.8 to 17.7 lbf·ft
Master cylinder pipe
retaining nut
49.0 to 68.6 N·m
5.0 to 7.0 kgf·m
36.2 to 50.6 lbf·ft
(1) Master Cylinder Assembly
(2) Master Cylinder Return Hose
(3) Master Cylinder Pipe
(4) Brake Pipe R.H.
(5) Brake Pipe L.H.
KiSC issued 07, 2012 A
