wsm M7040 - Range Gear Shift

TRANSMISSION
M6040, M7040, WSM
3-S11

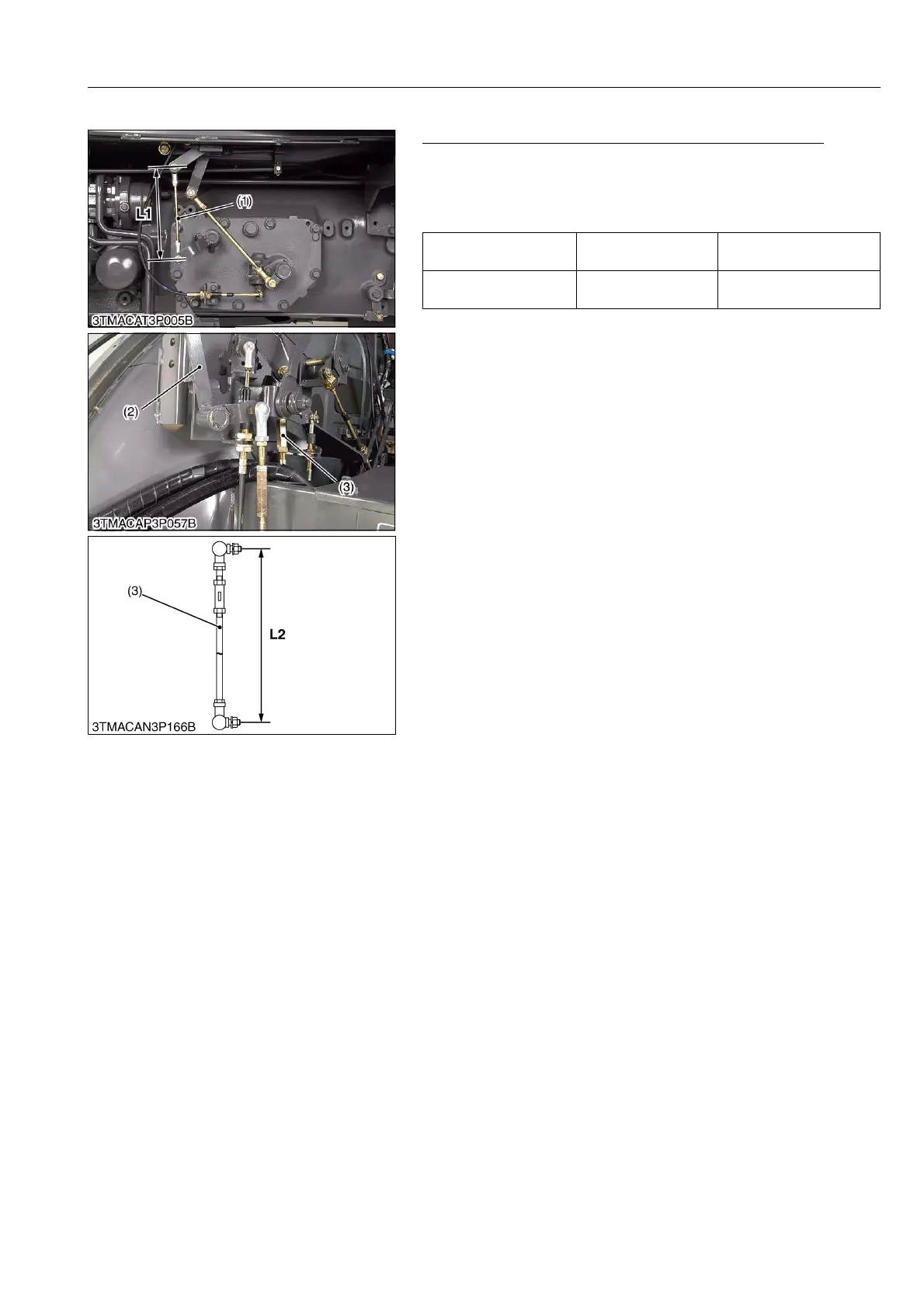

(2) Range Gear Shift
Checking Function of Range Shift (CABIN Model Only)
1. Check the function of the range gear shift.
• Hi and Lo position.
2. If shift feels abnormal, check the length of range gear shift rod
1 (3) and 2 (1).
9Y1210143TRS0008US0
Length of range gear
shift rod 2 "L1"
Factory specification
193 mm
7.6 in.
Length of range gear
shift rod 1 "L2"
Factory specification
368 mm
14.49 in.
(1) Range Gear Shift Rod 2
(2) Range Gear Shift Lever
(3) Range Gear Shift Rod 1
L1: Range Gear Shift 1 Length
L2: Range Gear Shift 2 Length
KiSC issued 07, 2012 A
