TRANSMISSION
M6040, M7040, WSM
3-S10

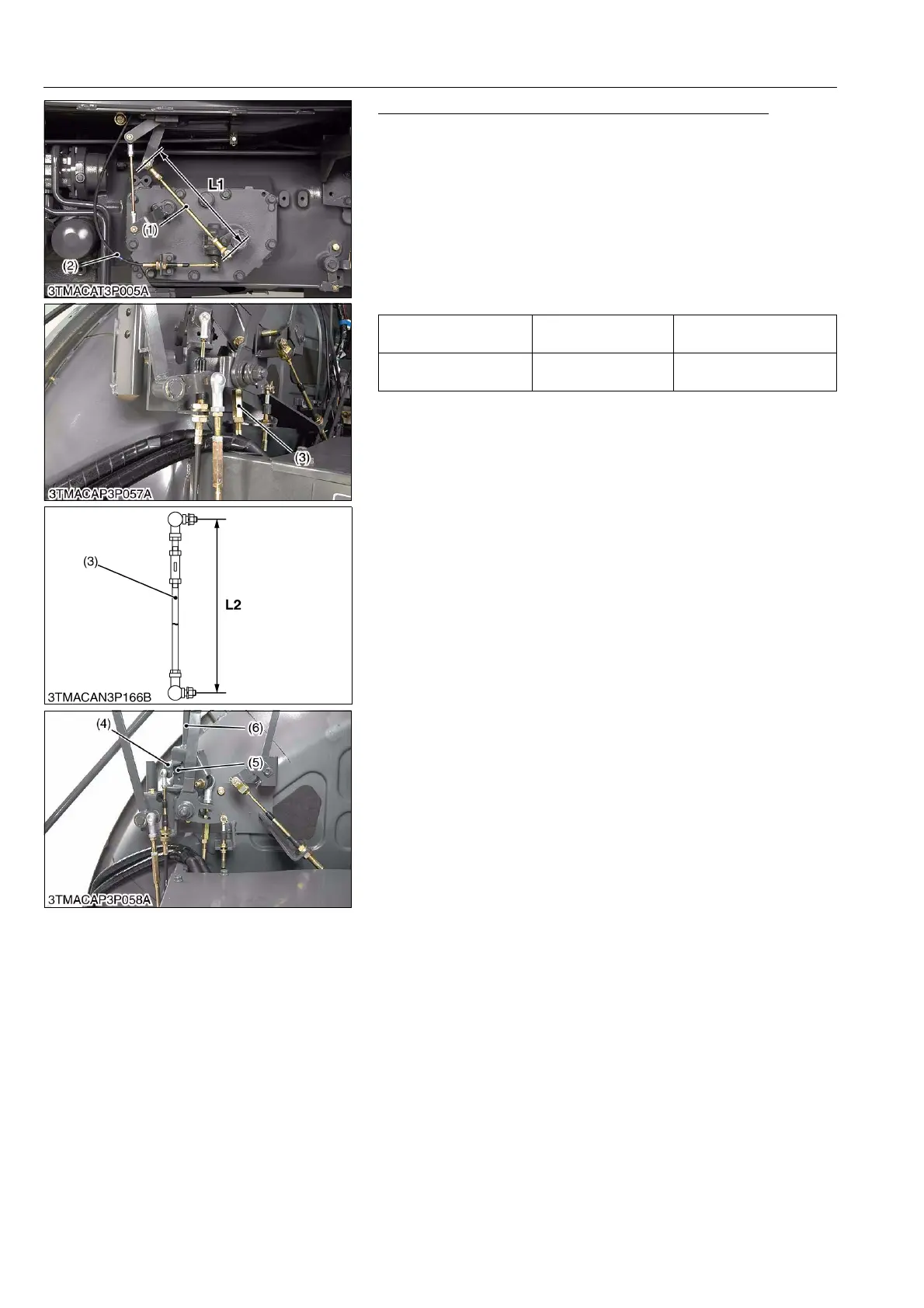

Checking Function of Main Gear Shift (CABIN Model)
1. Check the function of the main gear shift.
• Neutral position to 1st gear position.
• Neutral position to 2nd gear position.
• Neutral position to 3rd gear position.
• Neutral position to 4th gear position.
2. If shifting is not smooth, check the length of main shift rod 2 (1)
and main shift rod 1 (3). Adjust the select cable (2) so that the
lever end (4) has contact with stopper (5) when main gear shift
lever operates to 1st-2nd direction and the main gear shift lever
is positioned in vertically at "neutral" position.
9Y1210143TRS0007US0
Length of main shift rod 1
"L1"
Initial adjustment
287 mm
10.95 in.
Length of main shift rod 2
"L2"
Factory specification
447 mm
17.6 in.
(1) Main Shift Rod 2
(2) Select Cable
(3) Main Shift Rod 1
(4) Lever End
(5) Stopper
(6) Main Gear Shift Lever
L1: Main Shift Rod 2 Length
L2: Main Shift Rod 1 Length
To Next Page
