wsm M7040 - Lever Combination Switch and Horn Switch (CABIN Model)

ELECTRICAL SYSTEM
M6040, M7040, WSM
9-S37

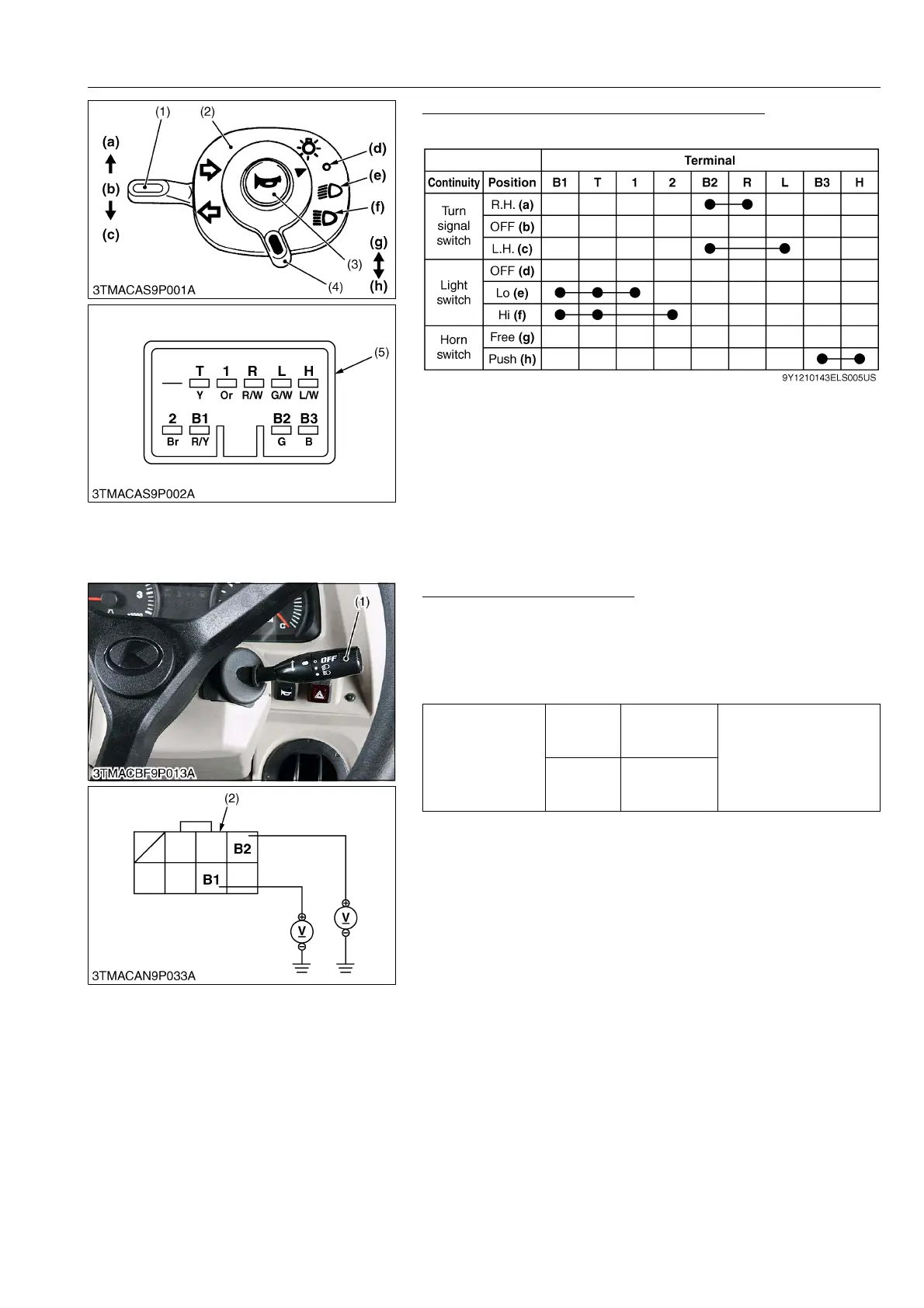

Checking Light Switch and Turn Signal Switch
1. Test the continuity through the switch with an ohmmeter.
9Y1210143ELS0059US0
(2) Lever Combination Switch and Horn Switch (CABIN Model)
Checking Connector Voltage
1. Disconnect the lever combination switch connector (1).
2. Measure the voltage with voltmeter across the connector
terminal B1 and chassis, across the terminal B2 and chassis.
3. If the voltage differs from the battery voltage, the wiring harness,
fuses or main switch is faulty.
9Y1210143ELS0060US0
(1) Turn Signal Switch
(2) Combination Switch
(3) Horn Switch
(4) Light Switch
(5) Combination Switch Connector
(Switch Side)
(a) Right Turn
(b) OFF
(c) Left Turn
(d) OFF
(e) Head Light (Lo)
(f) Head Light (Hi)
(g) Free
(h) Push
Voltage
Main
switch at
"OFF"
Terminal B1 –
Chassis
Approx. battery voltage
Main
switch at
"ON"
Terminal B2 –
Chassis
(1) Lever Combination Switch (2) Combination Switch Connector
(Wire Harness Side)
KiSC issued 07, 2012 A
