wsm M7040 - 1 Structure; F15;R15 Speed Transmission Model

TRANSMISSION
M6040, M7040, WSM
3-M1

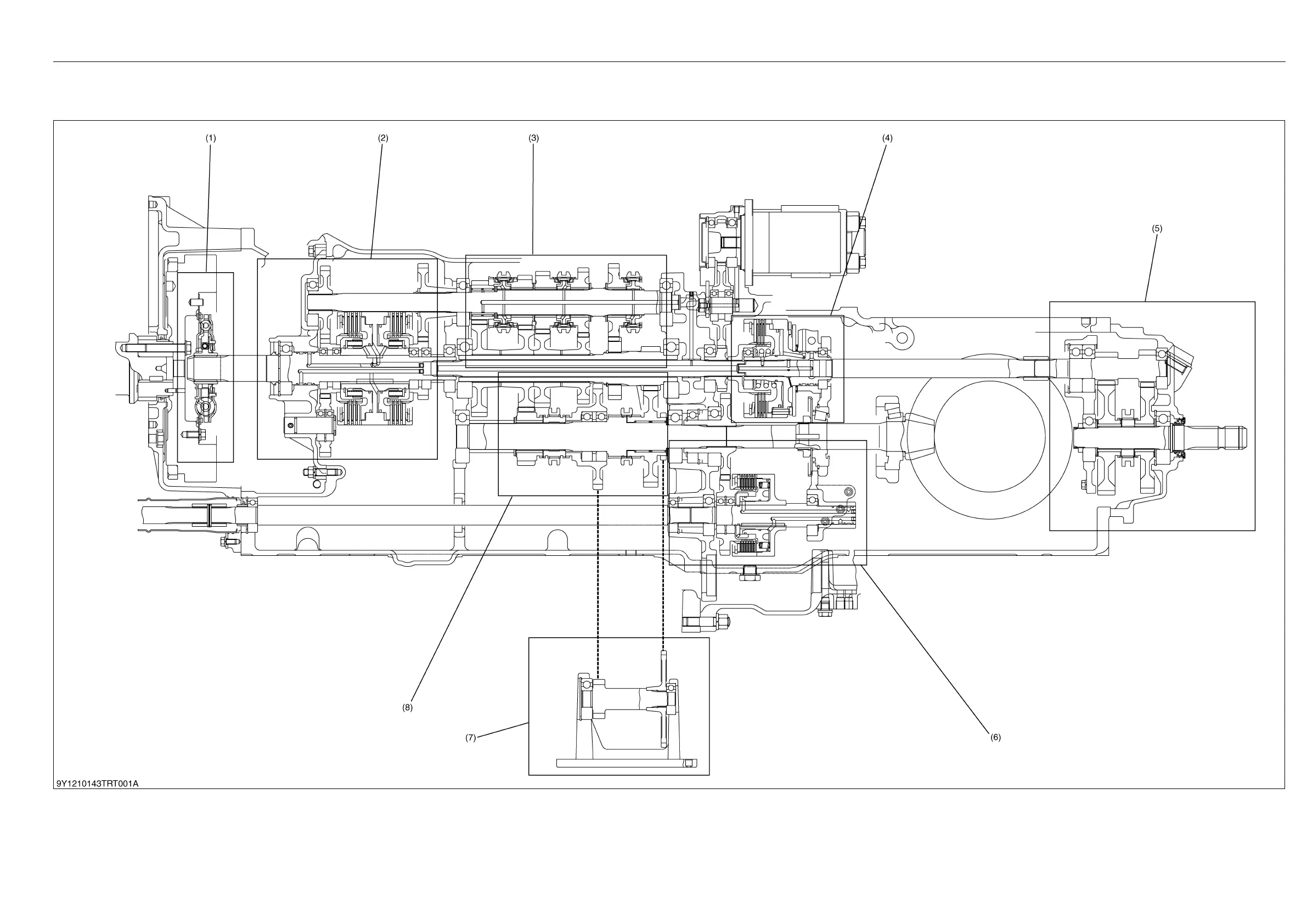

1. STRUCTURE
[1] F15/R15 SPEED TRANSMISSION MODEL
(1) Damper
(2) Hydraulic Shuttle Clutch
(3) Main Gear Shift Section
(4) PTO Clutch
(5) PTO Gear Case (6) Front Wheel Drive Section (7) Creep Gear (Cassette Type (8) Range Gear Shift Section
KiSC issued 07, 2012 A
