REAR AXLE
M6040, M7040, WSM
4-S4
4. DISASSEMBLING AND ASSEMBLING

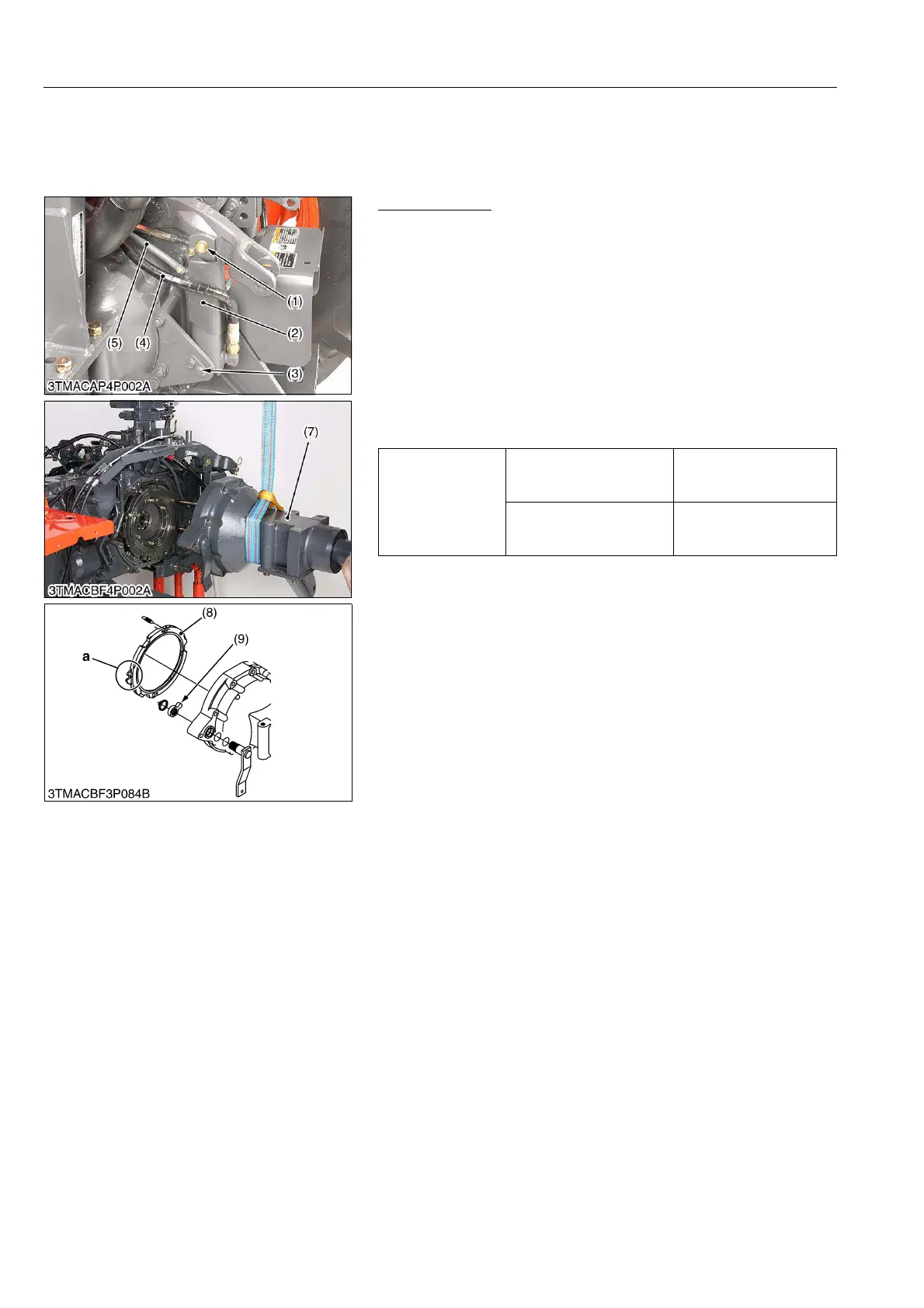

[1] SEPARATING REAR AXLE
(1) ROPS Model
Rear Axle Case
1. Refer to "5. DISASSEMBLING AND ASSEMBLING" on page
3-S14.
2. Disconnect the cylinder hose (4) and return hose (5).
3. Remove the pin 2 (3) and cylinder support (6).
4. Disconnect the hydraulic brake pipes.
5. Remove the rear axle case mounting screws and nuts.
6. Remove the rear axle assembly (7).
(When reassembling)
• Apply liquid gaskets (Three Bond 1206C or equivalent) to joint
face.
• Align the brake cam (9) and groove "a" of brake cam plate (8).
• Be sure to bleed the air from the hydraulic brake system.
9Y1210143RAS0004US0
Tightening torque
Rear axle mounting screw
(M14, 9T)
166.7 to 196.1 N·m
17.0 to 20.0 kgf·m
123.0 to 144.3 lbf·ft
Rear axle mounting nut
(M14, 6T)
124 to 147 N·m
12.6 to 15.0 kgf·m
91.2 to 108 lbf·ft
(1) Pin 1
(2) Hydraulic Cylinder
(3) Pin 2
(4) Cylinder Hose
(5) Return Hose
(6) Support
(7) Rear Axle Case Assembly
(8) Brake Cam Plate
(9) Brake Cam
a: Groove
To Next Page
