wsm M7040 - Clutch Housing; 1 St Shaft, 2 Nd Shaft and 3 Rd Shaft; Creep Gear Assembly

TRANSMISSION
M6040, M7040, WSM
3-S36

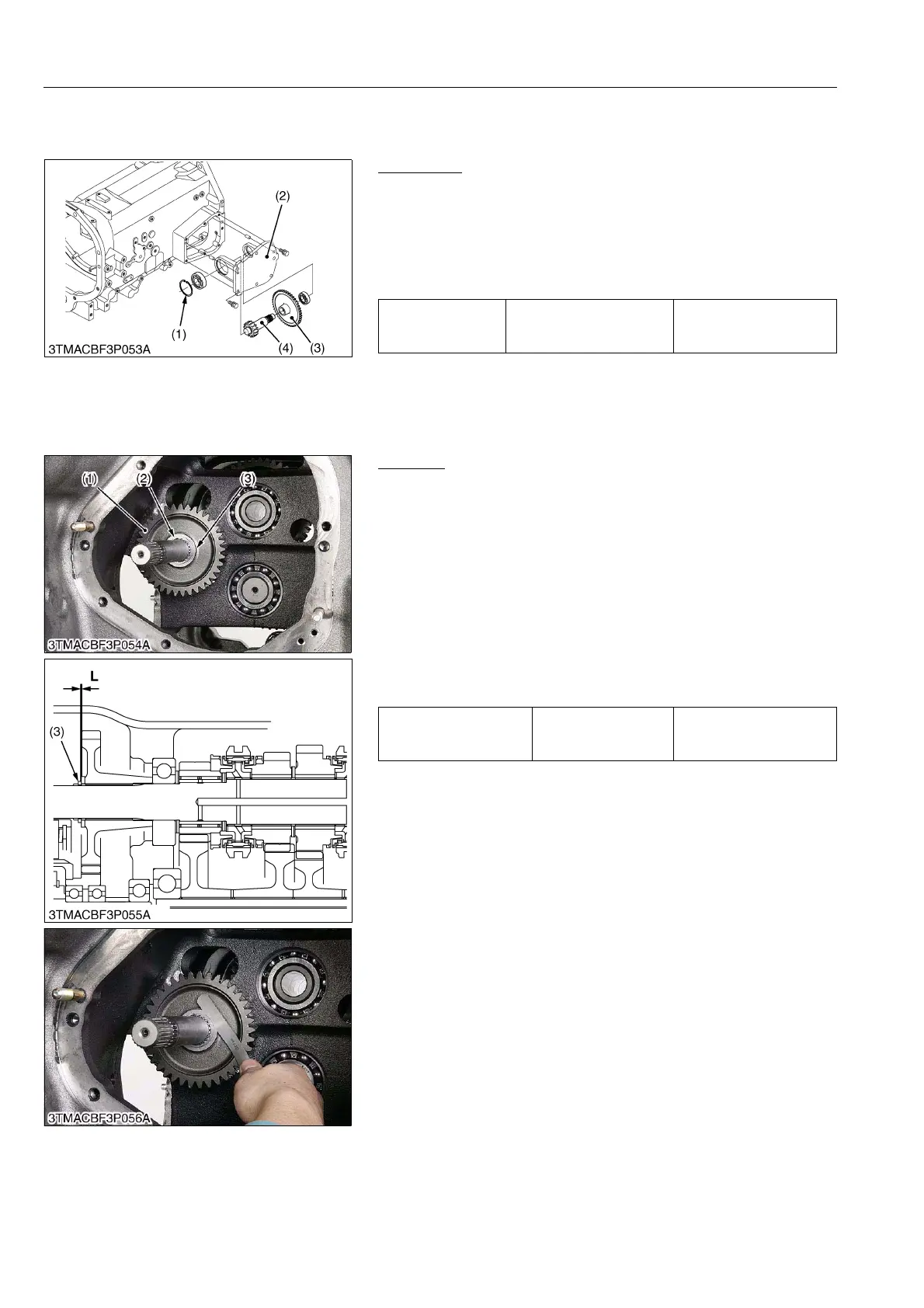

[9] CLUTCH HOUSING
(1) Creep Gear Assembly
Creep Gear
1. Remove the creep gear cover (2) as a unit.
2. Remove the internal circlip (1).
3. Tap out the creep gear shift (4) and remove the creep gear (3).
(When reassembling)
• Apply liquid gasket (Three Bond 1206C or equivalent) to joint
face.
9Y1210143TRS0061US0
(2) 1st Shaft, 2nd Shaft and 3rd Shaft
37T Gear
1. Remove the external circlip (2) and 37T gear (1).
(When reassembling)
• Check the clearance "L" between external circlip (1) and
adjusting collar (3).
• If the measurement is not within the factory specification, adjust
with shim.
(Reference)
• Thickness of adjusting collar (3).
3.00 mm (0.118 in.) [Code No.: 3C001-28410]
3.2 mm (0.126 in.) [Code No.: 3C001-28420]
3.4 mm (0.134 in.) [Code No.: 3C001-28430]
3.6 mm (0.142 in.) [Code No.: 3C001-28441]
9Y1210143TRS0062US0
Tightening torque Creep gear cover
48.1 to 55.8 N·m
4.9 to 5.7 kgf·m
35.5 to 41.2 lbf·ft
(1) Internal Circlip
(2) Creep Gear Cover
(3) Creep Gear
(4) Creep Gear Shaft
Clearance "L" Factory specification
Less than
0.2 mm
0.0078 in.
(1) 37T Gear
(2) External Circlip
(3) Adjusting Collar
L: Clearance
KiSC issued 07, 2012 A
