TRANSMISSION
M6040, M7040, WSM
3-S37

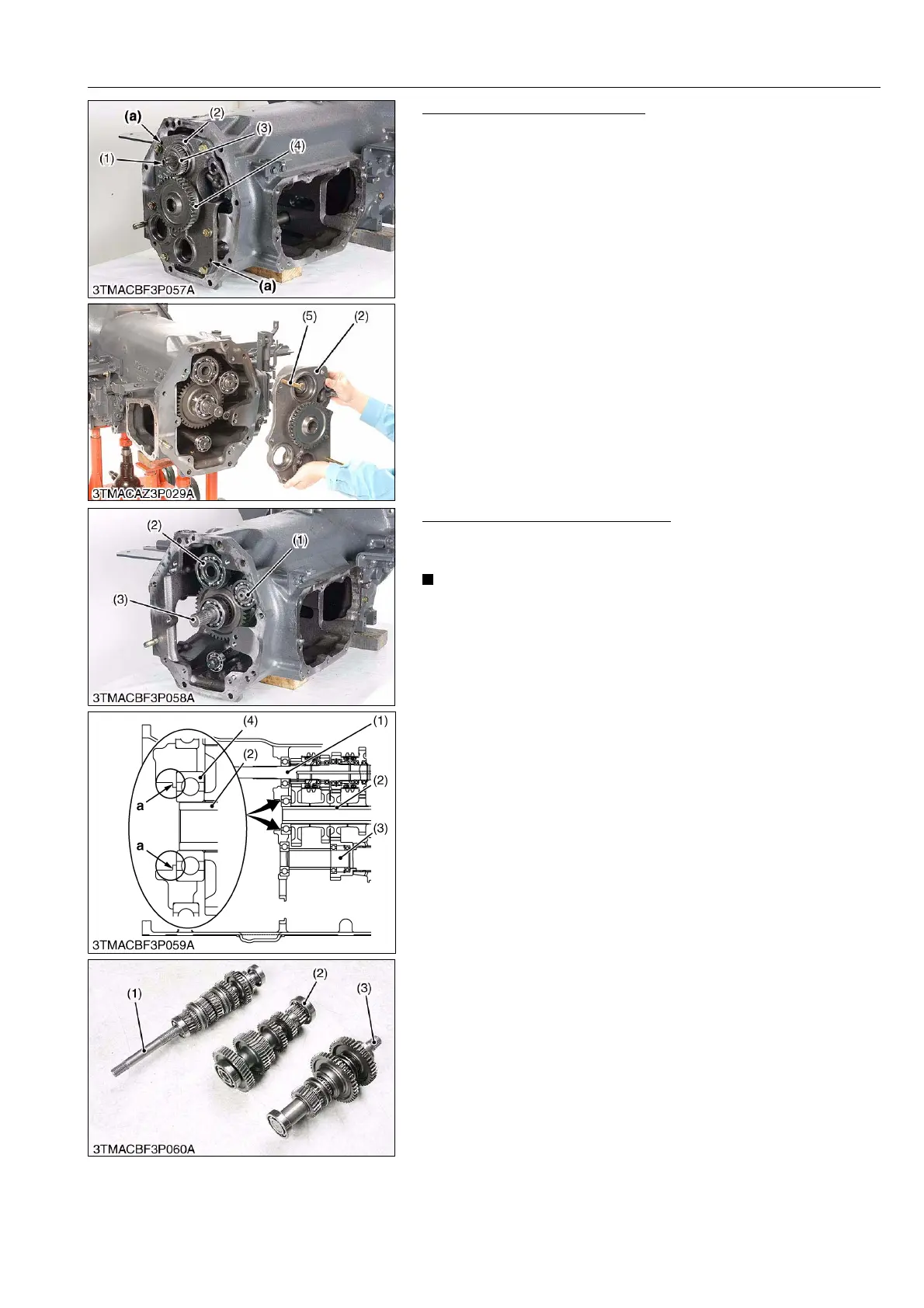

PTO Shaft and Bearing Holder
1. Pull out the PTO shaft (1) with 33T gear (3).
2. Remove the bearing holder mounting screws.
3. Screw in a M12 × 1.25 mm screw (5) into threaded hole (a) to
remove the bearing holder (2).
4. Remove the bearing holder (2) with 35T gear (4).
9Y1210143TRS0063US0
1st Shaft, 2nd Shaft and 3rd Shaft
1. Slowly pull out the three shafts with gears together.
2. Take out the three shafts from clutch housing case.
IMPORTANT
• Do not fall down the shaft when removing the shafts with
gears.
• Do not tap the bearing stop part "a" of clutch housing case,
it cause break a part of clutch housing case. Be sure to tap
at the inner race of bearing (4) or 2nd shaft when remove
the 2nd shaft assembly (2).
• For easily assemble, stand the clutch housing case and
assemble the 1st shaft assembly (1), 2nd shaft assembly (2)
and 3rd shaft assembly at same time.
9Y1210143TRS0064US0
(1) PTO Shaft
(2) Bearing Holder
(3) 33T Gear
(4) 35T Gear
(5) M12 × 1.25 mm Screw
(a) Threaded Hole (M12 x P1.25 mm)
(1) 1st Shaft Assembly
(2) 2nd Shaft Assembly
(3) 3rd Shaft Assembly
(4) Bearing
a: Bearing Stop Part
KiSC issued 07, 2012 A
