wsm M7040 - 2 Nd Shaft; 3 Rd Shaft; Removing DT Propeller Shaft

TRANSMISSION
M6040, M7040, WSM
3-S40

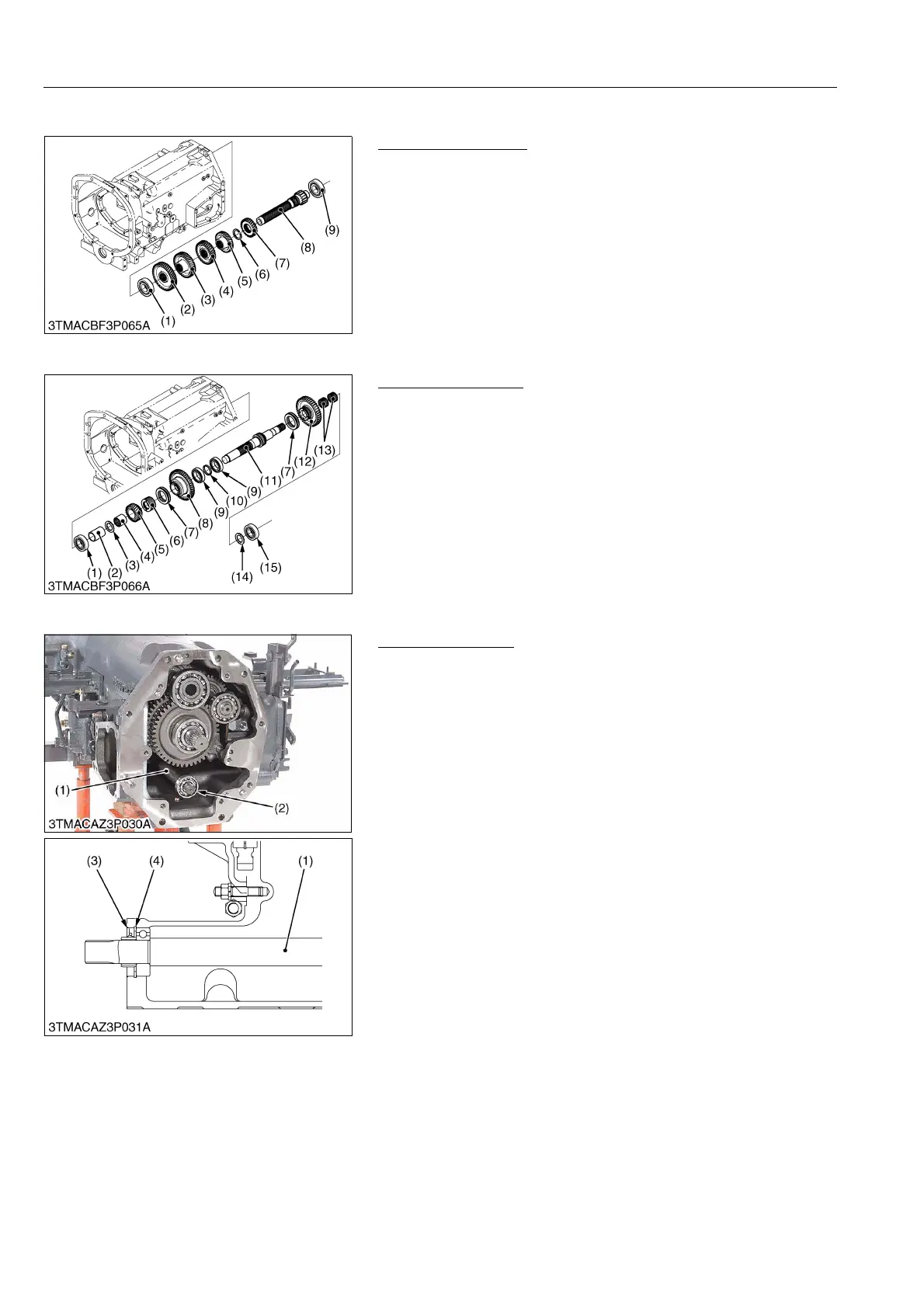

(4) 2nd Shaft
2nd Shaft Assembly
1. Remove the bearing (1) and (9).
2. Remove the gears.
9Y1210143TRS0066US0
(5) 3rd Shaft
3rd Shaft Assembly
1. Remove the bearing (1) and (15).
2. Remove the gears.
9Y1210143TRS0067US0
(6) Removing DT Propeller Shaft
DT Propeller Shaft
1. Remove the bearing (2).
2. Remove the oil seal (3) and internal circlip (4).
3. Tap out the DT propeller shaft (1) to the forward.
(When reassembling)
• Replace the oil seal (3) with new one.
9Y1210143TRS0068US0
(1) Bearing
(2) 46T Gear
(3) 41T Gear
(4) 41T Gear
(5) 46T Gear
(6) External Circlip
(7) 29T Gear
(8) 2nd Shaft
(9) Bearing
(1) Bearing
(2) Collar
(3) Thrust Collar
(4) Inner Race
(5) 27T Gear
(6) Spline Boss
(7) Shifter
(8) 44T Gear (Creep)
(9) Bearing
(10) Collar
(11) 16T Gear Shaft (3rd Shaft)
(12) 42T Gear
(13) Needle Bearing
(14) Thrust Collar
(15) Bearing
(1) DT Propeller Shaft
(2) Bearing
(3) Oil Seal
(4) Internal Circlip
