wsm M7040 - Parking Brake

BRAKES
M6040, M7040, WSM
5-S7
(2) Parking Brake
Adjusting Parking Brake Lever
CAUTION
• Stop the engine and chock the wheels before checking
parking brake.
1. Raise the parking brake lever (2) to the parking position while
counting the ratchet sound made by the parking brake lever (2).
2. If the free travel is not within factory specifications, loosen the
lock nut (1) and adjust the parking brake cable length with in
factory specifications.
3. Retighten the lock nut (1).
NOTE
• Assemble the parking brake wire (3) and (5) at the center of
thread with retaining nuts (4)
9Y1210143BRS0010US0
Parking brake lever free
travel
Factory specification
3 notches
(Ratchet sound 3)

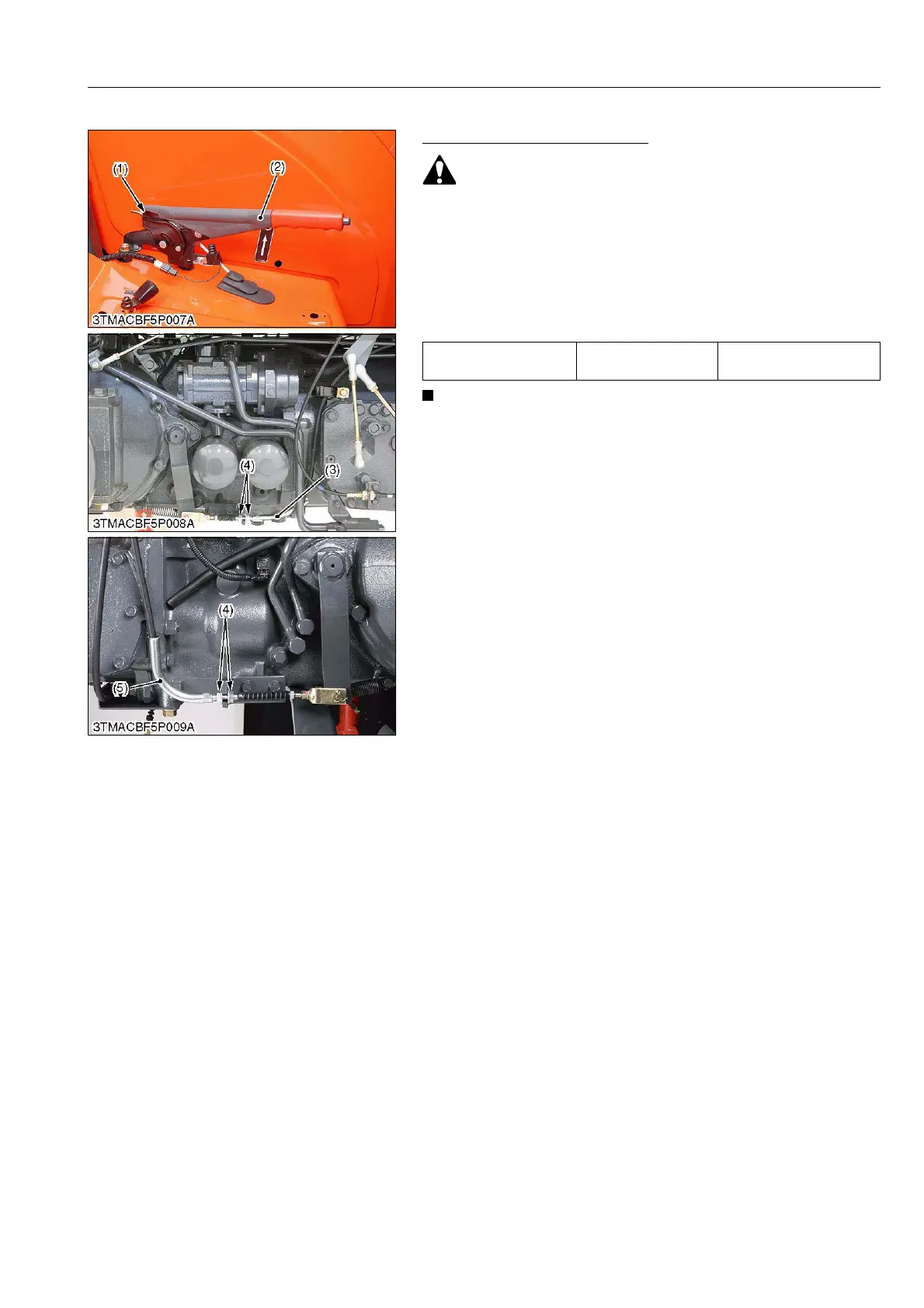

(1) Lock Nut
(2) Parking Brake Lever
(3) Parking Brake Wire R.H.
(4) Retaining Nut
(5) Parking Brake Wire L.H.
KiSC issued 07, 2012 A
