wsm M7040 - Ground Pto and Live Pto

TRANSMISSION
M6040, M7040, WSM
3-S50

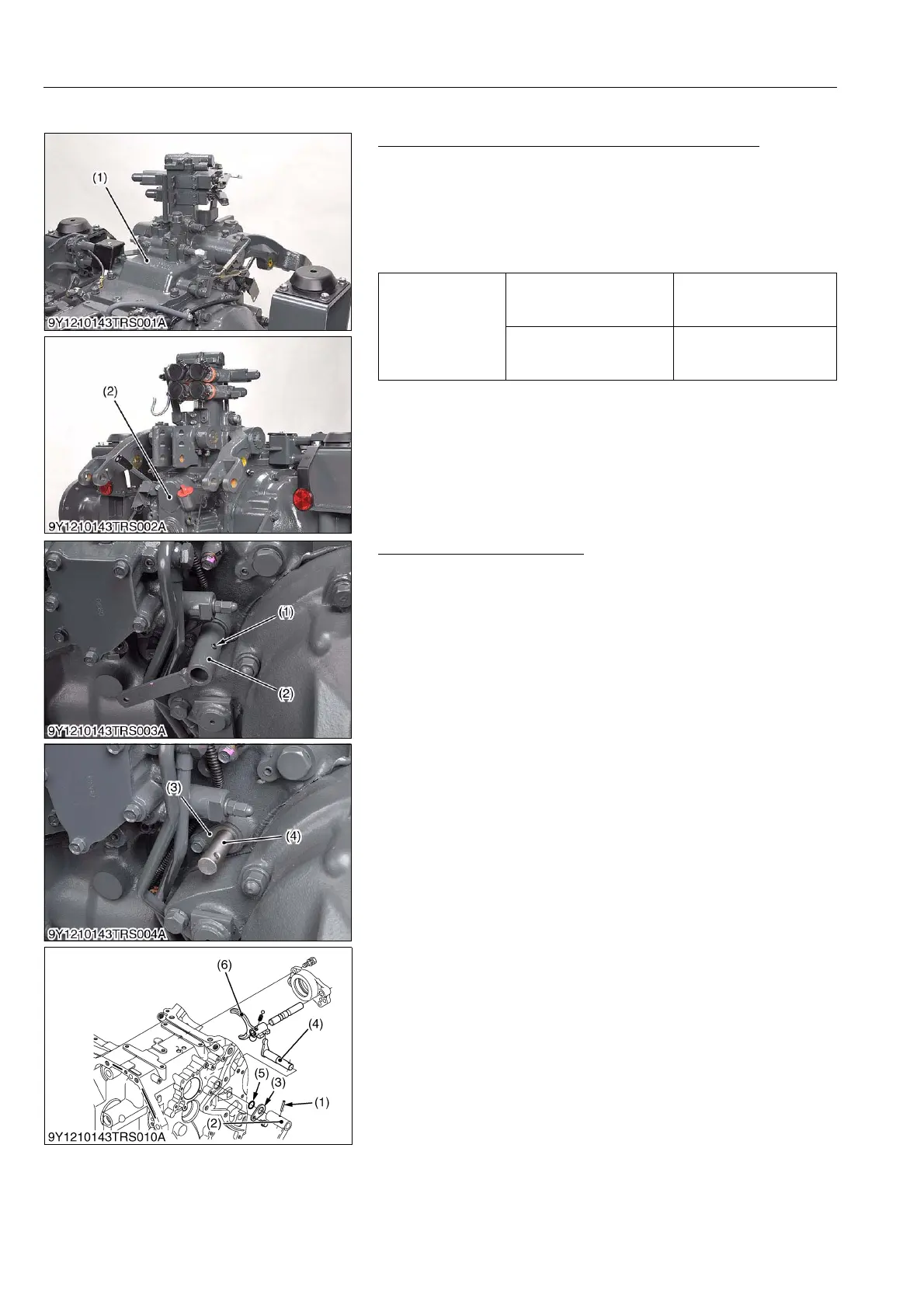

[13] GROUND PTO AND LIVE PTO
Top Cover Assembly and PTO Gear Case Assembly
1. Remove the top cover mounting screws and nuts.
2. Remove the top cover assembly (1).
3. Remove the PTO gear case (2) and PTO drive shaft as a unit.
(When reassembling)
• Apply liquid gaskets (Three Bond 1206C or equivalent) to joint
face of the top cover (1) and PTO gear case (2).
9Y1210143TRS0104US0
Ground PTO Lever and Arm
1. Remove the roll pin (1) and ground PTO lever (2).
2. Remove the retainer plate (3).
3. Pull the arm (4) to disconnect the ground PTO shift fork (6).
(When reassembling)
• Be sure to assemble the O-ring (5) properly.
• Be sure to assemble the arm (4) to the ground PTO shift fork (6).
9Y1210143TRS0105US0
Tightening torque
Top cover mounting screw
and nut
166.7 to 196.1 N·m
17.0 to 20.0 kgf·m
123.0 to 144.0 lbf·ft
PTO gear case mounting
screw and nut
77.5 to 90.2 N·m
7.9 to 9.2 kgf·m
57.1 to 66.5 lbf·ft
(1) Top Cover Assembly (2) PTO Gear Case Assembly
(1) Roll Pin
(2) Ground PTO Lever
(3) Retainer Plate
(4) Arm
(5) O-ring
(6) Ground PTO Shift Fork
KiSC issued 07, 2012 A
