ELECTRICAL SYSTEM
M6040, M7040, WSM
9-M26
5. LIGHTING SYSTEM
[1] COMPONENTS

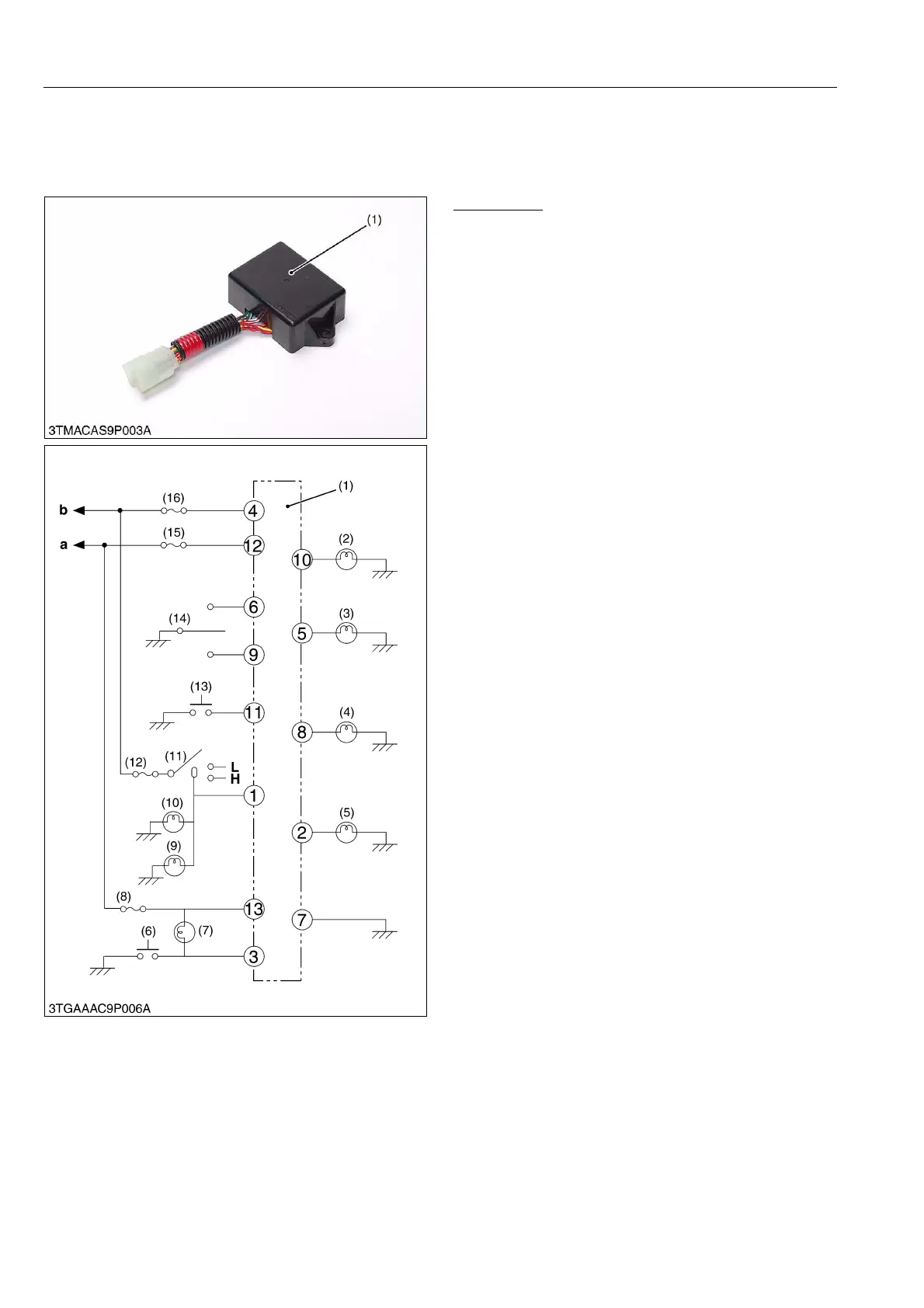

(1) Flasher Unit
Flasher Unit
The function of flasher unit is as follows.
1. The flasher unit blinks the turn signal light (3), (4) and
hazard indicator light (2) when the hazard switch (13)
is turned on.
2. Then flasher unit blinks the turn signal light (3) or (4),
when the turn signal switch (14) is turned clockwise
or counterclockwise.
3. The flasher unit lights the position light (5) when the
light switch (11) is turned on (Lo or Hi).
4. The flasher unit lights the position light (5) when the
position light switch (6) is turned on.
5. The blinking frequency is 60 to 120 times per
minutes.
9Y1210143ELM0030US0
(1) Flasher Unit
(2) Hazard Indicator Light
(3) Turn Signal Light (Right)
(4) Turn Signal Light (Left)
(5) Position Light
(6) Position Light Switch
(7) Position Indicator Light
(8) Fuse (10 A)
(9) Panel Illumination Light
(10) License Light
(11) Light Switch
(12) Fuse (15 A)
(13) Hazard Switch
(14) Turn Signal Switch
(15) Fuse (15 A)
(16) Fuse (10 A)
a: To Battery
b: To Key Switch AC Terminal
