wsm M7040 - Relays (ROPS Model); Starter Relay and Glow Relay

ELECTRICAL SYSTEM
M6040, M7040, WSM
9-S43

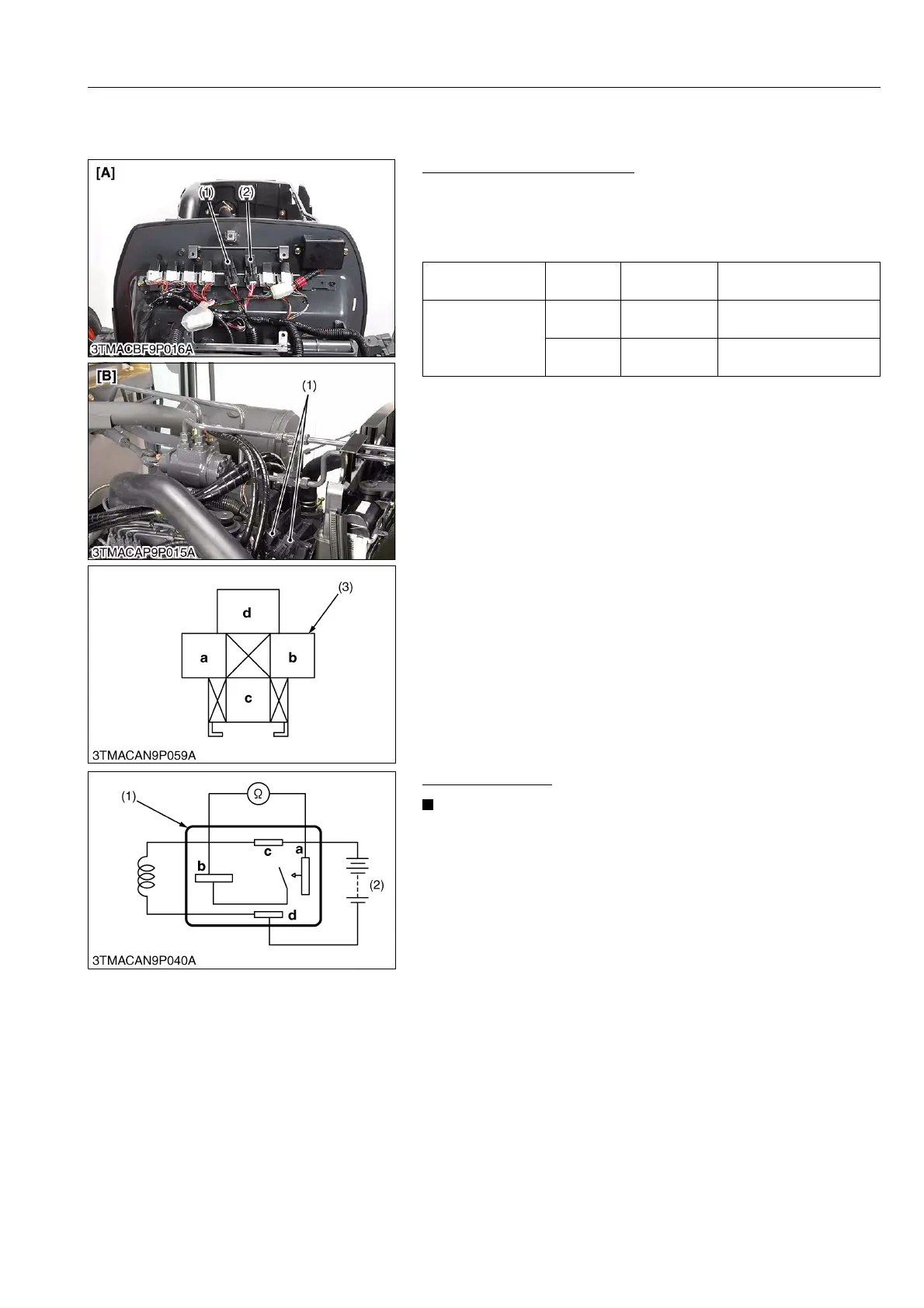

[9] RELAYS
(1) Starter Relay and Glow Relay
Checking Connector Voltage
1. Measure the voltage with a voltmeter across the battery terminal
and chassis as table below.
2. If the voltage differs from the battery voltage, the wiring harness
or fuse is faulty.
9Y1210143ELS0070US0
Functional Check
NOTE
• The relays described here are used same ones so that
these are interchangeable.
1. Apply battery voltage across the terminals c and d, and check
for continuity across the terminals a and b.
2. If continuity is not established across the terminals a and b,
replace it.
9Y1210143ELS0071US0
Starter relay
ROPS and
CABIN
Terminal d –
Chassis
Approx. battery voltage
Glow relay
ROPS
Terminal c –
Chassis
Approx. battery voltage
CABIN
Terminal d –
Chassis
Approx. battery voltage
(1) Starter Relay
(2) Glow Relay
(3) Connector (Wire Harness)
[A] ROPS Model
[B] CABIN Model
(1) Connector (Relay) (2) Battery
KiSC issued 07, 2012 A
