ELECTRICAL SYSTEM
M6040, M7040, WSM
9-S44
(2) Relays (ROPS Model)
Checking Connector Voltage
1. Measure the voltage with a voltmeter across the battery terminal
and chassis as table below.
2. If the voltage differs from the battery voltage, the wiring harness
or fuse is faulty.
• Be sure to use the 5 terminal type relay for the engine stop
relay (1).
• Other relays can use both 4 terminal type relay and 5
terminal relay.
• The color of the relay are black or green, both 4 terminal
type relay and 5 terminal type relay.
• The defogger rear and side are option.
9Y1210143ELS0072US0
(1)
Engine stop relay (main
switch at ON position)
Terminal c –
Chassis
Approx. battery voltage
(2)
PTO safety relay (main
switch at ON position
and PTO lever OFF
position)
Terminal c –
Chassis
Approx. battery voltage
(3)
Work light relay (front)
(main switch at OFF
position)
Terminal e –
Chassis
Approx. battery voltage
(4)
Key stop relay (main
switch at OFF position)
Terminal e –
Chassis
Approx. battery voltage
(5)
Head light relay (low)
(main switch at OFF
position)
Terminal d –
Chassis
Approx. battery voltage
(6)
Head light relay (high)
(main switch at OFF
position)
Terminal d –
Chassis
Approx. battery voltage

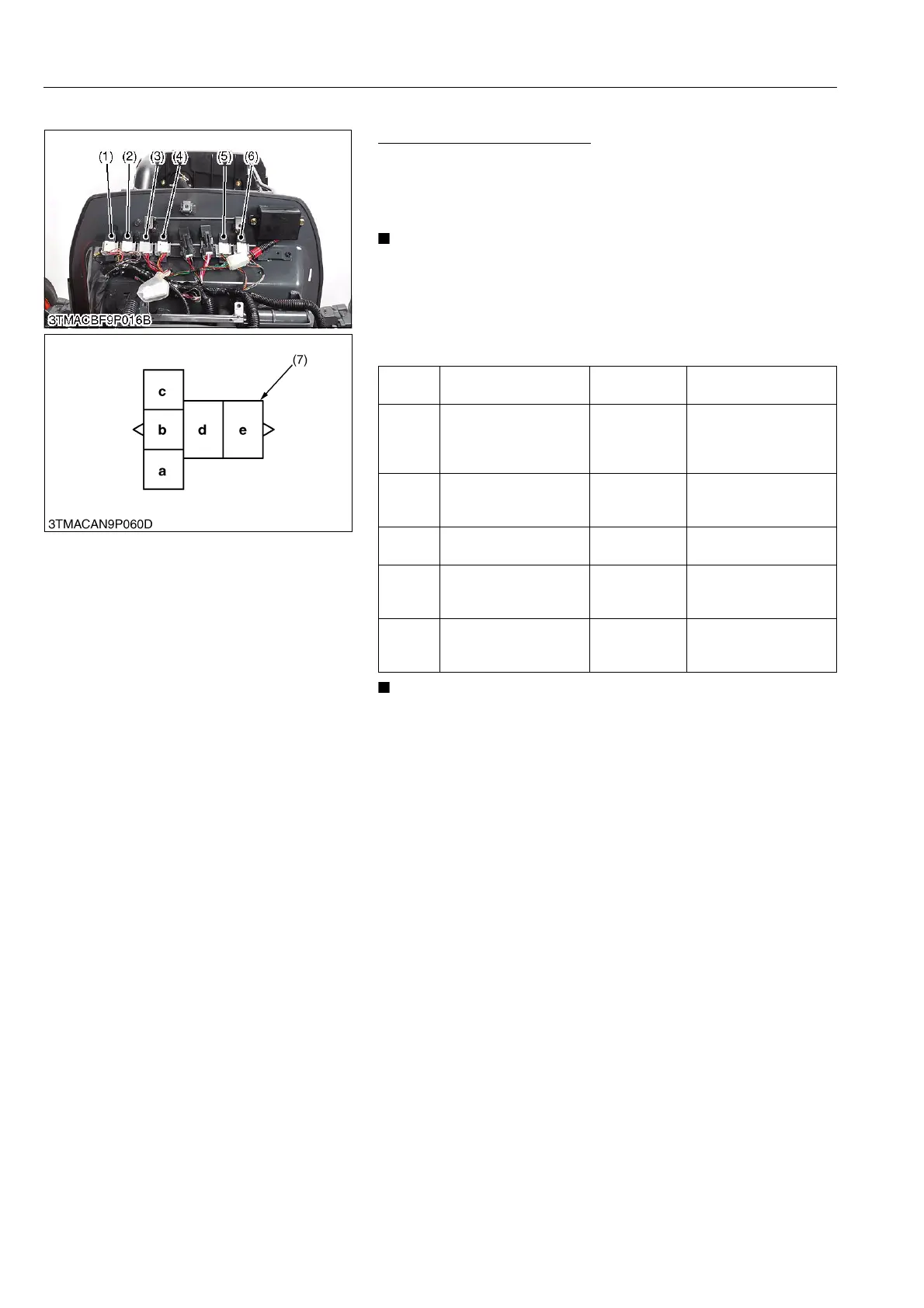

(1) Engine Stop Relay
(Green: 5 Terminals Type)
(2) PTO Safety Relay
(3) Work Light Relay (Front)
(4) Key Stop Relay
(5) Head Light Relay (Low)
(6) Head Light Relay (High)
(7) Connector (Wire Harness)
To Next Page
