wsm M7040 - Main Gear Shift Section

TRANSMISSION
M6040, M7040, WSM
3-M12

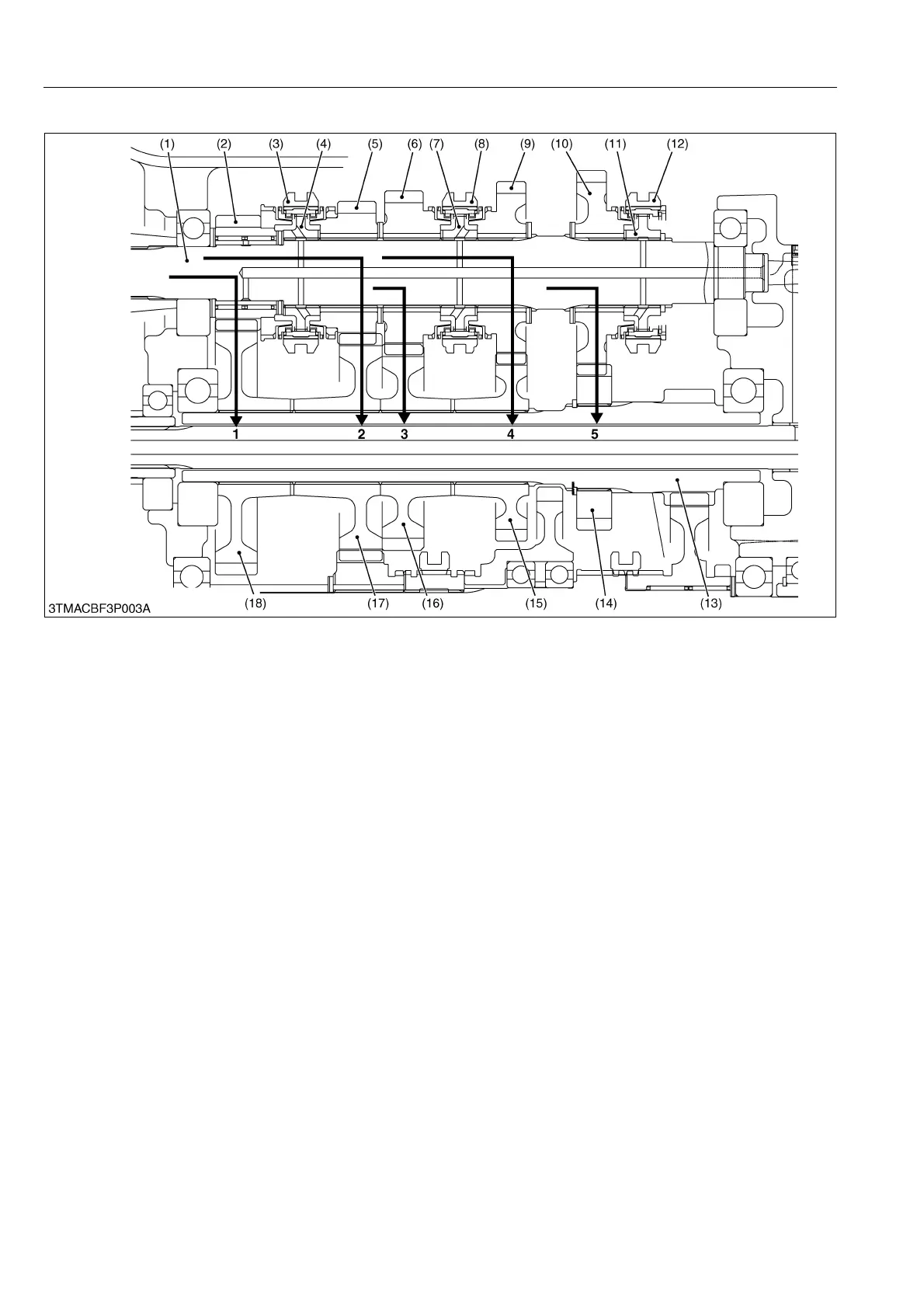

[3] MAIN GEAR SHIFT SECTION
 1st Speed
1st Shaft (1) → Coupling (4) → Shifter (3) → 19T Gear (2) → 46T Gear (18) → 2nd Shaft (13).
 2st Speed
1st Shaft (1) → Coupling (4) → Shifter (3) → 24T Gear (5) → 41T Gear (17) → 2nd Shaft (13).
 3st Speed
1st Shaft (1) → Coupling (7) → Shifter (8) → 28T Gear (6) → 37T Gear (16) → 2nd Shaft (13).
 4th Speed
1st Shaft (1) → Coupling (7) → Shifter (8) → 32T Gear (9) → 33T Gear (15) → 2nd Shaft (13).
 5th Speed
1st Shaft (1) → Coupling (11) → Shifter (12) → 37T Gear (10) → 29T Gear (14) → 2nd Shaft (13).
9Y1210143TRM0012US0
(1) 1st Shaft
(2) 19T Gear
(3) Shifter
(4) Coupling
(5) 24T Gear
(6) 28T Gear
(7) Coupling
(8) Shifter
(9) 32T Gear
(10) 37T Gear
(11) Coupling
(12) Shifter
(13) 2nd Shaft
(14) 29T Gear
(15) 33T Gear
(16) 37T Gear
(17) 41T Gear
(18) 46T Gear
KiSC issued 07, 2012 A
