wsm M7040 - Removing Differential Gear and Bevel Pinion Shaft

TRANSMISSION
M6040, M7040, WSM
3-S45

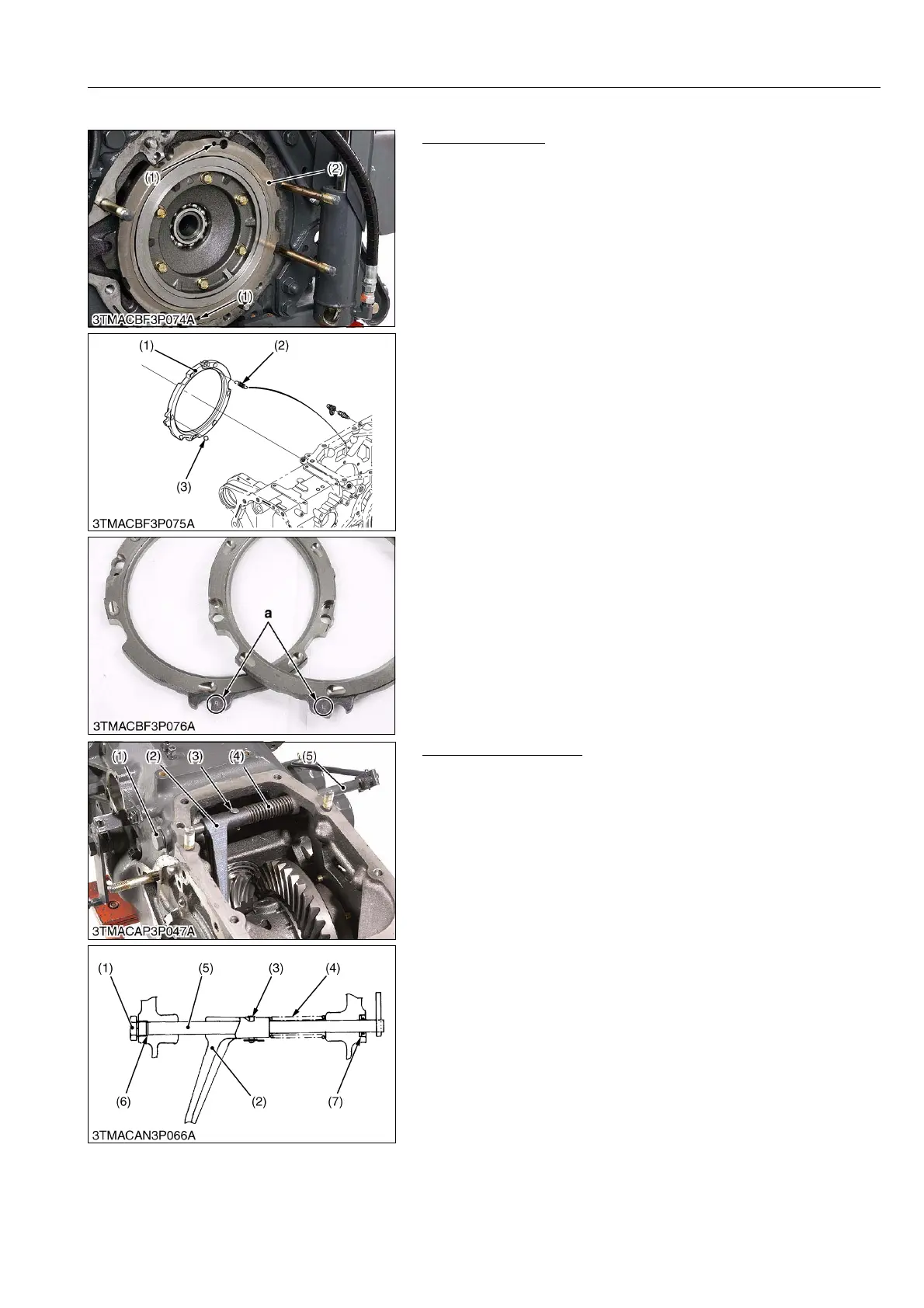

(5) Removing Differential Gear and Bevel Pinion Shaft
Brake Cam Plate
1. Remove the return spring (1).
2. Remove the brake cam plate (2).
(When reassembling)
• Apply grease to the brake ball seats. (Do not apply excessively.)
• Be sure to assemble the brake cam plate (2) to the original side,
refer to the I.D. mark R and L.
9Y1210143TRS0075US0
Differential Lock Fork
1. Remove the clevis pin (3) and plug (1).
2. Draw out the differential lock shaft (5).
3. Take out the differential lock shift fork (2) and spring (4).
(When reassembling)
• Apply grease to the oil seal.
9Y1210143TRS0076US0
(1) Return Spring
(2) Brake Cam Plate
(3) Ball
a: I.D. Mark
(1) Plug
(2) Differential Lock Shift Fork
(3) Clevis Pin
(4) Spring
(5) Differential Lock Shaft
(6) Shim
(7) Oil Seal
KiSC issued 07, 2012 A
